Overview

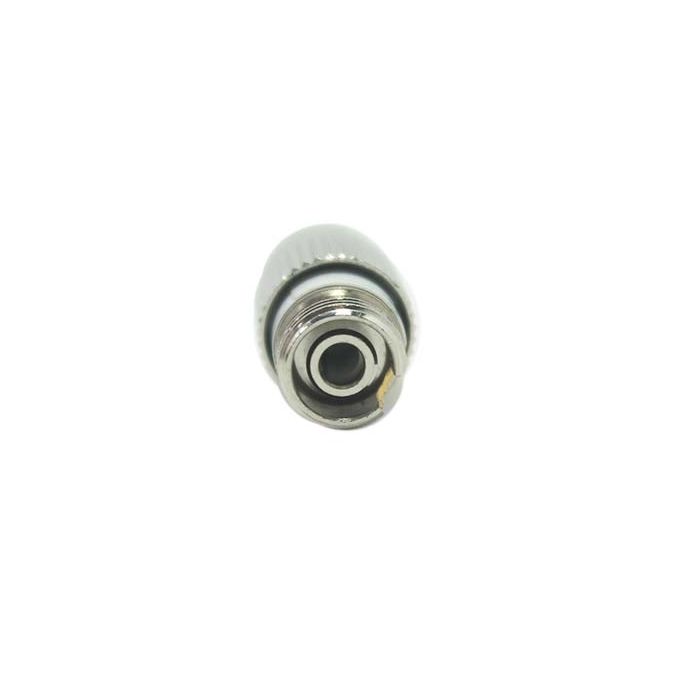

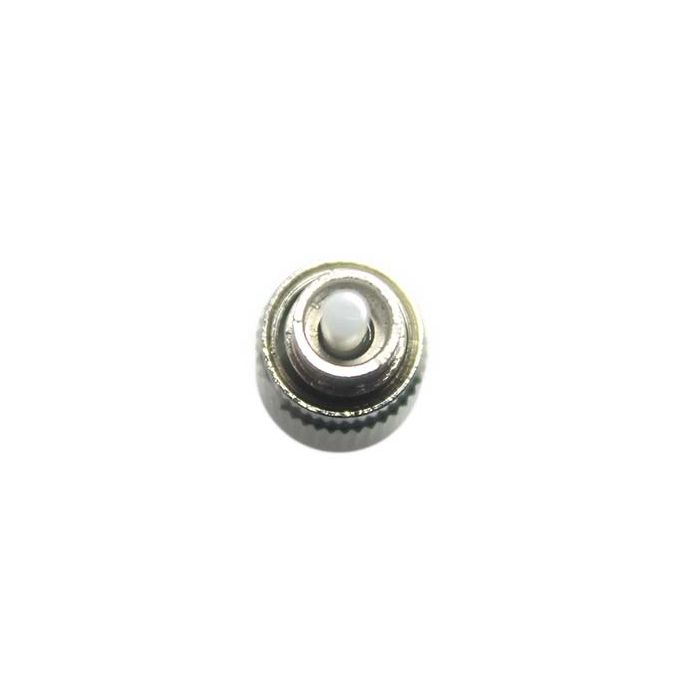

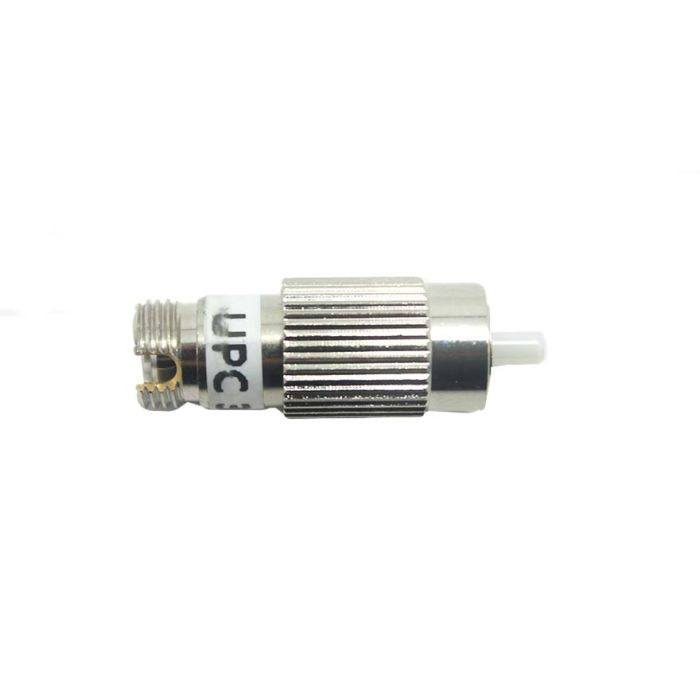

The FC/UPC Male-to-Female Attenuator is a precision fiber optic component designed to reduce optical signal power levels in singlemode network applications. Featuring a male-to-female connector configuration, this device allows for direct integration into existing fiber runs or patch panels, serving as a build-out attenuator for signal equalization and system balancing.
Constructed with integrated doped fiber, this attenuator provides stable performance across both 1310nm and 1550nm operating wavelengths. Its compact design is ideal for telecommunications, data centers, and fiber-to-the-x (FTTX) installations where accurate power management is required to prevent receiver saturation.
Key Features
-
Doped Fiber Technology
Utilizes specialized doped fiber to ensure accurate and stable attenuation of optical signals. -
Dual Wavelength Compatibility
Engineered to operate effectively at both 1310nm and 1550nm wavelengths. -
Male-to-Female Interface
Allows for seamless, direct connection to standard FC/UPC hardware. -
Precision Signal Control
Enables precise adjustment of link power budgets to protect sensitive receiver equipment. -
Compact Build-Out Design
Provides a space-efficient method to introduce attenuation without requiring additional patching. -
Standardized FC/UPC Polish
Features high-quality UPC polish to minimize back-reflection and maintain signal integrity.
Applications
- Telecommunications infrastructure
- Data center signal leveling
- Fiber-to-the-X (FTTX) deployments
- Optical network power balancing
- Testing and laboratory research
Technical Specifications
| Specification | Value |
|---|---|
| Connector Type | FC/UPC Male-to-Female |
| Fiber Mode | Singlemode |
| Operating Wavelength | 1310nm / 1550nm |
| Attenuation Value | 1dB |
Frequently Asked Questions
What is the primary function of this attenuator?
This device is used to reduce the intensity of an optical signal in a fiber optic link to prevent the overloading of a receiver.
Is this compatible with multimode fiber?
No, this is specifically designed for singlemode fiber optic systems.
Can I use this for both 1310nm and 1550nm networks?
Yes, it is designed for consistent performance across both of these common operating wavelengths.
What does the Male-to-Female configuration mean?
The attenuator has one male FC connector to plug directly into a bulkhead or adapter, and one female FC port to receive a patch cable.
Are other attenuation values available?
Yes, fixed attenuation values are available in 1dB increments from 1dB to 20dB.
