Fast Ethernet WDM BiDi single strand fiber media converter, SC 80Km B type
Move your mouse over image or click to enlarge

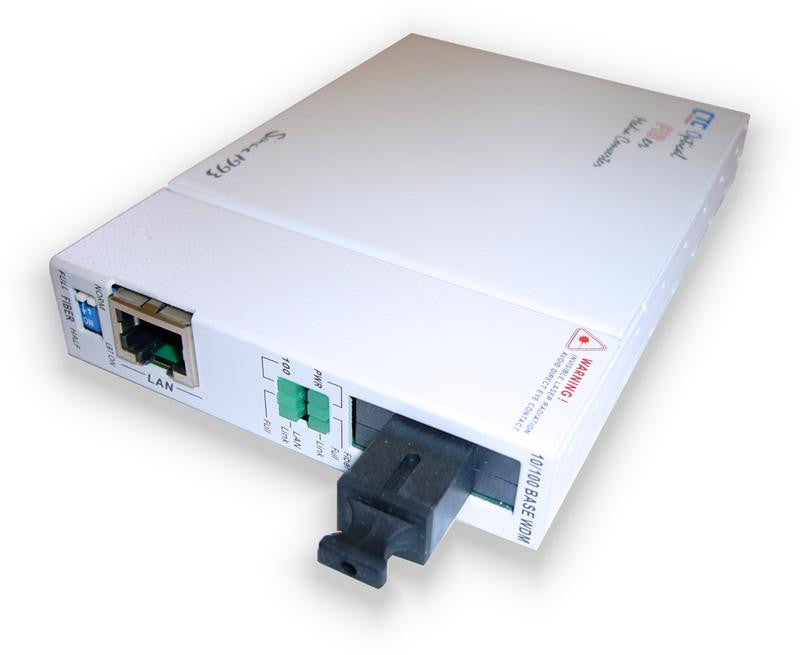

Fast Ethernet WDM BiDi single strand fiber media converter, SC 80Km B type

CTC Union Part No.: FIB1-10-100W-SC80BF

  • $ 500.00 or

Product description

FIB1-10-100W-SC80BF is a single-strand Bi-Directional Fast Ethernet fiber optic media converter with SNMP management support. Currently, media converter can be ordered with SC type of fiber optic connector. ST or FC optical connectors are available on demand.

FIB1-10-100W-SC80BF is a single strand, Tx:1550nm/Rx:1310nm fiber media converter, with link speed auto-negotiation 10/100 and MDI/MDI-X features for the Fast Ethernet RJ45 UTP interface. The equipment supports link-loss forwarding function (LLF), loopback test and remote monitoring. Used with the compatibleFRM301fiber optic chassis the media converter also support SNMP management and GUI applications.

The uniqueness of FIB1 series is given by the ability to convert from standalone media converters to cards for FRM301 chassis, in matter of minutes. In an always changing and growing networking environment, such a versatile feature allows network operators to switch to higher density and aggregation hubs without the need to purchase new fiber optic converters.

This simple, but so reliable idea, made the FIB1 series media converters the most chosen line of media converters by data carriers and service providers.

Technical specifications

Interfaces: RJ45 copper IEEE 802.3 10Base-T, 802.3u 100Base-TX compliant and SC, 100Base-FX compliant
Operating wavelength: Tx:1550/Rx:1310nm single strand Bi-Directional
Operating distance: up to 80Km on 9/125um fiber
Optical connector: single SC type
Front LEDs: PWR, LLF, Fiber Link, TP Link, Duplex, Speed
Power: External 90-260V AC switching adapter 12VDC@1A with NEMA1-15(2 blades only), US type main plug
Temperature: 0 5°C (Operating); 0 7°C (Storage)
Humidity: 20 80% non condensing (Operating); 0 90% (Storage)
Consumption: less than 4W
Dimensions(WxDxH): 85.6mm x 122.6mm x 20mm
Weight: 340g (without AC adapter)
Compliance: CE, FCC Class A
MTBF: 65,000 hours

Fiber power budget according to available single strand Bi-Directional WDM models

Model Distance Lambda Min. Output (dBm) Sensitivity (dBm) Power Budget (dB)
FIB1-10/100W-SC20AF 20Km Tx:1310nm Rx:1550nm -15 -32 17
FIB1-10/100W-SC20BF 20Km Tx:1550nm Rx:1310nm -18 -32 14
FIB1-10/100W-SC40AF 40Km Tx:1310nm Rx:1550nm -7 -32 25
FIB1-10/100W-SC40BF 40Km Tx:1550nm Rx:1310nm -8 -32 24
FIB1-10/100W-SC60AF 60Km Tx:1310nm Rx:1550nm -5 -34 29
FIB1-10/100W-SC60BF 60Km Tx:1550nm Rx:1310nm -5 -34 29
FIB1-10/100W-SC80AF 80Km Tx:1310nm Rx:1550nm -2 -34 32
FIB1-10/100W-SC80BF 80Km Tx:1550nm Rx:1310nm -2 -34 32

Product Sheet:
