Overview

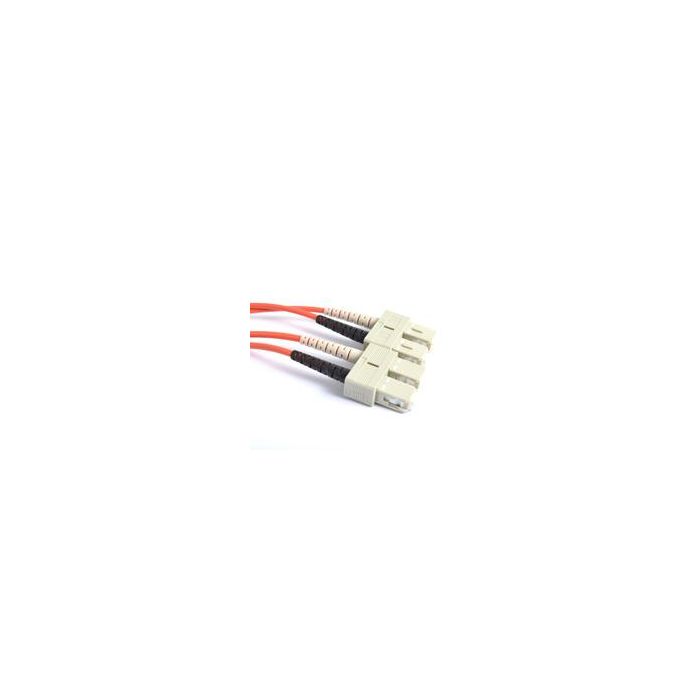

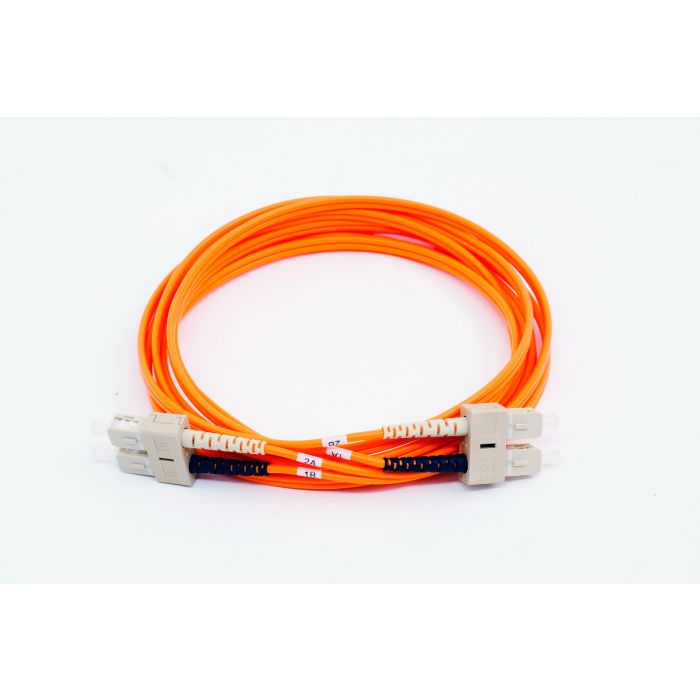

This duplex fiber optic patch cable is designed for reliable data transmission in multimode network environments. Featuring 62.5/125um multimode fiber with a 3mm jacket, it is engineered for consistent performance in standard data center and premise networking applications.
Each assembly is terminated with high-quality SC PC connectors equipped with polished ceramic ferrules. The use of ceramic ferrules provides superior durability and precision alignment compared to lower-cost composite alternatives, ensuring a stable connection and reduced signal degradation.
Key Features
-
Ceramic Ferrules
Features precision polished ceramic ferrules that offer greater durability and connection stability than standard composite materials. -
Low Insertion Loss
Engineered for a maximum insertion loss of 0.4dB, supporting efficient signal transmission across the link. -
Back Reflection Control
Maintains a back reflection rating of -25dB to minimize signal noise in the optical system. -
Duplex Configuration
Uses a 3mm duplex cable design, ideal for standard transmit/receive applications. -
Standardized Multimode Fiber
Utilizes 62.5/125um core/cladding geometry for compatibility with standard multimode network equipment. -
Industrial Reliability
Manufactured to meet or exceed current fiber optic industry standards for consistent field performance.
Applications
- Data Center Interconnects
- Premise Networking
- Network Patching
- Local Area Networks (LAN)
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | D2YYM2FISC |
| Fiber Type | Multimode (62.5/125um) |
| Cable Type | Duplex |
| Cable Diameter | 3mm |
| Cable Length | 2 Meters |
| Connector A | SC PC |
| Connector B | SC PC |
| Insertion Loss | 0.4dB (Typical) |
| Back Reflection | -25dB |
| Jacket Color | Orange |
Frequently Asked Questions
What type of ferrule is used in these connectors?
These cables feature polished ceramic ferrules, which provide higher durability and more consistent performance than composite ferrules.
Is this cable compatible with 50/125um fiber?
No, this is a 62.5/125um multimode cable and should not be used with 50/125um fiber as it may cause significant signal loss.
What is the maximum insertion loss?
The maximum insertion loss is rated at 0.4dB.
Can I order this cable in different lengths?
Yes, custom fiber optic cable assemblies are available in various lengths upon request.
Does this cable include a jacket?
Yes, it is a 3mm duplex cable.
