Overview

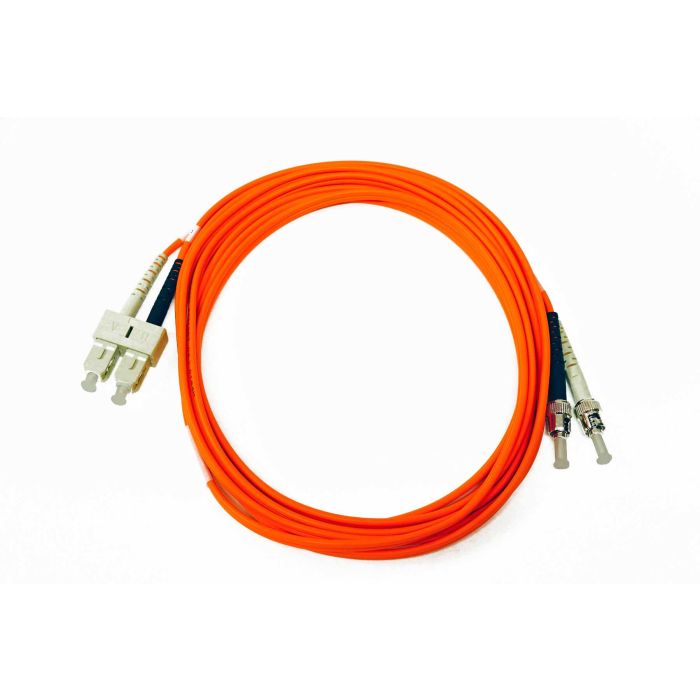

This duplex fiber optic patch cable features 62.5/125µm multimode fiber, specifically integrated with Corning® InfiniCor®300 glass for reliable network performance. Designed for indoor data communication environments, this cable is built to maintain signal integrity in standard local area network (LAN) and premise cabling applications.
The assembly is engineered for durability, utilizing precision-polished ceramic ferrules instead of standard composite alternatives. This construction provides stable connectivity, characterized by consistent insertion loss and back reflection performance, making it an ideal choice for connecting active equipment in data centers, server rooms, and telecommunications closets.
Key Features
-
Ceramic Ferrules
Features high-quality polished ceramic ferrules for improved durability and stable optical alignment compared to composite versions. -
Corning® InfiniCor®300 Fiber
Utilizes high-performance multimode glass to ensure data transmission consistency. -
Precision Machine Polish
Ensures consistent connector end-face geometry for reliable, repeatable performance. -
Low Insertion Loss
Maintains a maximum of 0.4dB typical loss to minimize signal degradation across the link. -
Optimized Back Reflection
Provides -25dB back reflection for effective signal management in multimode environments. -
3mm Duplex Construction
Robust 3mm outer diameter cable design provides physical protection for the internal fiber strands.
Applications
- Local Area Networks (LAN)
- Data Center Interconnects
- Premise Cabling
- Telecommunications Equipment Patching
- Equipment Room Connectivity
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | D28YM10FISC |
| Fiber Type | 62.5/125µm Multimode |
| Connector A | ST PC |
| Connector B | SC PC |
| Cable Length | 10 Meters |
| Cable Diameter | 3mm |
| Configuration | Duplex |
| Typical Insertion Loss | 0.4dB |
| Back Reflection | -25dB |
| Jacket Color | Orange |
Frequently Asked Questions
What does 62.5/125µm mean?
This refers to the diameter of the fiber core (62.5 microns) and the cladding (125 microns), which is the standard size for legacy multimode fiber systems.
Are the connectors ceramic or composite?
These cables utilize ceramic ferrules, which are more durable and provide more stable alignment than lower-cost composite ferrules.
Can I order this in a different length?
Yes, custom fiber optic cable assemblies can be provided in various lengths and connector combinations upon request.
Is this suitable for outdoor use?
This cable is intended for indoor applications; for outdoor or harsh environments, specifically rated outdoor cabling is recommended.
What is the maximum insertion loss for this cable?
The cable is specified with a typical insertion loss of 0.4dB.
