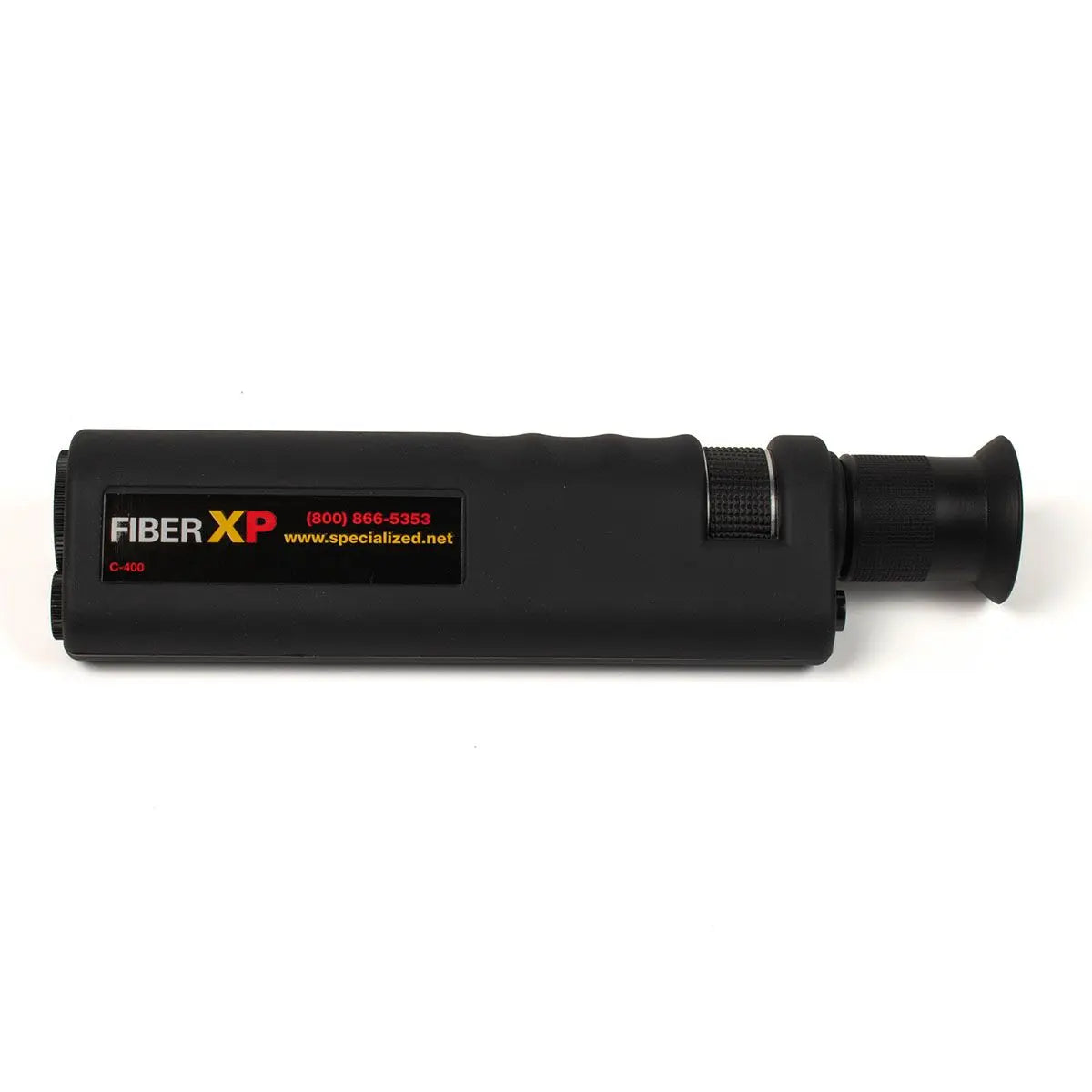

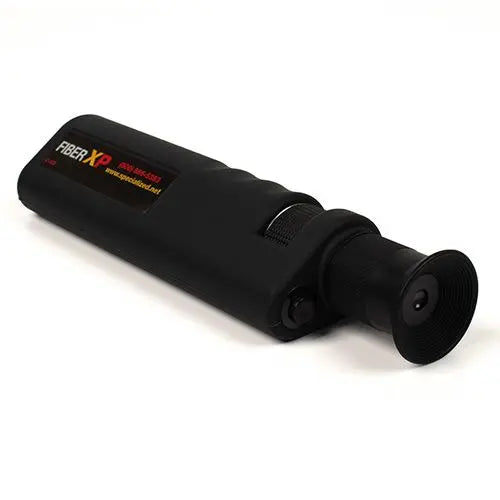

FiberXP C-400 Fiber Optic Inspection Scope / Microscope, 400X

Overview

The FiberXP C-400 is a handheld fiber optic inspection microscope providing 400X magnification, designed for field technicians to verify the condition of fiber optic end-faces. Its primary purpose is the detection of surface scratches, pits, or contaminants that negatively impact signal transmission and connection performance.

Engineered for rugged field environments, the C-400 features coaxial illumination for a clear, high-contrast view of the ferrule. It is specifically compatible with 2.5mm ferrules commonly found on FC, SC, and ST connectors. The unit includes an integrated infrared density filter to safeguard the user's eyes when inspecting active fibers in the 800nm to 1700nm wavelength range.

Key Features

• 400X Magnification
  Provides high-detail imaging necessary for identifying microscopic defects and debris on fiber end-faces.
• Coaxial Illumination
  Directs light along the fiber axis to highlight fine scratches, providing superior clarity compared to side-lighting.
• 475-Micron Field of View
  Allows technicians to view a significant portion of the fiber ferrule at once for faster inspections.

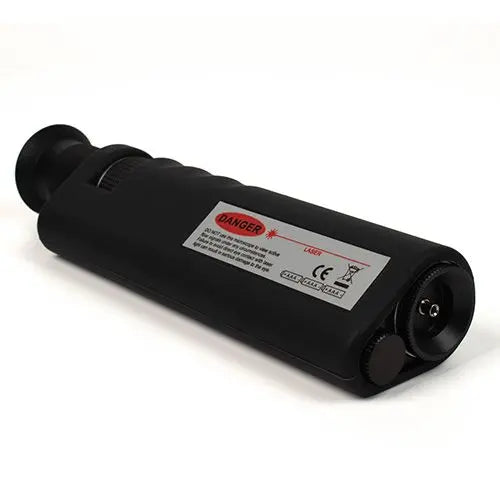

• Integrated Infrared Filter
  Filters 800nm~1700nm wavelengths to mitigate potential eye exposure during the inspection of active systems.
• 2.5mm Connector Compatibility
  Specifically designed to interface with common industry-standard FC, SC, and ST connector types.
• Ruggedized Build
  Constructed to withstand the demands of frequent use in field fiber optic service environments.

Applications

• Field inspection of fiber optic patch cords
• Network maintenance and troubleshooting
• Verification of connector cleanliness before fusion splicing or mating
• Inspection of installed fiber infrastructure

Technical Specifications

Frequently Asked Questions

Is this scope compatible with LC connectors?
No, the C-400 is designed for 2.5mm ferrules (FC, SC, ST). An adapter would be required for 1.25mm connectors, which is not included.

Does this microscope display digital images on a screen?
No, this is an optical microscope where the technician views the fiber end-face through an eyepiece.

Are batteries included?
No, the unit requires 3 AAA batteries which must be supplied separately.

Can I use this on live fiber?
Yes, it includes an integrated infrared density filter to protect your eyes from active light, but standard safety procedures for handling fiber should always be followed.

Is this a TAA-compliant device?
No, this model is listed as non-TAA compliant for GSA procurement purposes.
