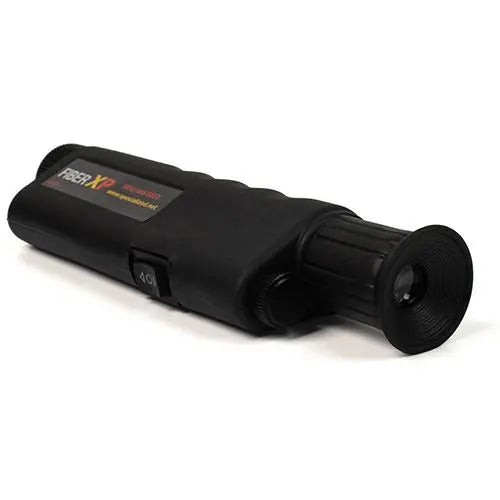

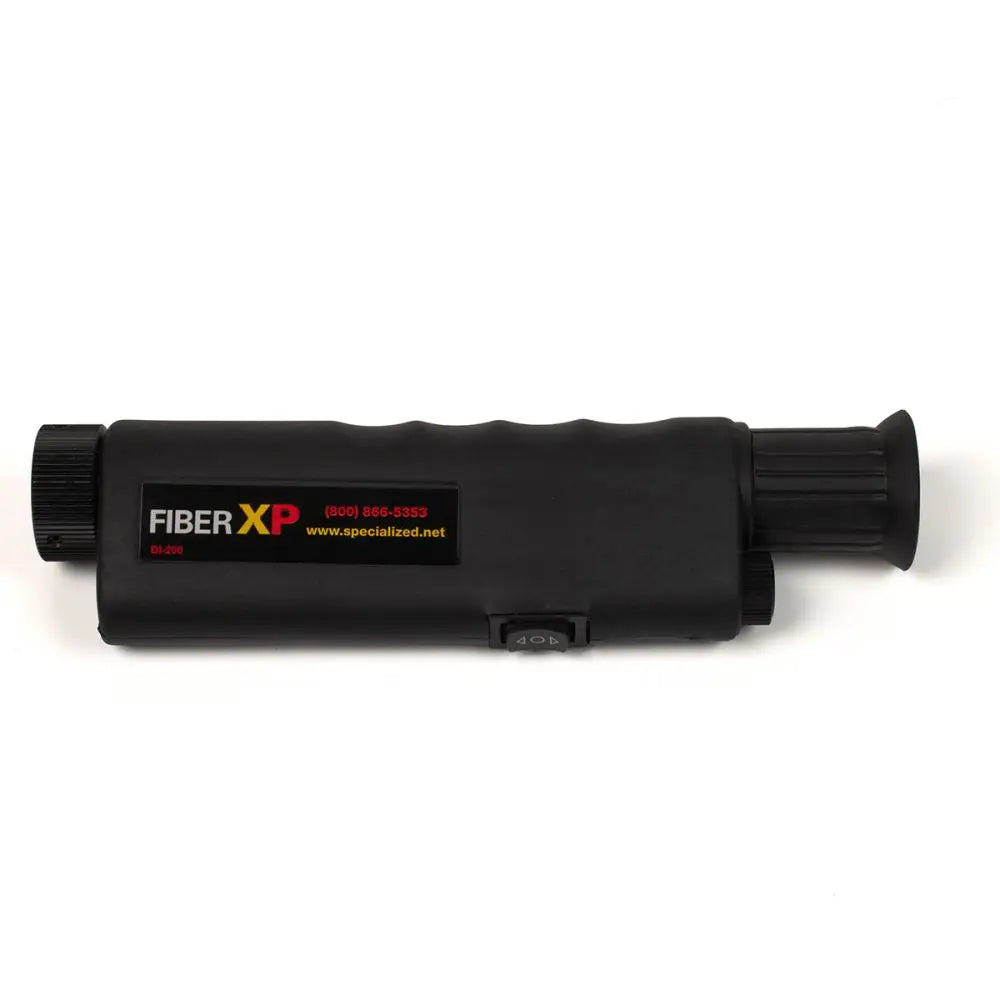

The FiberXP DI-200 Fiber Inspection Microscope is an essential tool for fiber technicians and network engineers tasked with verifying the integrity of optical fiber end faces. Designed for the inspection of 2.5mm fiber patch cords, including ST, SC, and FC connectors, this microscope provides clear 200X optical magnification to identify potential signal degradation issues.
This rugged, handheld unit features dual-illumination capabilities. The standard coaxial illumination mode allows users to clearly view end-face contamination or surface scratches. The secondary oblique illumination mode directs light at an angle, which is highly effective for detecting contamination specifically on the fiber core. The scope includes an integrated infrared density filter for wavelengths between 800nm and 1700nm to provide user protection during live fiber inspection.
Key Features
-
200X Magnification
Delivers high-clarity optical zoom to facilitate detailed inspection of fiber end faces. -
Dual-Illumination System
Equipped with both coaxial and oblique LED light sources for versatile defect detection. -
Coaxial Illumination
Provides standard lighting for identifying general contamination and surface scratches on connectors. -
Oblique Illumination
Angled light path specifically designed to highlight core contamination. -
Integrated Safety Filter
Includes a built-in infrared filter to protect the user against 800nm–1700nm wavelengths. -
Rugged Construction
Designed for durable, field-ready operation in demanding network environments. -
2.5mm Compatibility
Optimized for testing common connector types including ST, SC, and FC.
Applications
- Fiber optic network maintenance and troubleshooting
- End-face inspection of ST, SC, and FC patch cables
- Data center cabling infrastructure verification
- Quality assurance for fiber optic termination
Technical Specifications
| Specification | Value |
|---|---|
| Model | DI-200 |
| Part Number | 907X120 |
| Magnification | 200X |
| Compatibility | 2.5mm (ST, SC, FC) |
| Illumination | Dual-LED (Coaxial and Oblique) |
| Safety Filter | 800nm – 1700nm |
Frequently Asked Questions
What is the primary magnification of this scope?
The DI-200 provides 200X optical magnification.
What connector types can I inspect with this tool?
It is designed for 2.5mm ferrule connectors, specifically ST, SC, and FC types.
What is the purpose of the oblique illumination?
The oblique illumination hits the fiber at an angle, making it easier to see contamination specifically located on the fiber core.
Does this scope protect against laser radiation?
Yes, it includes an integrated infrared density filter for wavelengths between 800nm and 1700nm to help prevent accidental eye damage.
Is the scope suitable for field use?
Yes, it features a rugged design intended for professional field service environments.
