Overview

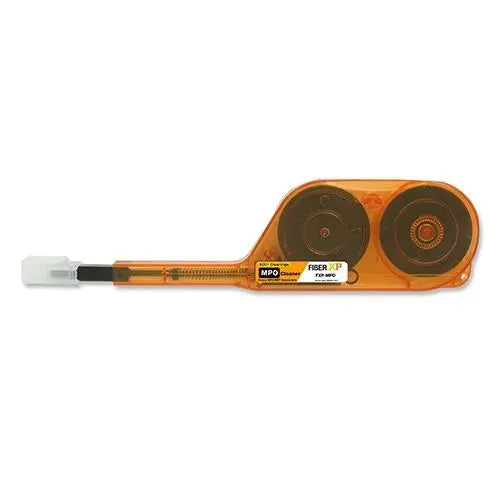

The FiberXP FXP-MPO is a professional-grade one-push cleaning tool designed specifically for MPO and MTP optical connector end-faces. Its primary purpose is to efficiently remove dust, oil, and other debris that can compromise signal integrity in high-density fiber networks.
This tool features a user-friendly, single-action cleaning system that simultaneously cleans the connector face and advances the integrated cleaning tape. Designed for versatility, it supports both multimode (flat) and single mode (angled) applications, as well as both male and female MT ferrules. The device includes an alignment cap that opens to allow for the cleaning of unmated cable assemblies, making it a highly effective solution for data center operators and fiber technicians.
Key Features
-
One-Push Cleaning System
Allows for rapid, simple connector cleaning, significantly reducing maintenance time. -
Universal Compatibility
Supports both multimode (flat) and single mode (angled) MPO/MTP connectors. -
Ferrule Versatility
Designed to clean both male and female MT ferrule types effectively. -
Integrated Cleaning Tape
Automatically advances fresh tape with each use, ensuring a clean surface for every operation. -
Extended Capacity
Provides over 600 cleaning cycles per unit for long-term field use. -
Unmated Cleaning Capability
Features an adjustable alignment cap to accommodate both mated and unmated cable assemblies.
Applications
- Data center high-density optical patching
- MPO/MTP connector inspection and maintenance
- Fiber optic network installation and troubleshooting
- Central office and enterprise network infrastructure
Technical Specifications
| Specification | Value |
|---|---|
| Model | FXP-MPO |
| Part Number | 682X983 |
| Cleaning Cycles | 600+ |
| Compatibility | MPO, MTP, Multimode (Flat), Single Mode (Angled) |
Frequently Asked Questions
Does this tool work on both male and female connectors?
Yes, it is designed to work with both male (with guide pins) and female (without guide pins) MT ferrules.
Can I use this for both angled and flat connectors?
Yes, the cleaner is compatible with both multimode flat and single mode angled MPO/MTP connectors.
How many cleanings does one unit provide?
The tool is rated for over 600 cleanings per unit.
Can I clean a cable that is not currently plugged into a device?
Yes, the alignment cap opens to facilitate the cleaning of unmated cable assemblies.
Is the cleaning tape replaceable?
This is a one-push, disposable cleaning tool designed to be used until the cleaning tape is exhausted.
