Overview

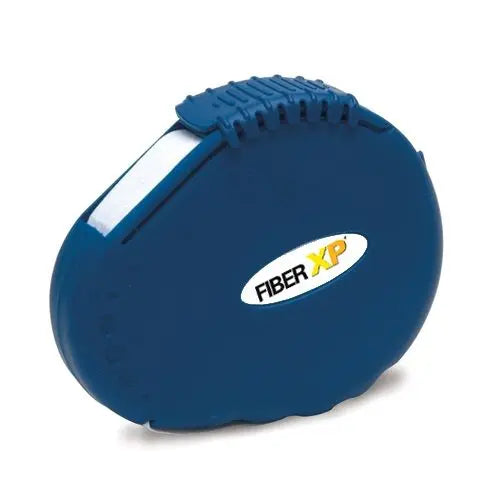

The FiberXP UCC-700 is a hand-held fiber optic connector cleaner designed to provide effective contamination removal without the need for solvents or alcohol. This tool is intended for use in field and data center environments to maintain signal integrity by removing dust, grease, oil, and other debris from optical connector end faces.
The unit features a high-grade, lint-free cleaning fabric housed in a lightweight cartridge. A resilient rubber pad beneath the cleaning surface provides necessary support during the cleaning process, helping to prevent scratches to the delicate ferrule. When not in use, the integral sliding cover protects the cleaning media from environmental contamination.
Key Features
-
Solvent-Free Operation
Eliminates the requirement for liquid cleaners or alcohol, simplifying the cleaning process and reducing chemical exposure. -
Lint-Free Cleaning Media
Uses cleanroom-grade material to ensure no fibers or particles are left behind on the connector end face. -
Resilient Cleaning Pad
Incorporates a soft rubber pad under the cleaning cloth to minimize the risk of scratches or damage to the ferrule. -
Protective Sliding Cover
Features a cover that protects the cleaning cloth from dust and debris when the device is not in use. -
Compact Design
The lightweight, portable cartridge is easy to handle and stores conveniently in standard technician tool kits. -
Efficient Tape Advance
Allows for cleaning multiple connections by advancing the tape to access fresh cleaning material as needed.
Applications
- Data center maintenance
- Fiber optic patch panel cleaning
- Field termination and inspection
- Telecommunications network installation
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | FiberXP |
| Model | UCC-700 |
| Part Number | 721X184 |
| Media Length | 20 Feet |
| Dimensions | 4.5" x 2.5" x 1" |
Frequently Asked Questions
Does this cleaner require solvent?
No, the UCC-700 is designed for dry cleaning and does not require the use of solvents or alcohol.
Can this be used on all connector types?
The tool is designed as a universal cleaner for most common fiber optic connector end faces.
How many cleans does one tape provide?
The cartridge contains 20 feet of cleaning tape. The frequency of tape advancement depends on the condition of the connector being cleaned.
What should I do if the connector is still dirty?
Inspect the end face after cleaning; if debris remains, repeat the cleaning process with a fresh section of the cleaning cloth.
Is the cleaning material lint-free?
Yes, it utilizes cleanroom-grade, lint-free material designed specifically for optical applications.
