Overview

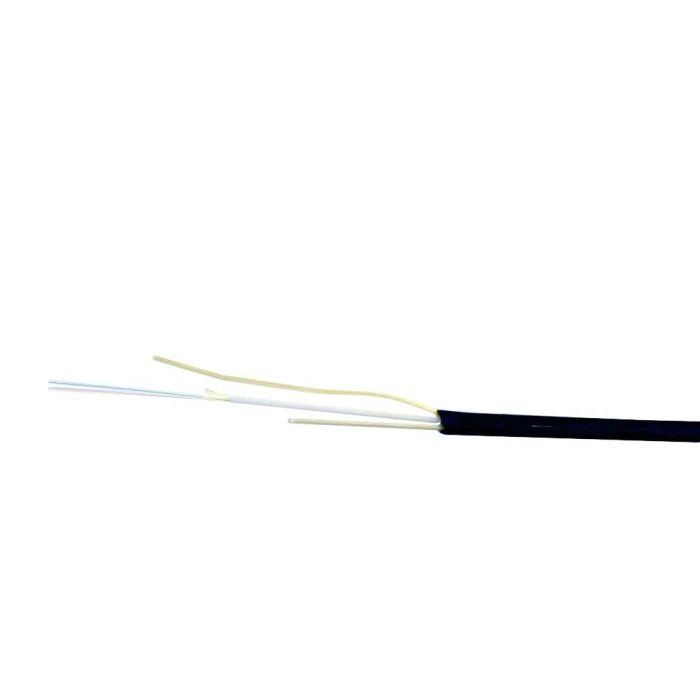

The 12-fiber toneable flat drop cable is designed for fiber-to-the-premise (FTTP) applications, providing a flexible and reliable last-mile connection. The cable features a compact, durable construction that incorporates two dielectric rigid rods for tensile and crush protection, ensuring the safety of the optical fibers during and after installation.
This cable utilizes a dry loose tube design, which eliminates the need for messy gels and simplifies field termination. An integrated 24 AWG toneable element allows for easy locating of the cable path after burial, making it an efficient choice for network contractors and installers. The durable black polyethylene jacket is suitable for various environments, protecting the internal components from external damage.
Key Features
-
Toneable Construction
Features a 24 AWG toneable element, allowing for efficient cable location after installation. -
Dry Loose Tube Design
Uses gel-free construction to simplify termination processes and reduce installation time. -
Fiber Protection
Two dielectric rigid rods provide enhanced tensile strength and crush resistance during deployment. -
Compact Profile
Small form factor allows for easier handling and improved access to small conduit systems. -
Last-Mile Connectivity
Optimized for fiber-to-the-premise (FTTP) architectures for the final 100 meters. -
Durable Jacket
Black polyethylene outer jacket provides environmental protection for long-term reliability.
Applications
- Fiber-to-the-Premise (FTTP)
- Last-mile network drops
- Small conduit installations
- Direct buried or aerial network extensions
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 12 |
| Fiber Type | Singlemode (G.657.A1) |
| Core Diameter | 8.2 µm |
| Cladding Diameter | 125 ±0.7 µm |
| Coating Diameter | 242 ±0.5 µm |
| Mode Field Diameter | 9.2 ±0.4 µm (1310nm); 10.4 ±0.5 µm (1550nm) |
| Cable Cutoff Wavelength | ≤1260 nm |
| Attenuation (1310nm) | ≤0.32 dB/km |
| Attenuation (1550nm) | ≤0.18 dB/km |
| Toneable Conductor | 24 AWG |
| Jacket Material | Polyethylene |
Frequently Asked Questions
What is the primary use for this cable?
This cable is specifically designed for FTTP (Fiber-to-the-Premise) last-mile installations.
Can the cable be located after installation?
Yes, it includes a 24 AWG toneable conductor for location purposes.
Is this cable gel-filled?
No, it utilizes a dry loose tube design.
What fiber standard does this cable meet?
It is compliant with G.657.A1 singlemode standards.
What protection is provided for the fibers?
The cable includes two dielectric rigid rods for tensile and crush protection.
