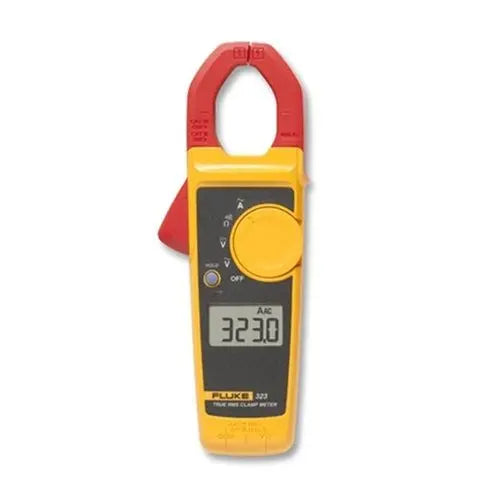

Fluke 323 True-RMS AC Clamp Meter, 400A
Overview
The Fluke 323 True-RMS Clamp Meter is a handheld test instrument designed for general-purpose electrical troubleshooting. It enables measurements of AC current in conductors and provides functionality for measuring AC voltage and resistance in residential and commercial electrical systems.
Key Features
- True-RMS Measurement: Provides accurate readings of voltage and current when measuring non-linear electrical signals.

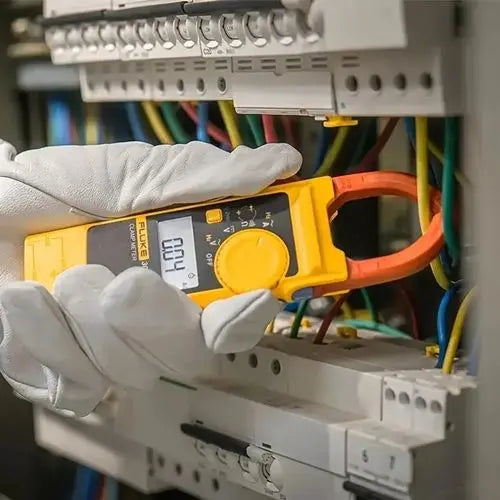

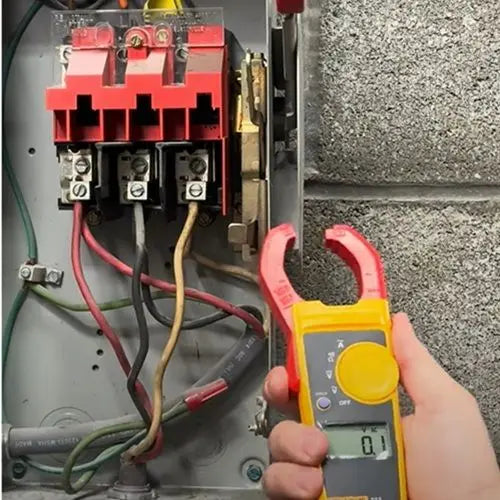

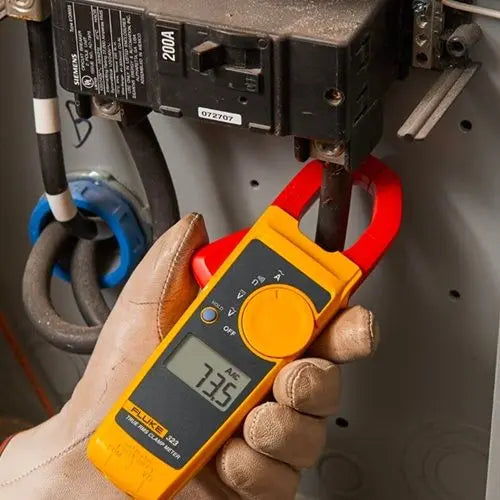

- 400A AC Current Capacity: Allows for direct measurement of electrical current without breaking the circuit by clamping around a conductor.
- 600V CAT III / 300V CAT IV Safety Rating: Ensures the meter is rated for use in specific electrical environments to protect the user during testing.
- Resistance Measurement up to 40 kΩ: Enables the verification of circuit components and cable integrity.
- Integrated Continuity Detection: Features an audible tone at resistance levels ≤70Ω to quickly identify closed circuits or shorted wires.
Technical Specifications
| Feature | Specification |
|---|---|
| AC Current Range | 400 A |
| AC Current Accuracy | 2% ± 5 digits |
| AC Voltage Range | 600 V |
| Resistance Range | 40 kΩ |
| Continuity Threshold | ≤70 Ω |
| Safety Rating | CAT IV 300 V / CAT III 600 V |
| Measurement Type | True-RMS |

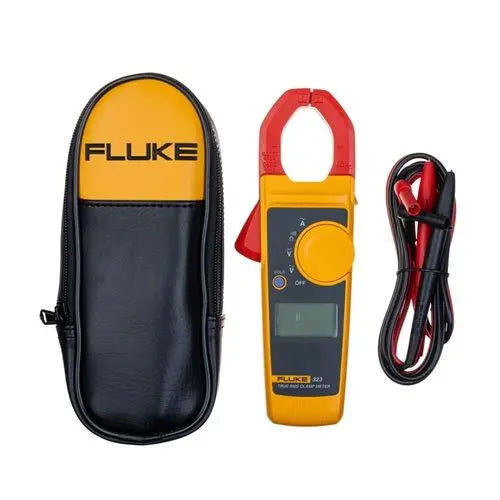

| Included Accessories | Soft case, test leads, user manual |
