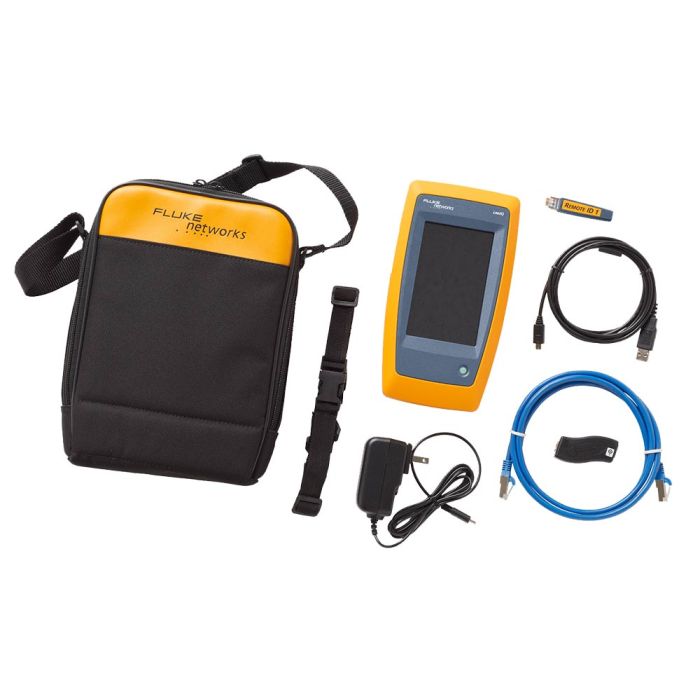

Fluke LinkIQ Cable & Network Tester LIQ100

Overview

The Fluke LinkIQ Cable & Network Tester (LIQ100) is a comprehensive diagnostic tool engineered for network engineers and IT professionals to verify cable performance and troubleshoot connectivity issues. This device integrates advanced cable testing with network diagnostic capabilities, allowing users to measure the bandwidth of their cabling infrastructure up to 10GBASE-T while simultaneously identifying critical network switch information.

Designed for field use, the LinkIQ provides accurate, repeatable results that confirm proper installation and functionality of twisted-pair cabling. It features a rugged, portable housing suitable for data center and enterprise environments, ensuring technicians can quickly validate installations and resolve network downtime effectively.

Key Features

• Cable Performance Testing
  Verifies cable bandwidth up to 10GBASE-T, ensuring data integrity for high-speed network demands.
• Switch Diagnostics
  Identifies connected switch port details, including speed, duplex settings, and VLAN information.
• IP Ping Test
  Performs IPv4 and IPv6 ping tests to verify connectivity to network devices and services.
• TDR Technology
  Utilizes Time Domain Reflectometry to provide precise distance-to-fault measurements for rapid troubleshooting.
• PoE Verification
  Validates Power over Ethernet (PoE) availability and power levels from connected switches.
• Reporting Capabilities
  Generates professional, documented test reports via the LinkWare PC software for project validation.

Applications

• Installation and validation of twisted-pair cabling systems.
• Troubleshooting connectivity issues in enterprise LANs.
• Verifying PoE power delivery for IP cameras, VoIP phones, and Wi-Fi access points.
• Documenting network infrastructure performance for client compliance.

Technical Specifications

Frequently Asked Questions

What cable types does the LinkIQ support?
It is designed for testing twisted-pair copper cabling.

Can this device test Power over Ethernet?
Yes, it verifies the availability and power levels of PoE from connected network switches.

Does it support 10 Gigabit speeds?
Yes, the LinkIQ verifies cable performance for frequencies and bandwidth up to 10GBASE-T.

Can I save test results?
Yes, reports can be managed and saved using the Fluke LinkWare PC software.

What is the maximum distance for fault location?
The device uses TDR technology to provide accurate distance-to-fault measurements along the cable length.
