Overview
The Fluke Networks DSX2-8000MI Copper Cable Analyzer provides comprehensive testing and certification of twisted pair cabling systems. Designed for network engineers and data center operators, this analyzer supports deployment requirements up to 40 Gigabit Ethernet, covering Cat 5e, 6, 6A, 8, and Class FA and I/II cabling standards.
As a core component of the Versiv cabling certification family, the DSX2 series ensures accurate, error-free testing to streamline system acceptance. It features high-frequency testing capabilities (up to 2 GHz) and complies with Level VI/2G accuracy standards, allowing users to minimize configuration errors, reduce troubleshooting time, and improve project profitability.
Key Features
-
2 GHz Testing Range
Supports high-bandwidth certification for Category 8 cabling and Class I/II standards. -
Versiv Architecture
Provides a modular platform for efficient testing, reporting, and project management. -
Level VI/2G Accuracy
Ensures compliance with stringent global industry standards for precision testing. -
Automated Certification
Reduces setup errors and misinterpretation of results for faster system acceptance. -
Comprehensive Test Kits
Includes specialized adapters for Permanent Link and Channel testing configurations. -
Integrated Video Inspection
Includes a USB video inspection probe to verify connector end-face cleanliness. -
Advanced Reporting
Generates easy-to-understand reports for diverse project stakeholder requirements. -
Multimode OLTS Capability
Includes CertiFiber modules for dual-media testing flexibility.
Applications
- Data center infrastructure certification
- High-speed 40GbE copper network deployment
- Category 5e through Cat 8 cabling validation
- Class FA and I/II standards compliance testing

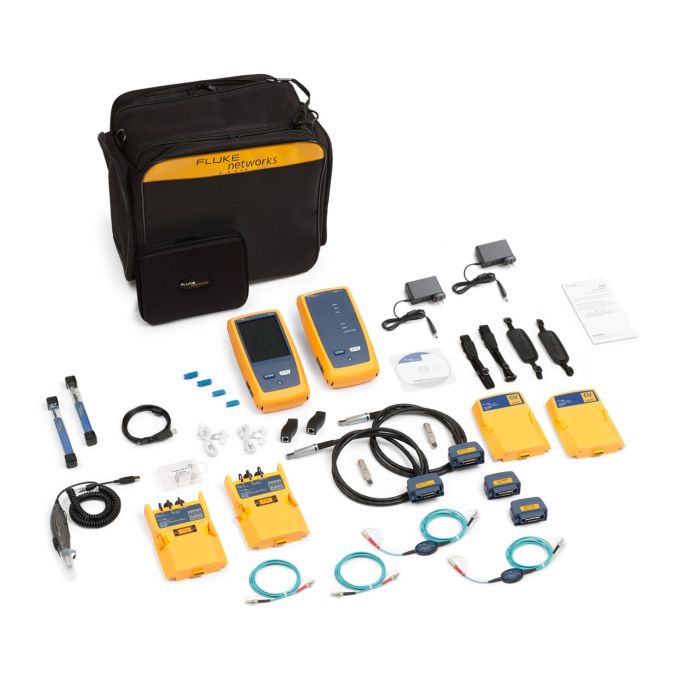

Package Contents

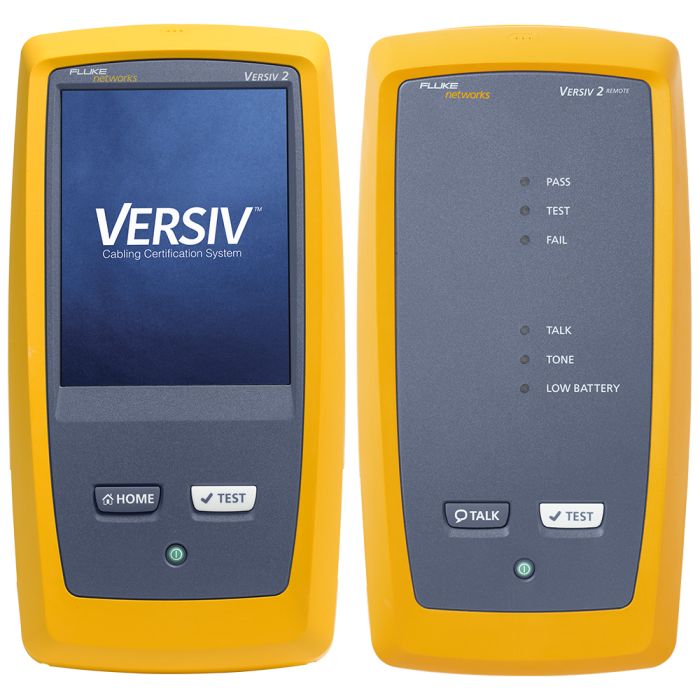

- 1 Versiv Mainframe & Remote
- (2) DSX-8000 CableAnalyzer Modules
- (2) CertiFiber Multimode OLTS Modules
- Set of Cat 8/Class I Permanent Link Adapters
- Set of Cat 8/Class I Channel Adapters
- (2) Headsets and (2) Hand/Shoulder Straps
- Carrying Case and TRC Carry Case
- USB Interface Cable
- (2) Universal Couplers and (2) AxTalk Terminators
- USB Video Inspection Probe w/ 4 Tips
- (2) Quick Clean Cleaners (1.25/2.50 mm)
- (2) LC/LC Simplex Adapters
- SC/LC EF-Compliant MM TRC Kit 50 µm
- Integrated Wi-Fi
- Statement of Calibration and Getting Started Guides
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Fluke Networks |
| Model | DSX2-8000MI |
| Bandwidth | 2 GHz |
| Accuracy Standard | Level VI/2G |
| Supported Media | Cat 5e, 6, 6A, 8, Class FA and I/II |
Frequently Asked Questions
What cabling standards does the DSX2-8000 support?
It supports Cat 5e, 6, 6A, 8, as well as Class FA and I/II cabling.
Does this kit include fiber testing capabilities?
Yes, this kit includes CertiFiber Multimode OLTS modules and a USB video inspection probe.
What is the maximum frequency the unit tests to?
The unit tests up to 2 GHz, meeting the requirements for Category 8 certification.
Is the unit Wi-Fi enabled?
Yes, the unit features integrated Wi-Fi for connectivity.
Does it come with a calibration statement?
Yes, a Statement of Calibration is included in the package contents.
