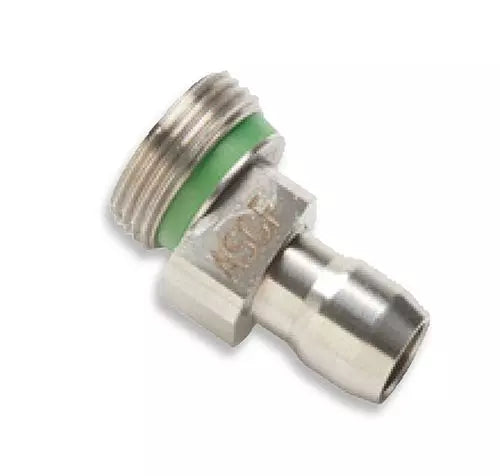

Fluke Networks FI-500TP-ASCF SC/APC Bulkhead Probe Tip

Overview

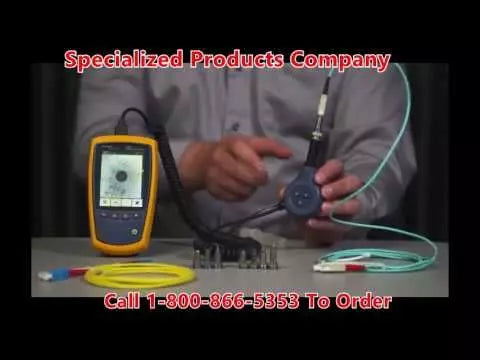

The Fluke Networks FI-500TP-ASCF SC/APC Bulkhead Probe Tip is a specialized accessory designed for use with the FI-500 FiberInspector Micro inspection scope. It enables the precise visual assessment of SC angled physical contact (APC) fiber optic connectors, which are frequently used in high-performance network environments where back-reflection must be minimized.

This probe tip allows technicians to inspect bulkhead end-faces for microscopic debris, scratches, or other damage that could degrade optical signal transmission. It is engineered to integrate seamlessly with the FI-500 system, facilitating clear, high-resolution imaging and fast diagnostic checks in the field.

Key Features

• SC/APC Compatibility
  Specifically designed for angled physical contact SC connectors, ensuring accurate alignment for inspection.
• Bulkhead Inspection
  Optimized for examining connectors installed within patch panels or bulkhead adapters.
• High-Resolution Imaging
  Supports the FI-500 system's 5 Megapixel CMOS sensor for sharp end-face analysis.
• Autofocus Support
  Compatible with the FI-500 autofocus feature to minimize manual adjustments and improve efficiency.
• Wide Magnification Range
  Works with the base unit's 200X magnification and zoom settings for detailed damage assessment.
• Robust Construction
  Built to withstand frequent use in diverse field operating environments.

Applications

• Fiber optic network installation
• Data center maintenance
• Troubleshooting back-reflection issues
• Verification of fiber end-face cleanliness

Technical Specifications

Frequently Asked Questions

What is the purpose of this probe tip?
It is used to inspect the end-face of SC/APC bulkhead connectors for cleanliness and damage using the Fluke Networks FI-500 FiberInspector Micro.

Is this tip compatible with other connector types?
No, this model is specifically designed for SC/APC connectors. Other tips are available for LC, FC, and universal patch cord interfaces.

Does it support the autofocus feature of the FI-500?
Yes, this probe tip is compatible with the autofocus functionality of the FI-500 FiberInspector Micro.

How do I clean the connector if damage is found?
Inspection reveals if cleaning is required. Use approved fiber optic cleaning supplies to remove debris identified during inspection.

Is the FI-500 unit included?
No, the FI-500 FiberInspector Micro is sold separately.
