Overview
The Fluke Networks FQM-100-M Fiber QuickMap Multimode Kit is a professional-grade fiber fault locator designed to expedite troubleshooting in enterprise environments. It specifically measures the length of multimode (50/125µm and 62.5/125µm) fiber optic cabling and identifies the location of high-loss connections, splices, and fiber breaks up to 1,500 meters (4,921 feet).

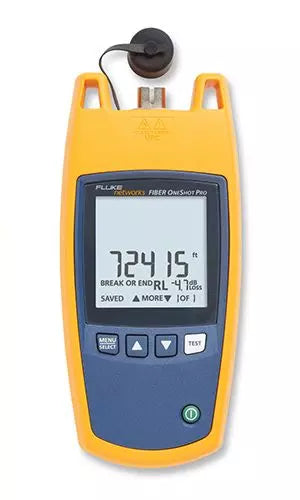

Engineered for field utility, this unit delivers rapid results within seconds and features a clear, large backlit display for ease of use in various lighting conditions. Its rugged construction ensures it can withstand the rigors of field work, having been vibration and drop-tested to 1 meter. The device provides a user-selectable loss threshold from -20dB to -45dB, with a default setting of -35dB.
Key Features
-
Fiber Fault Identification
Quickly locates breaks, high-loss splices, and connections, significantly reducing troubleshooting time. -
Multimode Compatibility
Optimized for 50µm and 62.5µm fiber types with an 850nm output wavelength. -
Extended Measurement Range
Accurately measures fiber segments up to 1,500 meters (4,921 feet). -
Rugged Design
Tested for vibration and drops up to 1 meter, ensuring durability in demanding environments. -
Long Battery Life
Capable of performing over 1,500 tests on a single battery set, minimizing downtime. -
User-Configurable Thresholds
Selectable loss thresholds ranging from -20dB to -45dB for tailored testing requirements. -
Live Fiber Detection
Built-in safety feature that alerts technicians to the presence of active optical signals.
Applications
- Enterprise LAN fiber network troubleshooting
- Multimode fiber length verification
- Data center cabling maintenance
- Quick identification of damaged or poor-quality fiber links
Package Contents

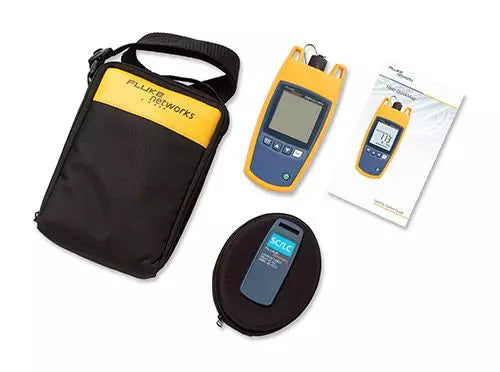

- FQM-100-M Fiber QuickMap main unit
- Interchangeable SC adapter
- UPC-UPC 2-meter patch cord
- Carrying case
- 4-language Quick Reference Guide
- Safety instruction manual
- Batteries
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Fluke Networks |
| Model | FQM-100-M |
| Fiber Type | Multimode (50µm and 62.5µm) |
| Operating Wavelength | 850nm |
| Max Measurement Distance | 1,500 meters (4,921 feet) |
| Dynamic Range | 11dB |
| Threshold Range | -20dB to -45dB |
| Auto Power Off | After 5 minutes |
Frequently Asked Questions
What fiber types does the FQM-100-M support?
It supports 50µm and 62.5µm multimode fiber.
What is the maximum test distance?
The device can test fiber links up to 1,500 meters or 4,921 feet.
Can it detect live fiber?
Yes, the unit is equipped with live fiber detection capabilities.
What is the battery life?
The unit provides over 1,500 tests before requiring battery replacement.
Does it come with a patch cord?
Yes, a 2-meter UPC-UPC patch cord is included in the kit.
