Overview
The Fluke Networks FTK-1475 is a comprehensive fiber verification kit designed for network technicians and contractors tasked with inspecting, testing, and troubleshooting optical fiber infrastructure. This professional-grade solution integrates the FI-500 FiberInspector™ Micro for detailed end-face inspection with the robust SimpliFiber® Pro power meter and light source for accurate multimode and single-mode testing.
By combining inspection, power measurement, and fault location capabilities into a single kit, the FTK-1475 enables efficient identification of microscopic debris, verification of optical power levels at 850, 1300, 1310, and 1550 nm, and rapid detection of cable faults and polarity issues. The included cleaning tools ensure that fiber end-faces are properly maintained for consistent and accurate test results.
Key Features
-
Integrated Inspection
Features the FI-500 FiberInspector Micro for clear visualization of fiber end-faces to identify contaminants or damage. -
Autofocus Capability
Automatically adjusts focus for rapid and accurate imaging of fiber end-faces. -
PortBright™ Flashlight
Includes a built-in light to illuminate dark work environments or crowded fiber panels. -
Optical Loss Testing
Verifies optical loss and power levels across 850, 1300, 1310, and 1550 nm wavelengths. -
Magnification Settings
Offers 200X magnification with 1X, 2X, and 4X zoom levels for detailed inspection. -
Fault Location
Includes VisiFault visual fault locator to identify cable breaks and polarity errors. -
Comprehensive Kit
Includes SimpliFiber Pro light sources and power meters, plus cleaning supplies for complete field readiness.
Applications
- Fiber optic cable inspection and cleaning
- Multimode and single-mode power level verification
- Optical loss testing in data centers and enterprise networks
- Cable fault detection and polarity troubleshooting

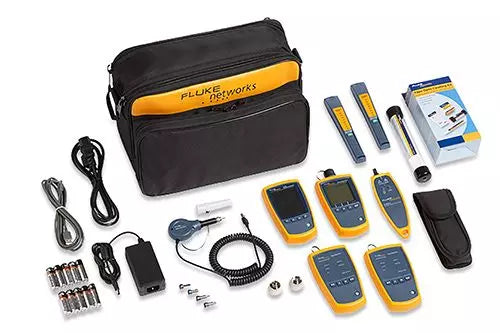

Package Contents
- FI-500 FiberInspector Micro
- SimpliFiber Pro Multimode & Single-Mode PMLS
- VisiFault Visual Fault Locator
- (2) FindFiber Remote ID sources
- Fiber optic cleaning kit (NFC-KIT-BOX)
- 1.25 mm fiber swabs
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Fluke Networks |
| Model | FTK1475 |
| Part Number | 044X264 |
| Operating Wavelengths | 850, 1300, 1310, 1550 nm |
| Sensor Type | 5 Megapixel 1/4-inch CMOS |
| Magnification | 200X (with 1X, 2X, 4X zoom) |
| Display | 320 x 240 backlit LCD |
Frequently Asked Questions
What is included in the FTK-1475 kit?
The kit includes the FI-500 FiberInspector, SimpliFiber Pro MM/SM power meter/light source, VisiFault locator, FindFiber remotes, and a cleaning kit.
Can I test both multimode and single-mode fibers?
Yes, the kit supports power level and loss testing across 850, 1300, 1310, and 1550 nm wavelengths.
Does the FI-500 require manual focusing?
The FI-500 features an autofocus function for rapid image acquisition.
Is there a built-in light for working in dark panels?
Yes, it includes the PortBright™ flashlight feature to illuminate fiber ports.
What is the purpose of the VisiFault included in the kit?
The VisiFault is a visual fault locator used to pinpoint cable breaks, damaged fibers, and incorrect polarity.
