Overview
The Fluke Networks FTK1200 is a comprehensive multimode fiber verification kit designed for network technicians and contractors requiring reliable field testing. This kit centers on the SimpliFiber Pro optical power meter, which features advanced auto-wavelength detection to streamline testing procedures, alongside a VisiFault visual fault locator for rapid identification of physical layer issues.
The system is purpose-built to verify essential fiber link parameters including optical power levels, insertion loss, continuity, and polarity. Its design allows for simultaneous dual-wavelength testing, storing results into a single record to simplify reporting. Engineered for demanding environments, the equipment features impact-resistant housing, making it well-suited for both data center and outside plant maintenance applications.
Key Features
-
Auto-Wavelength Detection
The optical power meter automatically detects the wavelength of the light source, reducing manual input errors and saving time during link testing. -
Simultaneous Dual-Wavelength Testing
Tests at two wavelengths at once and stores them as one record, increasing testing efficiency. -
VisiFault VFL Included
Includes a high-visibility laser-powered visual fault locator to quickly find breaks, bends, and faulty connectors. -
Data Storage
The meter retains up to 1000 test records, allowing for extensive documentation in the field before needing to offload data. -
Rugged Construction
Equipped with impact-resistant covers to protect sensitive internal electronics from drops and job-site hazards. -
FindFiber Remote ID
Enables efficient cable routing identification and double-ended testing without needing to return to the source.
Applications
- Fiber optic cable continuity verification
- Optical power measurement
- Fiber link loss testing
- Polarity verification
- Fault location in cables, splices, and connectors

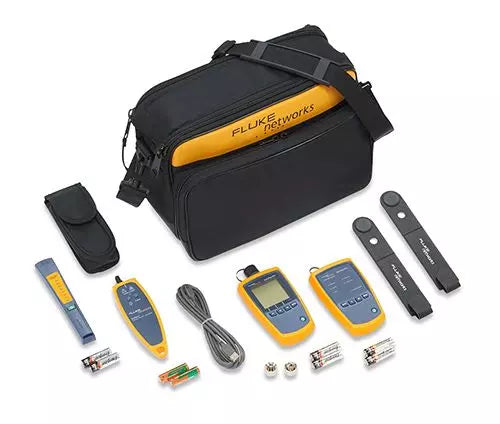

Package Contents
- SimpliFiber Pro Optical Power Meter (with USB port)
- 850/1300 nm Multimode Optical Source
- VisiFault Visual Fault Locator (VFL)
- FindFiber Remote ID Source
- Power meter adapters: SC, ST, and LC
- Magnetic strap attachments (2)
- Carrying case
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Fluke Networks |
| Model | FTK1200 |
| Part Number | 044X258 |
| Fiber Type | Multimode |
| Test Wavelengths | 850 nm, 1300 nm |
| Data Storage | Up to 1000 records |
Frequently Asked Questions
What is included in the FTK1200 kit?
The kit includes the SimpliFiber Pro OPM, 850/1300 nm multimode source, VisiFault VFL, FindFiber remote ID, various connector adapters, magnetic straps, and a carrying case.
Can this kit test single-mode fiber?
No, the FTK1200 is specifically a multimode verification kit.
Does the unit store results?
Yes, the SimpliFiber Pro OPM can store up to 1000 test records.
What adapters are provided?
The kit includes SC, ST, and LC power meter adapters.
What is the purpose of the VisiFault included in the kit?
The VisiFault is a visual fault locator used to physically identify fiber breaks, tight bends, or damaged connectors via a high-visibility laser.
