Overview

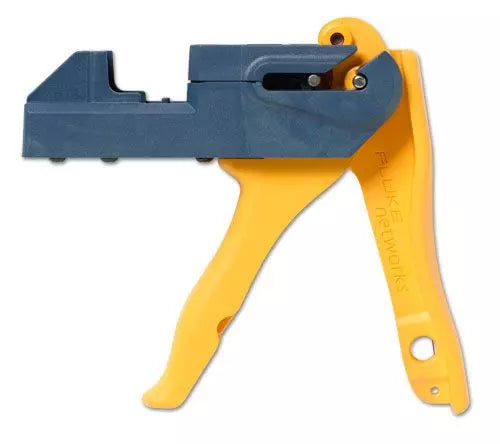

The Fluke Networks JR-ORT-2 JackRapid is a specialized termination tool engineered for precise installation of Ortronics connectivity solutions. The tool is designed to seat and terminate all eight wires within an RJ45 jack simultaneously, utilizing a single handle squeeze mechanism to provide consistent pressure during the termination process.

Key Features

• Integrated Wire Trimming: A built-in blade system automatically shears off excess conductor wire during the handle actuation, removing the requirement for a secondary trimming operation.
• Single-Action Termination: The handle mechanism seats all eight conductors into the insulation displacement contact (IDC) slots in one movement, which minimizes physical effort during repetitive tasks.
• Ergonomic Handle Geometry: The tool is structured for one-handed operation, which assists in reducing hand fatigue during high-volume installation projects.
• Close-Wall Compatibility: The head geometry is optimized to allow for terminations in restricted spaces, including locations where jacks are installed in close proximity to wall surfaces.
• Replaceable Blade Head: The design incorporates a modular blade head, allowing the user to swap heads to accommodate different jack types without replacing the entire tool body.
