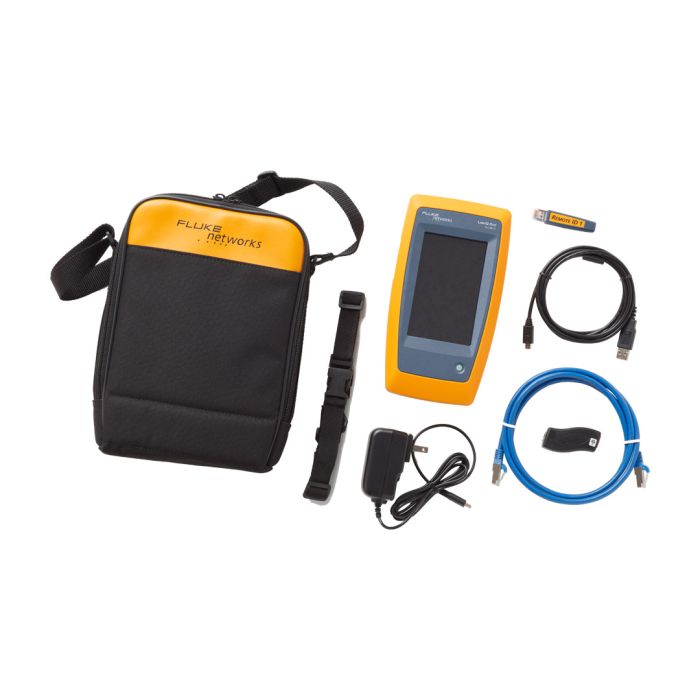

Fluke Networks LinkIQ™ Duo Cable+Network+Wi-Fi Tester Kit
Overview
The Fluke Networks LinkIQ™ Duo Cable+Network+Wi-Fi Tester Kit is a comprehensive diagnostic solution engineered to verify cable performance up to 10 Gb/s and resolve complex network connectivity issues. By combining advanced frequency-based measurements with robust network testing, this unit validates cabling integrity, performs wire map analysis, and verifies switch configurations in a single, portable device.
Designed for data center operators and network technicians, the Duo model includes advanced Wi-Fi analysis capabilities supporting up to Wi-Fi 6E. It provides visibility into networks, channels, and access points, while automatically flagging common configuration errors such as illegal channels, weak security settings, or overlapping access points.
This kit excels in high-stakes environments, offering Ethernet Alliance-certified PoE verification that tests for load under actual power conditions (up to Class 8). Built for field use, the tester features a touch-sensitive color display, a rugged design capable of surviving 1-meter drops, and integration with LinkWare™ PC software for efficient reporting and results management.
Downloads
Key Features
-
10G Cable Performance Testing
Qualifies cabling bandwidth from 10BASE-T to 10GBASE-T, ensuring infrastructure meets high-speed data requirements. -
Wi-Fi 6E Analysis
Analyzes networks, channels, and access points to identify configuration issues and interference in wireless environments. -
PoE Load Testing
Verifies actual power delivery and PoE class (1-8) under load, preventing deployment failures for cameras and access points. -
Switch Diagnostics
Identifies nearest switch data rates, VLAN info, and IP/MAC addresses to validate network configuration without extra devices. -
Toning Functionality
Generates analog or digital tones compatible with IntelliTone™ or Pro3000™ probes for accurate cable location in walls or telecom rooms. -
LinkWare™ PC Integration
Allows for export of up to 1,000 test results, enabling the generation of professional PDF reports for documentation. -
Port Blink
Blinks the light of the connected switch port to simplify physical cable identification.
Applications
- Verification of cabling performance up to 10 Gb/s
- Network connectivity troubleshooting (Ping/DHCP)
- Validation of PoE device power and availability
- Wireless network assessment for Wi-Fi 6E environments
- Identification of miswired and split pairs
- Cable location and documentation
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Fluke Networks |
| Model | LinkIQ Duo |
| Weight | 1 lbs 6 oz (624g) |
| Dimensions | 22 cm x 11 cm (8.5 in x 4.5 in) |
| Display | 800 x 480 pixels color capacitive multi-touch |
| Battery Type | Lithium-ion, 3.6 V, 6400 mAh |
| Battery Life | 8 hours typical |
| Operating Temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Max Cable Length | 305 m (1000 ft) |
| Drop Resistance | 1 m drop, 6 sides |
| Host Interface | USB type C |
Frequently Asked Questions
What is the maximum cable length the LinkIQ can measure?
The LinkIQ can measure cable lengths up to 305 meters (1000 feet).
Does the LinkIQ Duo support Wi-Fi 6E?
Yes, the Duo model features an internal antenna and Wi-Fi radio capable of analyzing 2.4 GHz, 5 GHz, and 6 GHz bands where permitted by regional regulations.
Can the LinkIQ test PoE power delivery?
Yes, it is Ethernet Alliance-certified to test PoE Class 1-8 and can perform a load test to ensure the switch is delivering the advertised power.
How many test results can be saved?
The internal memory allows you to store and save up to 1,000 test results for export to LinkWare™ PC.
Does it support Industrial Ethernet protocols?
The LinkIQ-IE models support M12X, M12D, and M8D terminated cables for protocols like EtherNet/IP, PROFINET, and EtherCAT.
