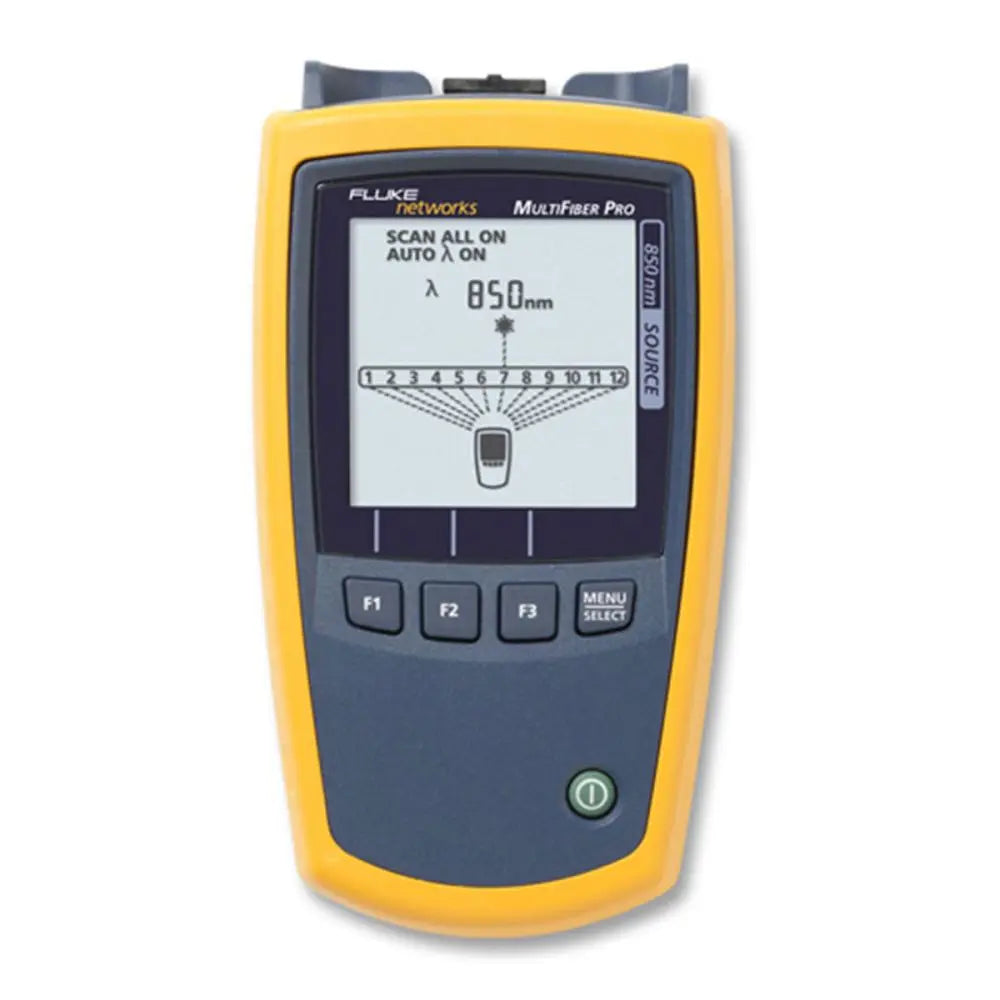

Fluke Networks MFTK-MM850-SM1310 MultiFiber Pro MPO Test Kit

Overview

The Fluke Networks MFTK-MM850-SM1310 MultiFiber Pro MPO Test Kit is designed to streamline the certification and verification process for MPO fiber trunks. By providing automated scanning and testing for up to 12 fibers simultaneously, this kit eliminates the need for manual fan-out cords, significantly reducing testing time in data center environments.

This kit supports both multimode and single-mode testing, offering comprehensive insights into optical loss, power, and polarity. It is engineered to perform measurements in approximately 6 seconds per MPO link, ensuring efficiency during large-scale network deployments. Built-in, high-contrast displays and internal data storage allow technicians to manage results directly in the field.

Key Features

• Automated 12-Fiber Testing
  Scans and tests up to 12 fibers in an MPO connector automatically, saving time during trunk verification.
• 6-Second Measurement
  Completes power and loss testing in approximately 6 seconds, increasing technician productivity.
• Integrated Polarity Verification
  Ensures correct polarity for A, B, C, and Universal configurations, preventing costly connectivity errors.
• No Fan-out Cords Required
  Tests MPO connectors directly without additional fan-out assemblies, simplifying the testing workflow.
• Broad Fiber Compatibility
  Supports 50µm, 62.5µm, and 9µm fiber types, making it versatile for diverse network installations.
• Data Management Capability
  Stores up to 3,000 test results internally for reporting and documentation via LinkWare software.

Applications

• Data center fiber trunk testing
• High-density MPO network installation
• Multimode and single-mode fiber certification
• Polarity verification for MPO cabling

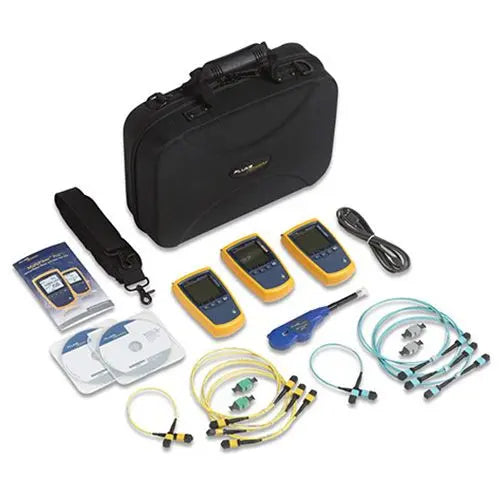

Package Contents

• MultiFiber Pro power meter
• 850 nm encircled flux light source
• 1310 nm light source
• Test reference cords
• MPO adapters
• Carrying case

Technical Specifications

Frequently Asked Questions

Does this kit require fan-out cords for testing?
No, the MultiFiber Pro MPO test kit is designed to test MPO connectors directly, removing the need for fan-out cords.

How many test results can be stored in the device?
The device can internally store up to 3,000 test results, which can later be uploaded to a PC.

Is the kit compatible with both multimode and single-mode fibers?
Yes, it is designed to support 50µm, 62.5µm, and 9µm optical fibers.

How long does the testing process take?
The test kit is capable of performing power and loss measurements in approximately 6 seconds.

Which software is used for reporting?
The kit supports reporting and data management through the Fluke Networks LinkWare Cable Test Management Software.
