Overview

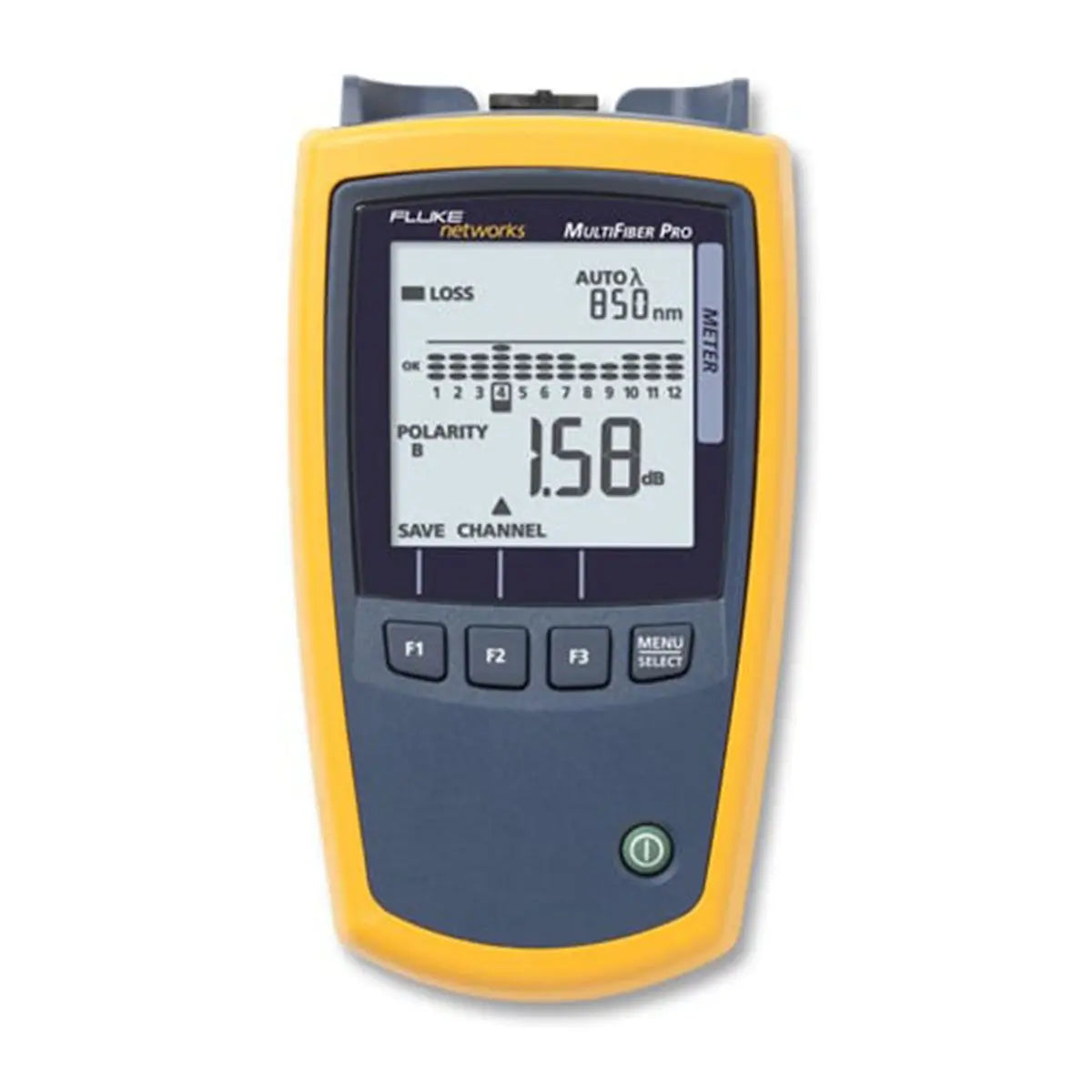

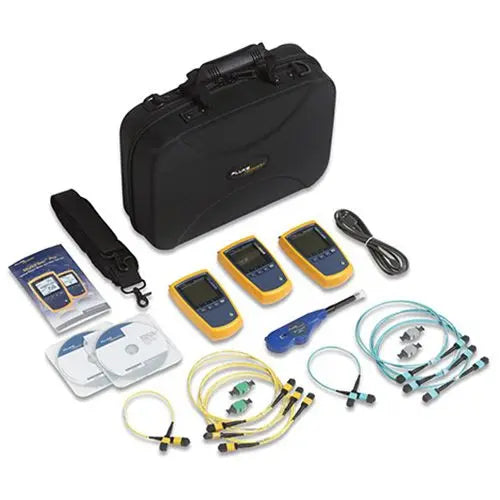

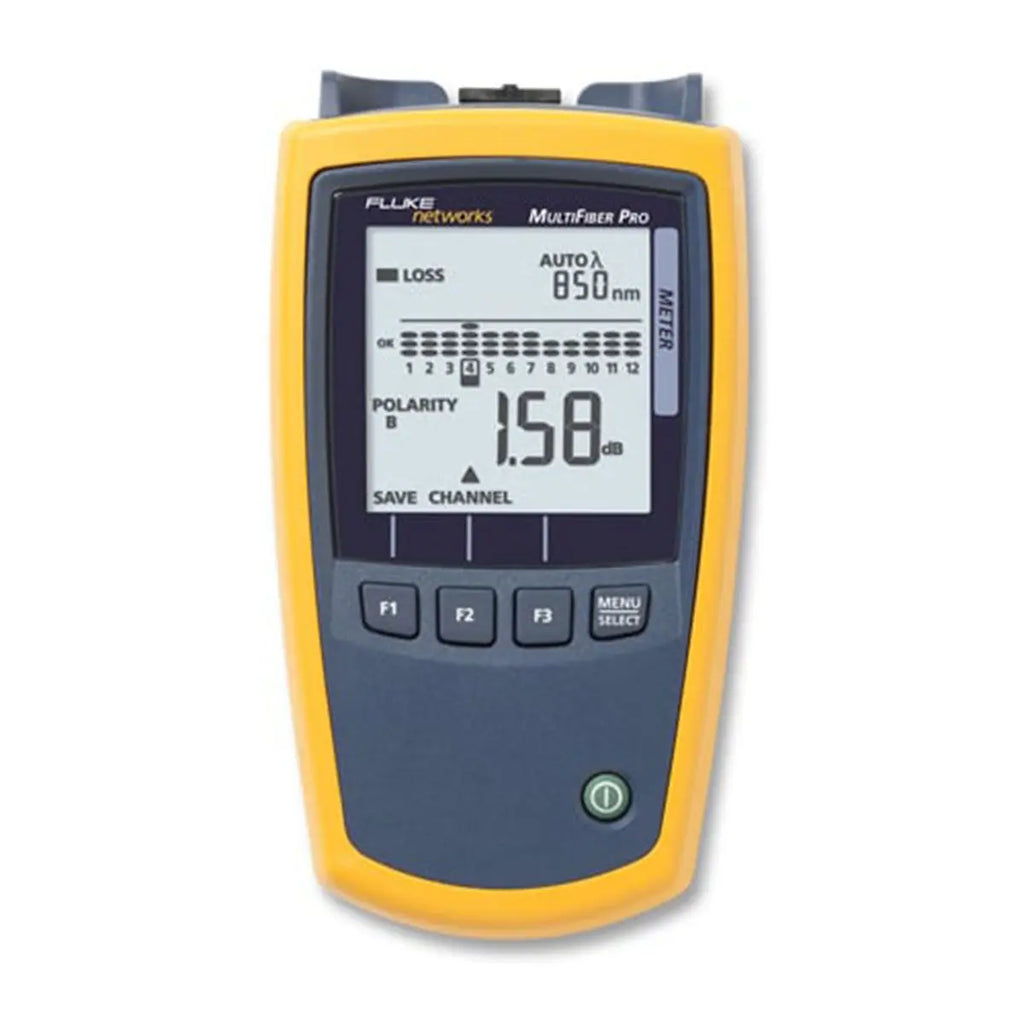

The Fluke Networks MFTK-MM850-SM1550 MultiFiber Pro MPO Test Kit is a specialized field solution designed to simplify the testing of multimode and single-mode MPO fiber trunks. It eliminates the need for traditional fan-out cords by providing automatic scanning and testing of up to 12 fibers simultaneously within an MPO connector.
Engineered for high-efficiency data center and enterprise network environments, this kit provides rapid power and loss measurements, polarity verification, and automated result management. Its rugged design and intuitive interface ensure accurate performance in demanding field conditions.
Key Features
-
Multi-Fiber Scanning
Tests up to 12 fibers in an MPO connector automatically, significantly reducing overall testing time. -
Integrated Polarity Verification
Verifies A, B, C, and Universal polarity configurations to ensure correct network connectivity. -
Rapid Measurement
Completes power and loss measurements in just 6 seconds, increasing operational productivity. -
Fan-out Free Testing
Direct MPO interface eliminates the need for separate fan-out cables, simplifying the setup. -
Broad Fiber Compatibility
Supports 50µm, 62.5µm (multimode), and 9µm (single-mode) optical fibers. -
Onboard Result Storage
Stores up to 3,000 test results internally for later retrieval and analysis. -
Comprehensive Software Integration
Compatible with LinkWare Cable Test Management Software for professional report generation. -
Dual Wavelength Support
Includes 850 nm LED and 1550 nm laser light sources for versatile network testing.
Applications
- Data center MPO backbone testing
- Enterprise fiber optic network certification
- MPO fiber trunk polarity verification
- Loss and power measurement of 12-fiber MPO connectors
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Fluke Networks |
| Model | MFTK-MM850SM1550 |
| Part Number | 044X454 |
| Test Interface | MTP/MPO (unpinned) |
| Wavelengths | 850 nm (LED), 1550 nm (Laser) |
| Supported Fiber Types | 50µm, 62.5µm, 9µm |
| Internal Storage | 3,000 test results |
| Operating Temperature | -10°C to +50°C |
Frequently Asked Questions
Does this kit require fan-out cords?
No, the MultiFiber Pro test kit features an MPO interface that allows for direct testing of MPO connectors.
Can I export the test results to my PC?
Yes, the unit stores up to 3,000 results which can be uploaded to a PC using LinkWare Cable Test Management Software.
Which fiber types are compatible?
The kit supports 50µm, 62.5µm, and 9µm optical fiber types.
Does it check polarity?
Yes, it includes built-in polarity verification for A, B, C, and Universal configurations.
How many fibers can be tested at once?
The kit automatically scans and tests up to 12 fibers in a single MPO connector.
