Overview

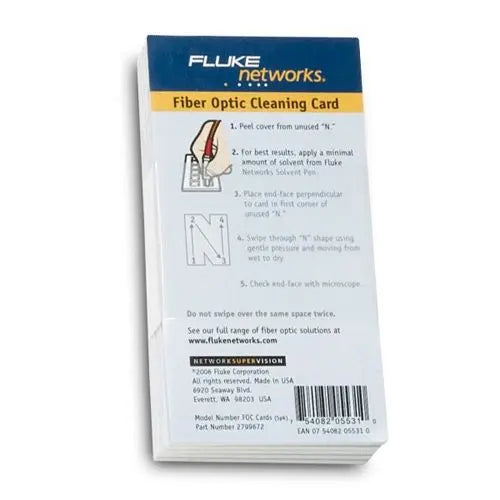

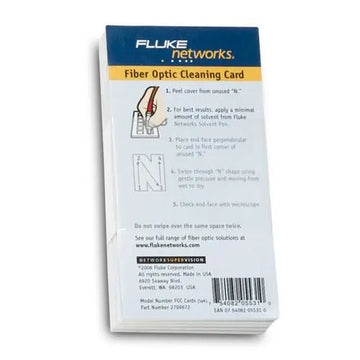

The Fluke Networks NFC-CARDS-5PK Fiber Optic Cleaning Cards are designed for critical fiber end-face maintenance. These cards are essential for fiber technicians and network operators requiring a precise method to remove contaminants that cause signal degradation and link failure.
Each card contains 12 individual, sealed cleaning zones, allowing for consistent results during the troubleshooting process. The lint-free material is specifically engineered for a wet-to-dry cleaning sequence, ensuring that oils, dust, and particulate matter are effectively lifted from the fiber connector end-face.
Key Features
-
12 Sealed Cleaning Zones
Each card provides 12 distinct, contamination-free zones for reliable and repeatable cleaning applications. -
Lint-Free Material
Constructed with specialized lint-free fabric that prevents leaving additional residue or fibers on the connector end-face. -
Wet/Dry Cleaning Sequence
Designed for a controlled wet-to-dry cleaning process which is the most effective method for removing stubborn debris. -
Five-Pack Configuration
The kit includes five cards, offering ample supply for routine maintenance and fiber troubleshooting in the field. -
Universal Connector Compatibility
Suitable for cleaning a wide range of fiber connector end-faces to ensure optimal optical performance.
Applications
- Fiber optic connector end-face cleaning
- Troubleshooting fiber link failures due to contamination
- Routine network maintenance in data centers
- Field preparation prior to fiber testing or splicing
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Fluke Networks |
| Model | NFC-CARDS-5PK |
| Cleaning Zones per Card | 12 |
| Quantity | 5-Pack |
| Cleaning Material | Lint-free |
Frequently Asked Questions
How should I use these cleaning cards?

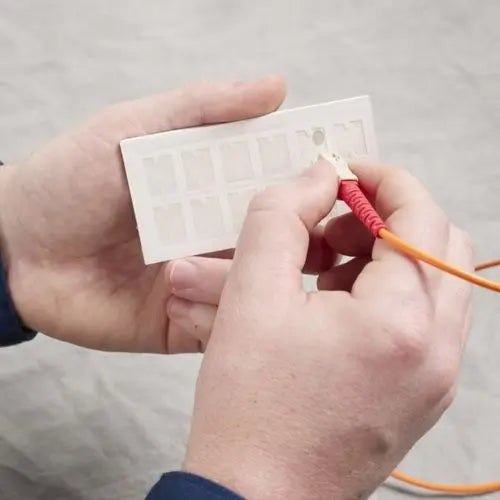

Apply a small spot of solvent to the starting corner of a cleaning zone, then hold the fiber connector perpendicularly and swipe the end-face from the wet spot across the dry zone.
Are these cards lint-free?
Yes, the cards are constructed with lint-free material to prevent leaving debris behind after cleaning.
How many cleaning zones are on each card?
Each individual card contains 12 sealed cleaning zones.
What is the primary purpose of these cards?
They are intended to remove contamination from fiber optic connector end-faces to prevent link failure and improve signal quality.
Does this pack include solvent?
No, these are cleaning cards only. You should apply a separate cleaning solvent to the card during the cleaning process.
