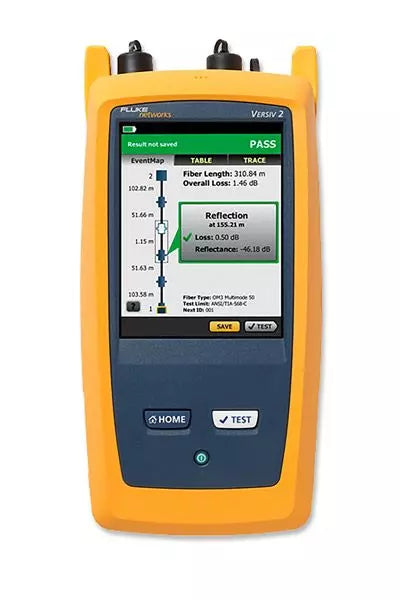

Fluke Networks OFP2-100-M Wireless OptiFiber Pro Multimode OTDR

Overview

The Fluke Networks OFP2-100-M Wireless OptiFiber Pro Multimode OTDR is an advanced fiber testing solution designed for data center environments and enterprise networks. It features the intuitive Taptive user interface, allowing technicians of varying skill levels to navigate complex fiber testing tasks with ease. The unit serves as a high-precision tool for characterizing fiber links, troubleshooting connectivity issues, and ensuring compliance with industry standards.

Built for efficiency, this OTDR supports rapid 1-second automated PASS/FAIL certification in accordance with IEC 61300-3-35. The inclusion of SmartLoop technology enables automated testing and analysis of two fibers simultaneously without requiring the technician to move the device to the far end. Its optimized dead zones allow for accurate measurements in high-density, connector-rich cabling architectures, minimizing errors during testing at 850nm and 1300nm wavelengths.

Key Features

• Taptive User Interface
  Provides a smartphone-like graphical experience that simplifies setup and minimizes training time for technicians.
• Automated PASS/FAIL Certification
  Delivers quick, objective certification results per IEC 61300-3-35 standards, reducing human interpretation error.
• SmartLoop Technology
  Automates bi-directional testing of two fibers in a single test, significantly increasing field productivity.
• Ultra-Short Dead Zones
  Features 0.5m event and 2.5m attenuation dead zones, ideal for testing short patch cords and dense data center interconnects.
• Integrated VFL
  Includes a built-in Visual Fault Locator to assist in quick identification of fiber breaks and macro-bends.
• DataCenter OTDR Mode
  Optimized settings and graphical EventMap view provide clear, actionable insights for data center fiber installations.

Applications

• Multimode fiber network certification
• Data center cabling infrastructure troubleshooting
• High-density fiber optic link characterization
• Enterprise LAN/WAN fiber testing

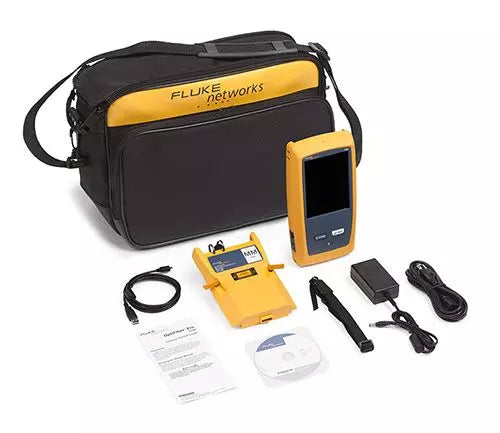

Package Contents

• Versiv Mainframe
• OptiFiber Pro Multimode OTDR Module
• Shoulder Strap
• Carry Case
• USB Interface Cable
• Versiv Open Source Software CD
• AC Charger
• Integrated Wi-Fi
• Calibration Certificate
• User's Guide

Technical Specifications

Frequently Asked Questions

What is the primary benefit of SmartLoop technology?
SmartLoop allows for automated bi-directional testing of two fibers without needing to transport the OTDR to the far end of the link.

Can this device certify fiber?
Yes, it provides automated PASS/FAIL certification based on IEC 61300-3-35 standards.

Is this OTDR suitable for data centers?
Yes, its ultra-short dead zones are specifically designed to handle the short, connector-rich links common in data center environments.

What wavelengths does the OFP2-100-M support?
It supports 850nm and 1300nm wavelengths for multimode fiber testing.

Does the unit include a VFL?
Yes, it features an integrated Visual Fault Locator.
