Overview
The Fluke Networks OFP2-100-Q-NW is a high-performance, non-wireless OptiFiber Pro Quad OTDR designed for accurate fiber optic certification and troubleshooting. It provides professional technicians and data center operators with automated pass/fail certification and advanced diagnostic capabilities. By delivering comprehensive testing across multiple wavelengths, it helps streamline the deployment and maintenance of both single mode and multimode fiber networks.
Engineered for efficiency, the unit features a Taptive user interface for intuitive navigation and the Taptive-guided setup for reliable test configurations. Its rapid, 1-second automated testing minimizes downtime, while the integrated SmartLoop technology enables bi-directional testing without requiring the OTDR to be moved to the far end of the link. The device is built for connector-rich environments, featuring ultra-short dead zones that ensure precise measurement in dense cabling systems.
Key Features
-
Automated Certification
Provides 1-second automated pass/fail certification compliant with IEC 61300-3-35 standards to ensure link quality. -
SmartLoop Technology
Enables automated testing and analysis of two fibers in a single test, eliminating the need to physically move the tester to the far end. -
Ultra-Short Dead Zones
Allows for precise testing in connector-rich data center environments by minimizing event and attenuation dead zones. -
Taptive User Interface
Simplifies operation with a gesture-based, user-friendly interface that reduces training time and testing errors. -
Multi-Wavelength Testing
Operates at 850, 1300, 1310, and 1550nm to support comprehensive testing of both single mode and multimode fiber types. -
Integrated Visual Fault Locator
Includes a built-in VFL for quick and easy visual identification of fiber breaks or faulty connectors. -
DataCenter OTDR Mode
Optimizes settings for high-density environments and provides a graphical EventMap view for rapid fault location.
Applications
- Data Center Fiber Certification
- Enterprise Network Infrastructure Testing
- Single Mode and Multimode Fiber Troubleshooting
- Automated Bi-directional Link Loss Characterization
- Visual Fault Location and Continuity Checking

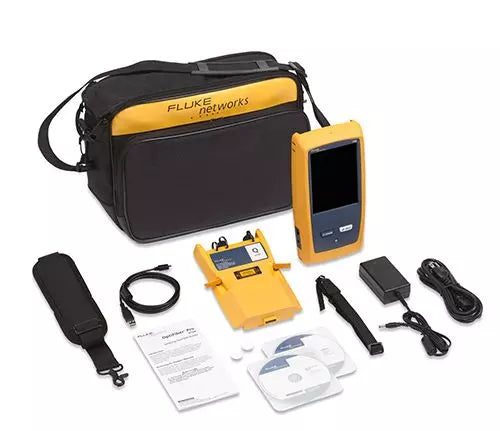

Package Contents
- Versiv Mainframe
- OptiFiber Pro Quad OTDR Module
- Shoulder Strap
- Carry Case
- USB Interface Cable
- Versiv Open Source Software CD
- AC Charger
- Calibration Certificate
- User's Guide
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Fluke Networks |
| Model | OFP2-100-Q-NW |
| Wavelengths | 850, 1300, 1310, 1550nm |
| Integrated Features | VFL, SmartLoop Technology, Taptive Interface |
| Wireless Connectivity | Disabled |
Frequently Asked Questions
Does this unit include wireless connectivity?
No, the OFP2-100-Q-NW model specifically has the integrated Wi-Fi disabled.
What wavelengths are supported?
The device supports 850nm and 1300nm for multimode, and 1310nm and 1550nm for single mode testing.
What is the primary benefit of SmartLoop?
SmartLoop allows you to perform bi-directional testing of two fibers without needing to walk the OTDR to the far end of the cable link.
Is this OTDR suitable for data centers?
Yes, it features a dedicated DataCenter OTDR mode and ultra-short dead zones designed for high-density, connector-rich environments.
Can it perform automated certification?
Yes, it provides 1-second automated PASS/FAIL certification compliant with IEC 61300-3-35 standards.
