Fluke Networks OFP2-100-QI OptiFiber Pro Quad OTDR +Inspect Kit

Overview

The Fluke Networks OFP2-100-QI OptiFiber Pro Quad OTDR is a professional-grade fiber optic testing system designed for high-performance network certification. It integrates advanced OTDR capabilities with a comprehensive inspection kit, allowing technicians to verify fiber end-faces and analyze network links efficiently. The system utilizes the Taptive user interface to provide a simplified, tablet-like experience for complex fiber testing tasks.

Built for data center and enterprise environments, this kit supports both multimode and single-mode fiber testing. It features SmartLoop technology for automated bi-directional testing, which significantly reduces the time required for complete link characterization. With ultra-short dead zones and a graphical EventMap view, the device enables rapid identification of faults and connectors, ensuring network integrity in high-density fiber installations.

Key Features

• SmartLoop Technology
  Automates the testing and analysis of two fibers in a single test, saving time and simplifying bi-directional loss measurements.
• EventMap View
  Provides an intuitive graphical representation of all fiber events, allowing technicians to quickly pinpoint faults.
• Taptive User Interface
  Features a responsive touchscreen interface that minimizes the learning curve and accelerates test setup.
• Integrated Inspection Probe
  Includes a USB video inspection probe for validating fiber end-face cleanliness and condition.
• Built-in VFL
  Equipped with a Visual Fault Locator to quickly identify breaks, bends, and faulty connectors along the fiber path.
• Versiv Mainframe
  Modular design supports future-proofing and integration with other Fluke Networks testing modules.
• Ultra-Short Dead Zones
  Optimized attenuation and event dead zones enable testing of short patch cables and high-density fiber link configurations.

Applications

• Data center fiber link certification
• Enterprise premises cabling analysis
• High-density fiber optic network troubleshooting
• Bi-directional fiber link characterization

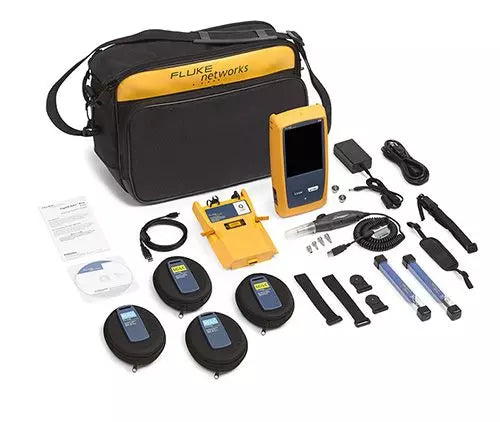

Package Contents

• Versiv Mainframe
• OptiFiber Pro Quad OTDR Module
• USB Fiber Inspection Video Probe with 4 Tips
• 2 Quick Clean Cleaners (1.25/2.50mm)
• 2 SC/LC Multimode Launch Cables (50µm)
• 2 SC/LC Singlemode Launch Cables (9µm)
• 2 OTDR Source Port Interchangeable LC Adapters
• SC/SC Simplex Adapter
• 2 Launch Fiber Hanging Straps & Magnets
• AC Charger and USB Interface Cable
• Carry Case and Shoulder Strap
• Versiv Open Source Software CD
• Calibration Certificate and User Guide

Technical Specifications

Frequently Asked Questions

What is the primary function of the OFP2-100-QI?
It is a quad-wavelength OTDR used for certifying and troubleshooting single-mode and multimode fiber optic networks.

Does this kit include the fiber inspection probe?
Yes, it includes a USB fiber inspection video probe with four tips for checking connector end-faces.

Can it perform bi-directional testing?
Yes, the included SmartLoop technology automates the process of bi-directional testing for faster link analysis.

Is the unit Wi-Fi enabled?
Yes, the unit comes with integrated Wi-Fi connectivity for data transfer and management.

What type of launch cables are provided?
The kit includes two SC/LC multimode 50µm launch cables and two SC/LC singlemode 9µm launch cables.
