100Mb Fast Ethernet Multimode Fiber Media Converter, SC Connector, 2km
Move your mouse over image or click to enlarge

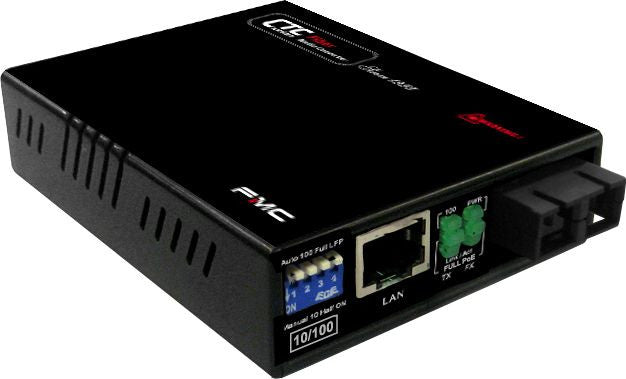

100Mb Fast Ethernet Multimode Fiber Media Converter, SC Connector, 2km

CTC Union Part No.: FMC-10-100-SC002

  • $ 44.00 or

Product description

The FMC media converters are noticed for their simplicity: no management features, guaranteed reliability and extremely affordable cost. Units can be ordered with either SC type or ST type of fiber optic connector. FC optical connector is available on demand.

FMC-10-100-SC002 is a multi-mode(1310nm) optical wave fiber converter equipped with dual SC type optical connector, with auto-negotiation 10/100 and MDI/MDI-X features for the Fast Ethernet RJ45 UTP interface. Even without the SNMP management support, FMC series support Link-Fault-Pass through function (LFP - an extremely useful feature to easily debug faulty fiber links), Far-End-Fault function (FEF), acts on a Store-and-Forward switching platform and can carry Jumbo data packets up to 9K size.

Used with their compatible FMC-CH08 fiber optic chassis they can be aggregated up to 16 units in a 19" wide and 2U height space only. FMC series offer the same ability to be aggregated in the FMC-CH08 central chassis, like their FIB1 managed counterparts. In an always changing and growing networking environment, such a versatile feature allows network operators to switch to higher density and aggregation hubs without the need to purchase new fiber optic converters. This simple, but so reliable idea, is making the FMC series media converters a very clever choice for data carriers and service providers.

Technical specifications

Interfaces: RJ45 copper IEEE 802.3 10Base-T, 802.3u 100Base-TX compliant and SC, 100Base-FX compliant
Operating wavelength: 1310nm Multimode
Ethernet interface: Supports 10/100Base-T/TX, Full, Half duplex n-way (Auto-Negotiation). Supports Full, Half duplex, 10/100 speed manual selections. Transmission Packet Rate for 10/100Base-T/TX : 14880 per second /148800 per second. Copper TP cable 4 pair Cat. 3 or 5 UTP
Features: FEF (Far-End-Fault) and LFP (Link-Fault-Pass through)
Operating distance: up to 2Km on 62.5/125um fiber
Optical connector: SC
Front LEDs: PWR, LLF, Fiber Link, TP Link, Duplex, Speed
Power: External 90-260V AC switching adapter 12VDC@1A with NEMA1-15(2 blades only), US type main plug
Temperature: 0 50C (Operating); 0 70C (Storage)
Humidity: 20 80% non condensing (Operating); 0 90% (Storage)
Consumption: less than 4W
Dimensions(WxDxH): 73mm x 108mm x 23mm
Weight: 160g (without AC adapter)
Compliance: FCC part 15, Subpart B, Class A, ANSI C63.4:2003 CE EN55022:2006, Class A EN55024:1998+A1:2001+A2:2003 LVD: EN 60 950-1:2001
MTBF: 65,000 hours

Product Sheet:
