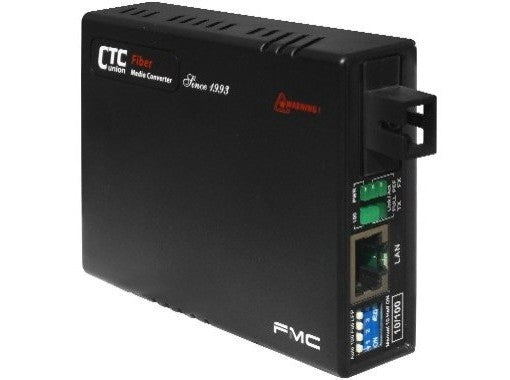

Fast Ethernet single strand BiDi fiber media converter, SC connector, 80Km B type
The FMC media converters are noticed for their simplicity: no management features, guaranteed reliability and extremely affordable cost. Units are available with single SC type fiber optic connector, using a BiDirectional optical module. ST or FC optical connectors are available on demand.
FMC-10-100-SC80Bis a single strand WDM, Bi-Directional fiber media converter with Tx:1550nm/Rx:1310nm, operating on a 80Km distance, with auto-negotiation 10/100 and MDI/MDI-X features for the Fast Ethernet RJ45 UTP interface. The A ending model must always be matched with a complementary B type converter for proper operation. Even without the SNMP management support, FMC series supportLink-Fault-Passthrough function (LFP- an extremely useful feature to easily debug faulty fiber links),Far-End-Faultfunction (FEF), acts on a Store-and-Forward switching platform and can carry Jumbo data packets up to 9K size. Used with their compatibleFMC-CH08fiber optic chassis they can be aggregated up to 16 units in a 19" wide and 2U height space only.
FMC series offer the same ability to be aggregated in a the centralFMC-CH08chassis, like their FIB1 managed counterparts. In an always changing and growing networking environment, such a versatile feature allows network operators to switch to higher density and aggregation hubs without the need to purchase new fiber optic converters. This simple, but so reliable idea, is making the FMC series media converters a very clever choice for data carriers and service providers.
|Interfaces:||RJ45 copper IEEE 802.3 10Base-T, 802.3u 100Base-TX compliant and SC, 100Base-FX compliant|
|Operating wavelength:||Tx:1550nm / Rx:1310nm single strand Bi-Directional|
|Ethernet interface:||Supports 10/100Base-T/TX, Full, Half duplex n-way (Auto-Negotiation).Supports Full, Half duplex, 10/100 speed manual selections.Transmission Packet Rate for 10/100Base-T/TX : 14880 per second/148800 per second.Copper TP cable 4 pair Cat. 3 or 5 UTP|
|Features:||FEF (Far-End-Fault) and LFP (Link-Fault-Pass through)|
|Operating distance:||80Km on 9/125um fiber|
|Optical connector:||single SC type(ST or FC available on demand)|
|Front LEDs:||PWR, LLF, Fiber Link, TP Link, Duplex, Speed|
|Power:||External 90-260V AC switching adapter 12VDC@1A with NEMA1-15(2 blades only), US type main plug|
|Temperature:||0 5°C (Operating); 0 7°C (Storage)|
|Humidity:||20 80% non condensing (Operating); 0 90% (Storage)|
|Consumption:||less than 4W|
|Dimensions(WxDxH):||73mm x 108mm x 23mm|
|Weight:||160g (without AC adapter)|
|Compliance:||FCC part 15, Subpart B, Class A,ANSI C63.4:2003CE EN55022:2006, Class AEN55024:1998+A1:2001+A2:2003LVD: EN 60 950-1:2001|
|Model||Distance||Lambda||Min. Output (dBm)||Sensitivity (dBm)||Power Budget (dB)|
