optical uplink module for FMUX01A, up to 120Km and BiDi options
The fiber optic multiplexer FMUX01A is one perfect choice for Point to Point transmission of several data interfaces over a single fiber optic circuit.

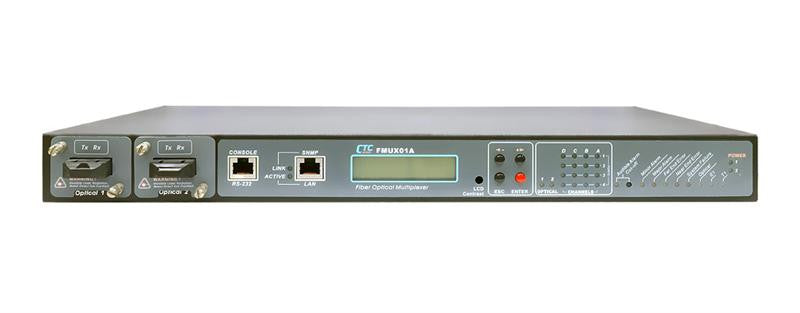

FMUX01A chassis is a 19" rack mountable and 1U height MODULAR fiber optic multiplexer. Chassis offers 4 identical slots for data ports, that can accommodate a large number of interfaces such as Ethernet, E1, T1, V.35, X.21, RS-449, RS-530 and RS-232. Each slot has a throughput capacity of 8Mbps.
FMUX01A has also 2 fiber optic slots with redundant backup function. The optical modules can work on distances from 2Km (multimode) up to 120Km (1550nm singlemode) as well as operating on single strand fiber optic WDM circuits on distances up to 60Km.
Ethernet data networks as well as TDM circuits, PBX links and GSM basestations or frame relay routers with synchronous ports can run together in point-to-point applications.FMUX01A can be managed through the local LCD display console . For advanced networks it is recommended to use the optional SNMP management module. A free GUI Windows based application for up to 100 nodes can provide graphic management for a small to medium network of FMUX01A. For big networks, SNMP module is a must and a professional NMS software is recommended, while FMUX01A has its own MIB file for management.
