FMUX1001 - modular E1, T1, POTS, serial and Gigabit Ethernet fiber multiplexer with redundant power slots

Fosco Connect Part No.: FMUX1001-CH

  • $ 930.00 or

FMUX1001 - modular E1, T1, POTS, serial, and Gigabit Ethernet fiber multiplexer with redundant power slots

Product description

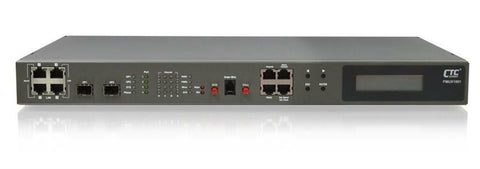

The FMUX1001 is a 1U, 19" rack mountable, PDH fiber optic multiplexer that transmits up to 16 channels plus a 10/100/1000Base-T Gigabit Ethernet channel over a single fiber optic link. The FMUX1001 chassis supports redundant power and a hot-swappable design. The AC supplies operate from 100~240VAC while DC supplies operate from 18~60VDC. From the rear of the chassis, one to four hot-swappable quad E1 or T1 line cards, serial data communications (V.35, X.21, RS-530), or FXO/FXS voice cards are supported. The standard FMUX1001 configuration may be viewed or set via the front panel LCD/menu keys, serial VT-100 terminal connection, Telnet, web HTTP, or SNMP.


  • 1U, 19 (23)” 4-slot chassis
  • 16 E1 (2.048Mb/s) or 16 T1 (1.544Mb/s) Multiplexer with 100/1000Mbps Ethernet and RS-232 data (async) Interface
  • RS-232 port for the system console
  • One alarm output port and one Order Wire port (RJ11 for handset)
  • 4x 10/100/1000Base-T Ethernet ports
  • SNMP management
  • LCD plus menu keys for local configuration
  • Port-based VLAN, tag-based VLAN & bandwidth control
  • Telnet and web-based remote configuration
  • 2 plug-in SFP slot for optical SFP module
  • Forward 1024K byte packets on Ethernet port

Technical Specifications
Optical Interface: SFP slot, data rate 1.25G, Bit Error Rate Less than 10-11
SFP options: fiber MM 62.2/125μm, 50/125μm, SM 9/125μm
SFP max. distance: MM 2km. SM 15/30/50/80/120km, WDM 20/40/60/80km
Electrical Interfaces: Console, SNMP RJ45, Ethernet 4x RJ45, Alarm RJ45
Standards: E1:ITU-T, T1:ITU-T, AT&T, ANSI, Ethernet: IEEE802.3x
LED Indicators: PWR, Alarm, Phone, ACO, Port, Channels
Power Input AC module IN : AC 90 ~ 264V, Out : DC 12V
Power Input DC module IN : DC 18 ~ 72V, Out : DC 12V
Power Consumption < 25W
Dimensions: 250 x 438 x 43mm (D x W x H)
Weight: 3.58 kg
Temperature: 0 ~ 50°C (Operating), 0 ~ 70°C (Storage)
Humidity: 10 ~ 90% non-condensing
Certification: CE, FCC
MTBF: 50,000 hrs
