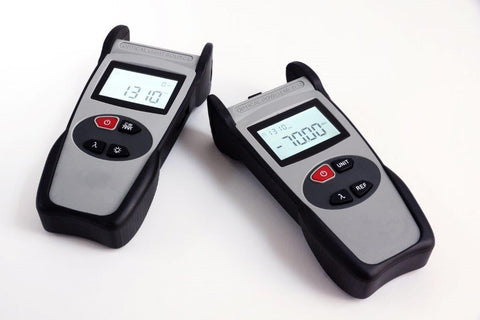

Power Meter
The Fosco power meter is meant to meet the high demands of fiber optic testing. It can be used for the absolute power measurement and relative measurement of the link loss in dB. Its compact size, user friendly interface, broad power measurement range, high precision and user automatic calibration function makes it a high performance testing device ideal for network testing. Different style adapter caps included.

Light Source
Fosco light sources include a dual wavelength multi-mode or single mode light source. When used with the Fosco Power Meter, together they provide accurate test solutions for fiber optic networks. Interchangeable adapters allow flexibility with reference cords.

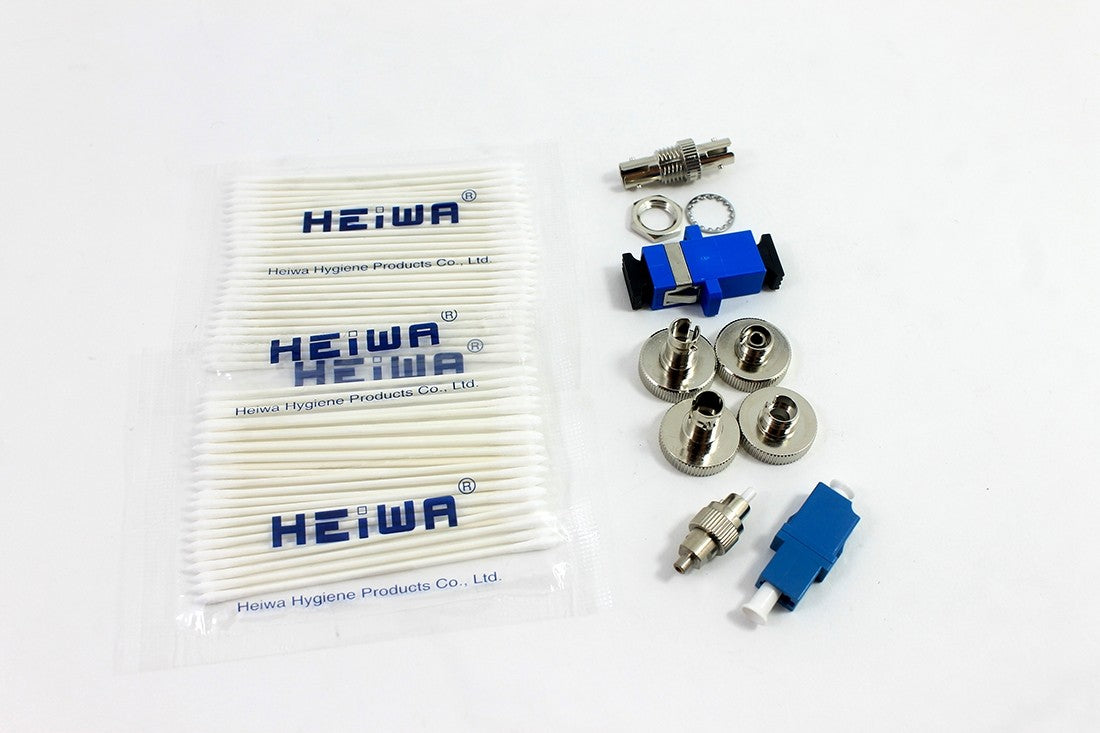

* Includes ST, SC, FC, Universal 2.5mm & 1.25mm Adapter Caps, Reference Cords, Mandrel, Mating Sleeves, Batteries

• Zero Set Reference Storage Ability at Each Wavelength
• 10 minute Auto Shut Off
• 40-Hour Battery Life
• Battery Level Indicator
• Protective Carrying Case
• Convenient Backlight screen
• 3 Alkaline AA Batteries

KIT INCLUDES

• E-Series HH PM w/2.5mm/1.25mm Adapters

• E-Series HH 1310/1550nm LS w/2.5mm Adapter

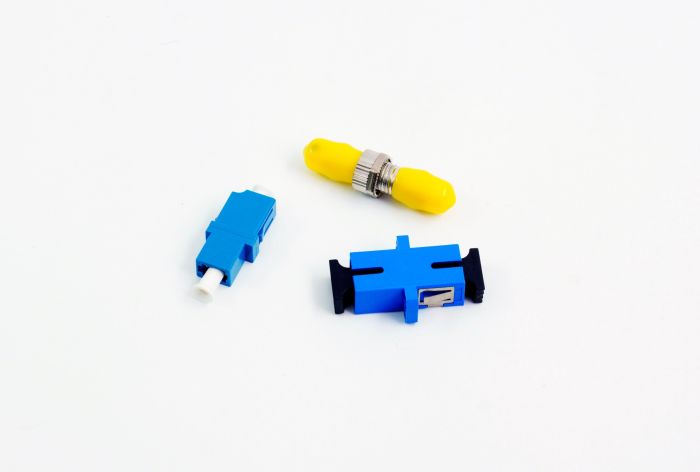

• LC SM Simplex Adapter Blue No Flange

• SC SM/MM Adapter Zirconia Sleeve Blue w/Flange

• ST SM/MM Simplex Zirconia Adapter

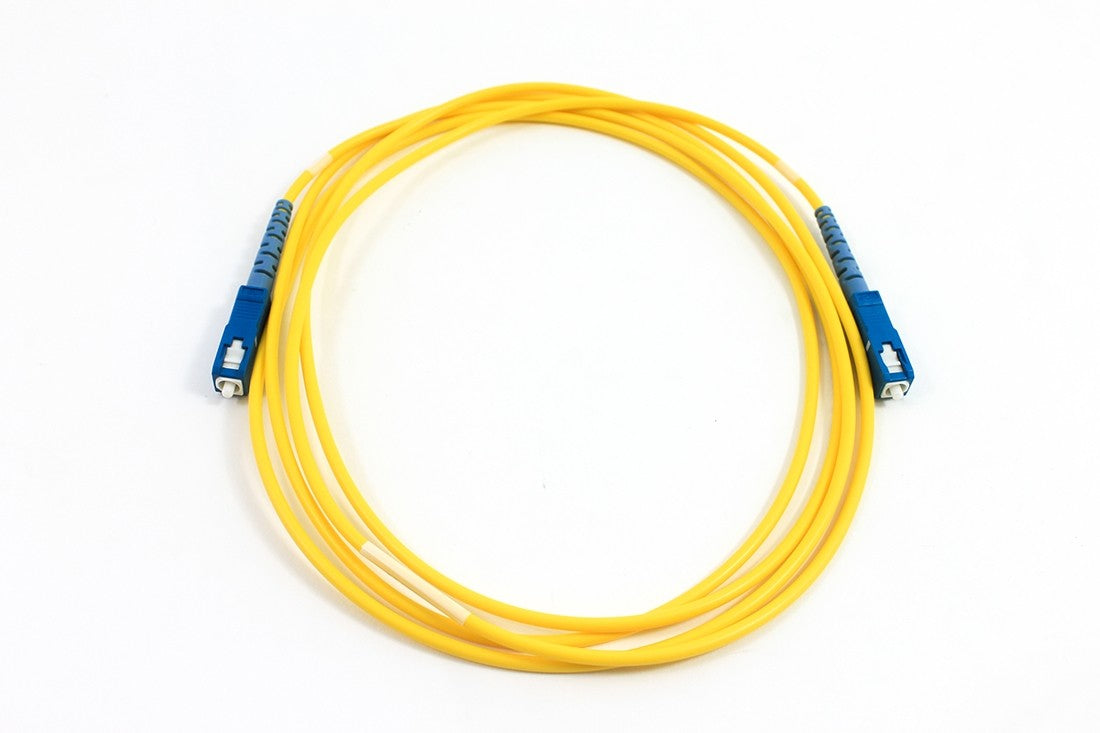

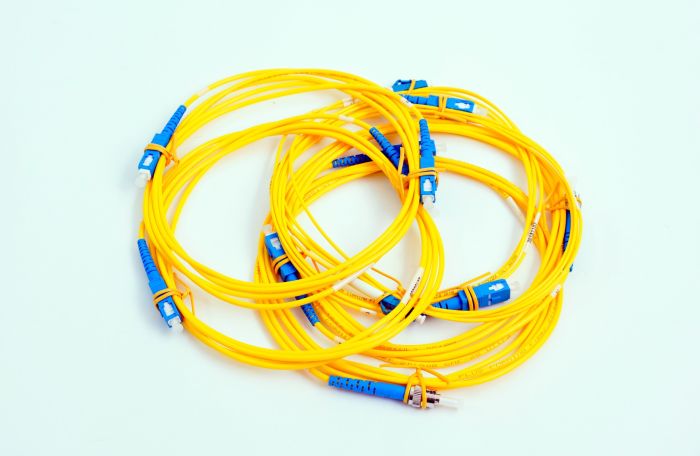

• Simplex 3mm SM 9/125 Ultra SC/UPC-SC/UPC 2 meter

• Simplex 3mm SM 9/125 Ultra ST/UPC-SC/UPC 2 meter

• Simplex 1.6mm SM 9/125 Ultra LC/UPC-SC/UPC 2 meter

SPECIFICATIONS

Optical Power Meter

• Wavelengths:  850, 1300, 1310, 1490, 1550, 1625nm

• Detector:  InGaAs Dynamic

• Dynamic Range: -70dBm to +6dBm

• Typical for Singlemode: CATV Model -45dBm to +23dBm

• Accuracy: ±5%

• Operating Temp.: -10° to 60°C

• Battery:  Alkaline, 3xAA , 1.5v

• Dimensions:  8” L x 3 1/2”W x 2” D

 Optical Light Source

• LED:  850nm & 1300nm

• Laser:  1310nm & 1550nm

• Output Power:  -7dBm

• Modulation Modes:  Continuous Wave, 270, 1kHz, 2kHz

• Operating Temp.: -10° to 56°C

• Battery: Alkaline, 3xAA , 1.5v

• Dimensions:  8” L x 3 1/2”W x 2” D

Download Product Specification
