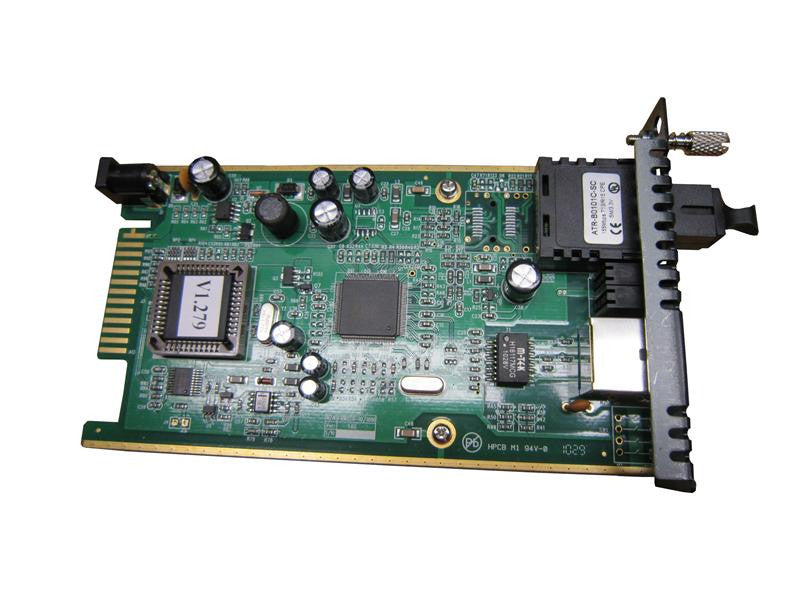

Fast Ethernet 10/100BaseTX to BiDi single strand single-mode in-band managed fiber converter, 20Km B

CTC Union Part No.: FRM220-10-100i-SC20B

  • $ 99.00 or

Product description
The FRM220-10-100I-SC20B Fast Ethernet BiDirectional WDM fiber media converter is a 10/100Base-TX to 100Base-FX single-mode Tx:1550nm/Rx:1310nm converter reaching up to 20km distance. The B type WDM BiDirectional converters must be paired with A type units using complementary Tx:1310/Rx:1550nm optical modules. Multiplexing two wavelengths on a single strand of fiber leads to significant fiber cable savings, doubling the plant capacity at literally no extra cost. Unit supports web-based and in-band management including powerful features like Bandwidth Limiting, Dying Gasp, Link-Loss-Forwarding, Remote-Monitoring-Status and Loop-Back-Test. FRM220-10-100I-SC20B can be managed when inserted into an FRM220 series chassis equipped with an FRM220-NMC management card. Remotely connected converters can be managed in-band over the fiber. Up to 8 big FRM220-CH20 chassis can be controlled with a single management card.
The FRM220 series converters are extremely versatile, being available in several versions of power supply:external AC adapter,embedded internal AC power,embedded internal DC neg. 48V powerordual combo embedded AC and DC power supply. Same model can also be installed in theFRM220chassis, in matter of minutes. In an always changing and growing networking environment, such a versatile model allows network operators to switch to higher density and aggregation hubs without the need to purchase new fiber optic converters. The FRM220-10-100I-SC20B Fast Ethernet media converter is a very powerful choice for media converter solution for data carriers and service providers.
Technical specifications

Interfaces: One RJ45 copper IEEE 802.3 10Base-T, 802.3u 100Base-TX and one 100Base-BX built-in fiber port for 802.3u standard
Connectors: One RJ-45 copper 10/100 Mbps and one single SC optical port 100Base-BX, Tx:1550/Rx:1310nm
UTP port: MDI/MDI-X, auto-negotiation, Full/Half Duplex, max. packet 2046 bytes - switch/ 9K bytes - converter
Optical slot: 1 x 9 single SC transceiver, Tx:1550/Rx:1310nm, up to 20Km on 9/125um single-mode single strand fiber
Front LEDs: Power, FEF, FX-Link, TX-SPD, Tx-Duplex, Tx-Link
Power: External 90-260V AC switching adapter 12VDC@1A with NEMA1-15(2 blades only), US type main plug
Temperature: 0 6°C (Operating); -10 7°C (Storage)
Humidity: 10 90% non condensing
Consumption: less than 4W
Dimensions(WxDxH): 88mm x 155mm x 23mm
Weight: 340g (without AC adapter)
Compliance: CE, FCC Class A, LVD, RoHS
MTBF: 65,000 hours

Fiber power budget for the 20Km single strand Bi-Directional WDM models

Model Distance Lambda Min. Output (dBm) Sensitivity (dBm) Power Budget (dB)
FRM220-10-100I-SC20A 20Km Tx:1310nm Rx:1550nm -15 -32 17
FRM220-10-100I-SC20B 20Km Tx:1550nm Rx:1310nm -18 -32 14
