Gigabit Ethernet 10/100/1000BaseTx to 1000Base-ZX single-mode fiber media converter w/ web based man

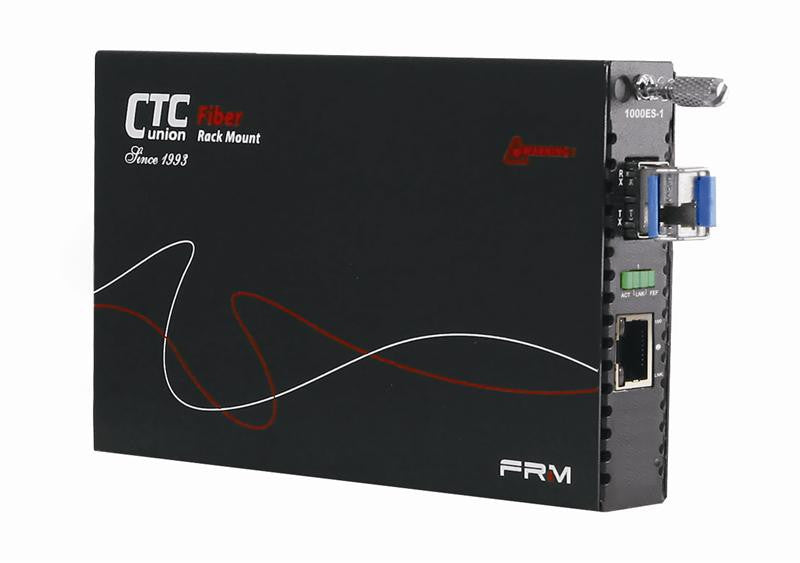

The FRM220-1000ES-SM80 is an extremely versatile Gigabit Ethernet fiber media converter for 10/100/1000Base-T copper to Gigabit 1000Base-ZX single-mode 80Km, 1550nm SFP optical interface. Unit supports web-based and in-band management including powerful features like Bandwidth Limiting, Dying Gasp, Link-Loss-Forwarding, Remote-Monitoring-Status and Loop-Back-Test. These features are available when unit is inserted into the FRM220 in-band managed fiber chassis. FRM220-1000ES-SM80 has a single-mode 1000Base-ZX miniGBIC (SFP) optical module installed. The Gigabit copper interface has auto-negotiation and speed selection from 10 to 1000 Mbps.
The FRM220-1000ES-SM80 Gigabit Ethernet converter is extremely versatile, being available in several versions of power supply:external AC adapter,embedded internal AC power,embedded internal DC neg. 48V powerordual combo embedded AC and DC power supply. Same model can also be installed in theFRM220chassis, in matter of minutes. In an always changing and growing networking environment, such a versatile model allows network operators to switch to higher density and aggregation hubs without the need to purchase new fiber optic converters. The FRM220-1000ES-SM10 Gigabit Ethernet media converter is one of the best choices of media converters for data carriers and service providers.
|Interfaces:||RJ45 copper IEEE 802.3 10Base-T, 802.3u 100Base-TX, 802.3ab 1000Base-T and SFP transceiver for 802.3z 1000Base-ZX|
|Connectors:||RJ-45 copper 10/100/1000 Mbps and dual LC SFP port|
|UTP port:||MDI/MDI-X, auto-negotiation, Full/Half Duplex, max. packet 1536 bytes|
|Optical slot:||dual LC, single-mode, 1550nm, max. range 80Km on 9/125um fiber|
|Front LEDs:||PWR, LLF, Fiber Link, TP Link, Duplex, Speed|
|Power:||External 90-260V AC switching adapter 12VDC@1A with NEMA1-15(2 blades only), US type main plug|
|Temperature:||0 5°C (Operating); 0 7°C (Storage)|
|Humidity:||20 80% non condensing (Operating); 0 90% (Storage)|
|Consumption:||less than 4W|
|Dimensions(WxDxH):||85.6mm x 122.6mm x 20mm|
|Weight:||340g (without AC adapter)|
|Compliance:||CE, FCC Class A|
