FRM220-10G-3R - 10G rate SFP+ to SFP+ slot media converter (transponder) with two independent channels
FRM220-10G-3R - 10G rate SFP+ to SFP+ slot media converter (transponder) with two independent channels
Note: The FRM220-10G-3R dual-channel configurable transponder is available in card format only. A separate FRM220 casing must be ordered to use the transponder in standalone mode.
Product description

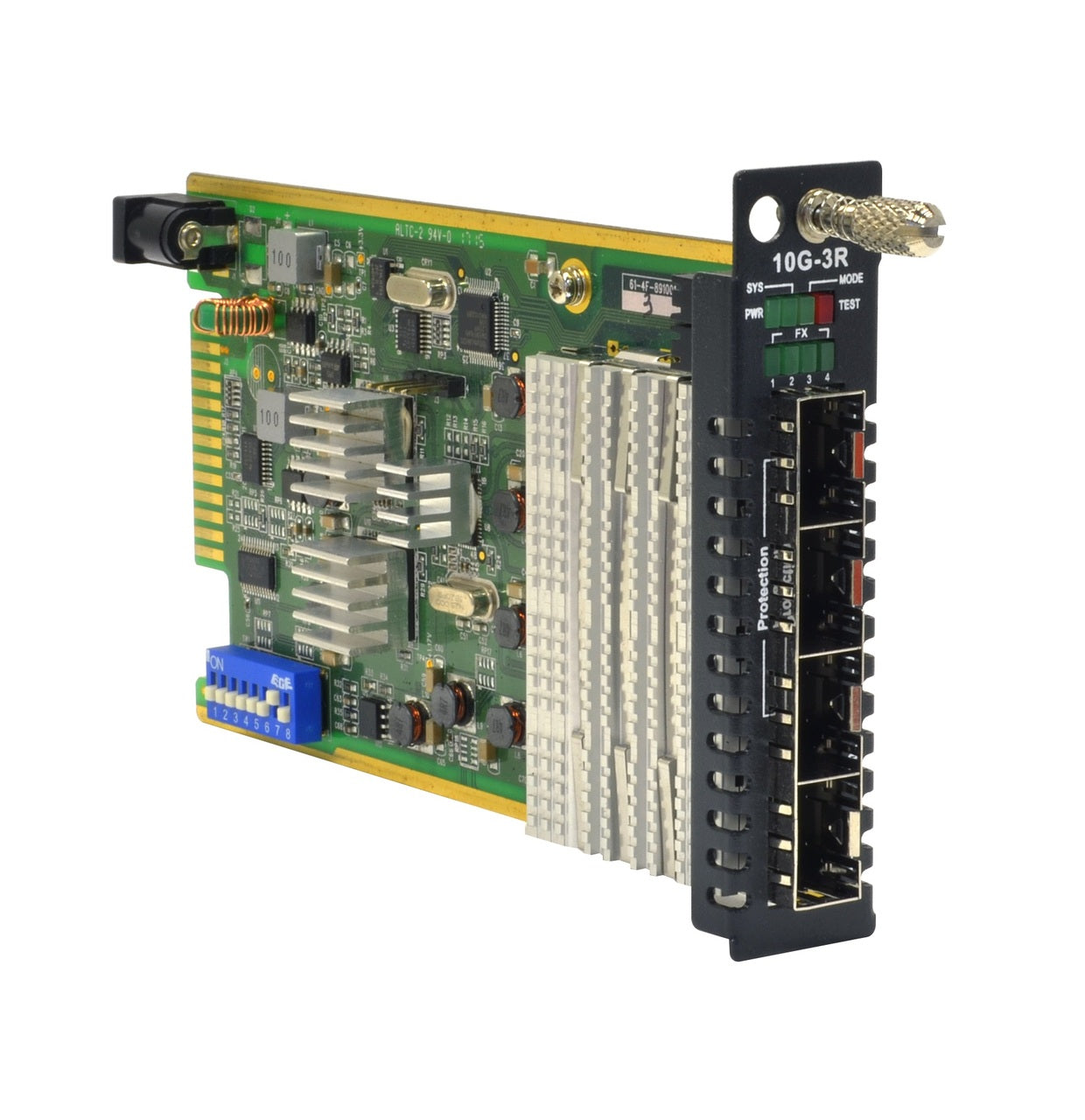

The FRM220-10G-3R transponder card is an extremely versatile all-optical fiber media converter/transponder. The unit has two independent 10G channels equipped with SFP+ slots and can also be configured in optical protection mode. Any 10GBase transceiver (multimode or single-mode) or DWDM/CWDM SFP+ module can be installed in any of the SFP+ slots of the FRM220-10G-3R transponder card. Also copper direct attach cables (DAC's) are supported by the FRM220-10G-3R transponder. The unit supports web-based, in-band management telnet, SNMP, or console management when installed in the FRM220-CH20 chassis or in the small standalone casing of FRM220-CH02M that provides a separate console port. The transponder card supports multi-protocol 10G data rates including 10G Ethernet, STM-64, SONET OC192, or 10G Fibre Channel.
The FRM220-10G-3R all-optical 10G converter is extremely versatile. You can have the transponder installed in the small FRM220-CH02M casing with a choice of AC, DC(-48V), or AC+DC power supply or on the 8 or 20 slot FRM220 chassis with 2U and 19" rack-mountable size, in a matter of minutes. In an always changing and growing networking environment, such a versatile model allows network operators to switch to higher density and aggregation hubs without the need to purchase new fiber optic converters.
Product Installation Manual
Technical specifications
| Interfaces: | Four SFP+ slots supporting 10G Ethernet, OC-192, STM-64, 10G FC (10.51875G), OTN G.709 or OTU2 (10.709225G) data rates |
| Connectors: | SFP+ slots with LC optical connectors, supporting SR, LR, ER, ZR, CWDM or DWDM optics as well as DAC copper and optical cables |
| Front LEDs: | PWR,Line Link, Client Link, Test, Loopback, Alarm, Active port |
| Power: | Internal 90-260V AC power supply with NEMA1-15(2 blades only), US type main plug or DC -48V with IEC 3 screw block connector |
| Temperature: | 0~50°C (Operating); 0~70°C (Storage) |
| Humidity: | 10~90% non-condensing |
| Consumption: | less than 10W |
| Dimensions(WxDxH): | 155mm x 88mm x 23mm without power casing |
| Weight: | 150g (card only) |
| Compliance: | CE, FCC, LVD, RoHS |
| MTBF: | 65,000 hours |
