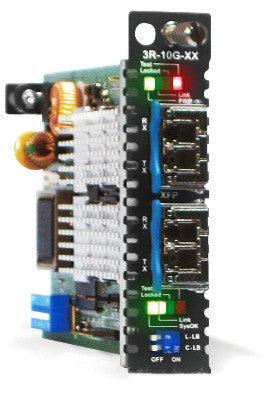

10G rate XFP to XFP slot media converter (transponder) w/ web based management support
Move your mouse over image or click to enlarge

10G rate XFP to XFP slot media converter (transponder) w/ web based management support

CTC Union Part No.: FRM220-10G-XX

  • $ 1,199.00 or

The FRM220-10G-XX transponder card is an extremely versatile all-optical fiber media converter equipped with two 10G rate XFP slots. Any 10GBase transceiver (multi-mode or single-mode) or DWDM/CWDM XFP module can be installed in each of the XFP slots of FRM220-10G-XX transponder card.

Unit supports web-based, in-band management telnet, SNMP or console management when installed in theFRM220-CH20 chassis or in the small standalone casing of FRM220-CH02M that provides a separate console port.

The transponder card supports multi-protocol 10G data rates including 10G Ethernet, STM-64, SONET OC192 or 10G Fibre Channel.

The FRM220-10G-XX all-optical 10G converter is extremely versatile. You can have the transponder installed in the small FRM220-CH02M casing with choice of AC, DC(-48V) or AC+DC power supply or on the 20 slotFRM220 chassis with 2U and 19" rack mountable size, in matter of minutes.

In an always changing and growing networking environment, such a versatile model allows network operators to switch to higher density and aggregation hubs without the need to purchase new fiber optic converters. The FRM220-10G-XX 10G rate media converter is one of the best choices for data carriers and service providers.

Technical specifications

Interfaces: Two XFP slots supporting 10G Ethernet, OC-192, STM-64, 10G FC (10.51875G), OTN G.709 or OTU2 (10.709225G) data rates
Connectors: XFP slots with LC optical connectors
Front LEDs: PWR,Line Link, Client Link, Test, Loopback, Alarm, Active port
Power: Internal 90-260V AC power supply with NEMA1-15(2 blades only), US type main plug or DC -48V with IEC 3 screw block connector
Temperature: 0 5°C (Operating); 0 7°C (Storage)
Humidity: 10 90% non-condensing
Consumption: less than 10W
Dimensions(WxDxH): 155mm x 88mm x 23mm without power casing
Weight: 150g (card only)
Compliance: CE, FCC, LVD, RoHS
MTBF: 65,000 hours
Product Sheet:
