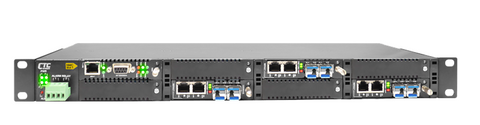

8 slot fiber chassis with dual power and network management options, rack 19", 1U
Move your mouse over image or click to enlarge

8 slot fiber chassis with dual power and network management options, rack 19", 1U

CTC Union Part No.: FRM220-CH08

  • $ 269.00 or

Product description
The new chassis has only 8 slots for FRM220 compatible media converters and also two slots for dual redundant power supplies. Same power supplies from FRM220-CH20 can be ordered for FRM220-CH08 chassis. Among the converters for FRM220 we can mention theFRM220-1000EASGigabit dual channel converter card (2 Gigabit copper to SFP converters in same card) or the FRM220-1002ES dual channel converter, leading to a density of 16 Gigabit ports per only 1U of rackmount space,FRM220-10-100IFast Ethernet in-band managed series converters,FRM220-FXO/FXSPOTS over Fiber media converter series andFRM220-SERIALRS-232/422/485 to fiber converters. The new FRM220-CH08 chassis offers same 19" or 23" mounting options with only 1U of space used, saving vital rack space when necessary. Chassis is a perfect choice for high density in-band, web based or SNMP based, managed fiber converters with support for 802.3ah standard.
The chassis provides redundant power supply system with "hot swap" feature, to provide continuous smooth operation of the units installed. It can accomodate bot AC (110V) and DC (48V) power supply units, either in mixed or same type of power input.
Technical specifications

Material: Painted Stainless steel chassis, 1U height, 19" or 23" wide mounting system, accepting up to 8 FRM220 series converters
Compatibility: Accepts all models of media converters from FRM220 series, hot swappable converters (allowing changing of individual converters during operation)
Management: In-band Network Management Card (NMC) supporting console, telnet, SNMP or web-based management
Features: supports auto recovery function, restoring all system settings to original working status when the power is resumed
Cards: 8 slots for FRM220 series media converters, 2 slots for power supply units, optional one slot can be used for NMC management card
Power: 90-260V AC or -18 to -56V DC hot swappable power supply units, 2 slots available on chassis
Temperature: 0 5°C (Operating); 0 7°C (Storage)
Humidity: 20 80% non condensing (Operating); 0 90% (Storage)
Power Consumption: 55W
Dimensions(WxDxH): 440mm x 140mm x 89mm
Weight: 3.875Kg (Single AC power unit, unpopulated chassis)
Compliance: CE Mark, FCC part 15 Class A
MTBF: 80,000 hours

Product Sheet:
