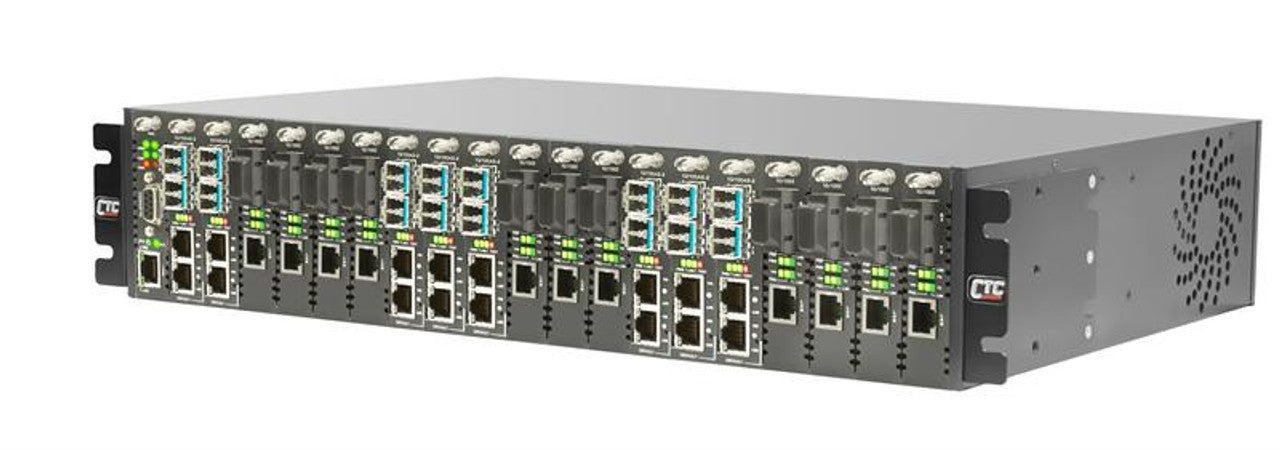

(FRM220-CH20) 20 slot fiber chassis with dual power and network management options, rack 19"
Note:

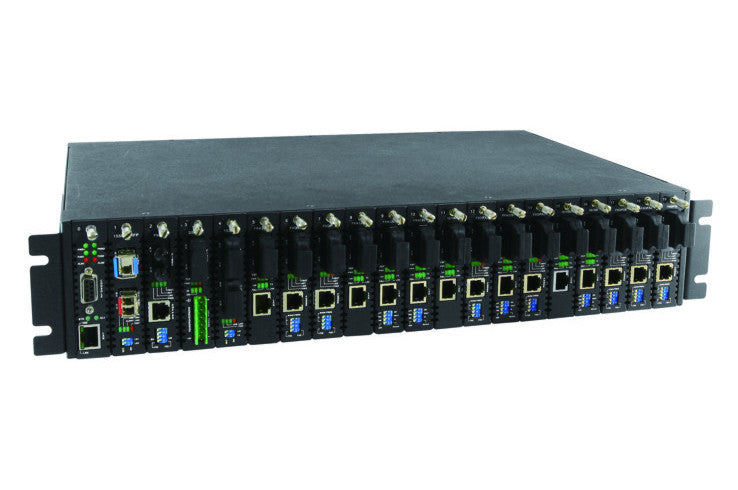

Photo shows chassis fully loaded. You will only get the main chassis here with fans and common bus. Chassis sold is empty (no cards) and no power supplies installed or management card present.
FRM220-AC is the AC power supply, FRM220-DC48 is DC 36~72V power supply and FRM220-NMC is the management card, that can be ordered separately from the main chassis.
Product description
The FRM220 is the newest fiber media converter chassis available from FOSCO.
Chassis has 20 slots for FRM220 compatible media converters, including
- FRM220-1000EAS Gigabit dual channel converter card (2 Gigabit copper to SFP converters in same card, leading to a high density 38 port Gigabit converters per only 2U of rackmount space
- FRM220-10-100I Fast Ethernet in-band managed series converters
- FRM220-FXO/FXS POTS over Fiber media converter series
- FRM220-SERIAL RS-232/422/485 to fiber converters.
FRM220 chassis is best choice of high density in-band, web based or SNMP based, managed fiber converters with support for 802.3ah standard.

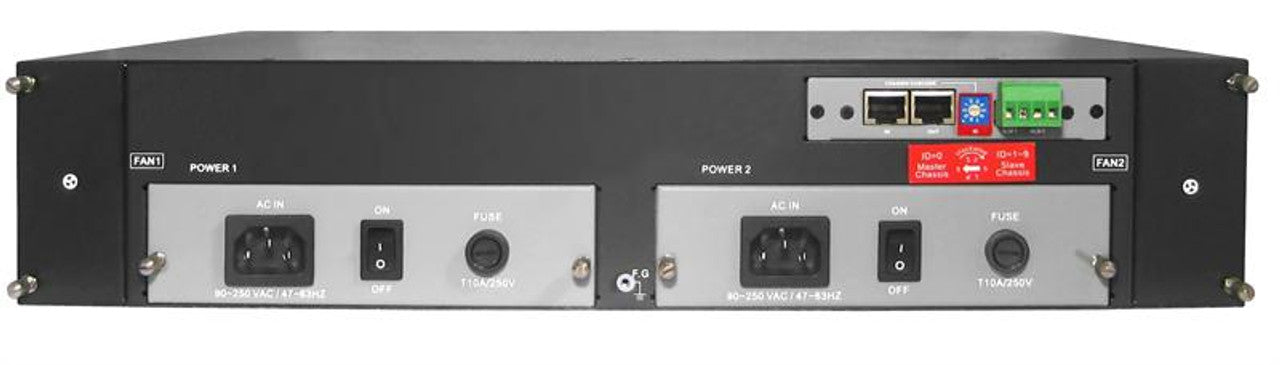

The chassis provides redundant power supply system with "hot swap" feature, to provide continuous smooth operation of the units installed. It can accomodate bot AC (110V) and DC (48V) power supply units, either in mixed or same type of power input.
Technical specifications
| Material: | Painted Stainless steel chassis, 2U height, 19" (or 23" with optional brackets) wide mounting system, accepting up to 20 FRM220 series converters |
| Compatibility: | Accepts all models of media converters from FRM220 series, hot swappable converters (allowing changing of individual converters during operation) |
| Management: | In-band Network Management Card (NMC) supporting console, telnet, SNMP or web-based management |
| Features: | supports auto recovery function, restoring all system settings to original working status when the power is resumed |
| Cards: | 20 slots for FRM220 series media converters, 2 slots for power supply units, optional one slot can be used for NMC management card |
| Power: | 90-260V AC or -18 to -56V DC hot swappable power supply units, 2 slots available on chassis |
| Temperature: | 0 - 50°C (Operating); 0 - 70°C (Storage) |
| Humidity: | 20 80% non condensing (Operating); 0 90% (Storage) |
| Power Consumption: | 110W |
| Dimensions(WxDxH): | 440mm x 280mm x 89mm |
| Weight: | 7.875Kg (Single AC power unit, unpopulated chassis) |
| Compliance: | CE Mark, FCC part 15 Class A |
| MTBF: | 80,000 hours |
Additional information on FRM220:
PDF datasheet; PDF User Manual.
