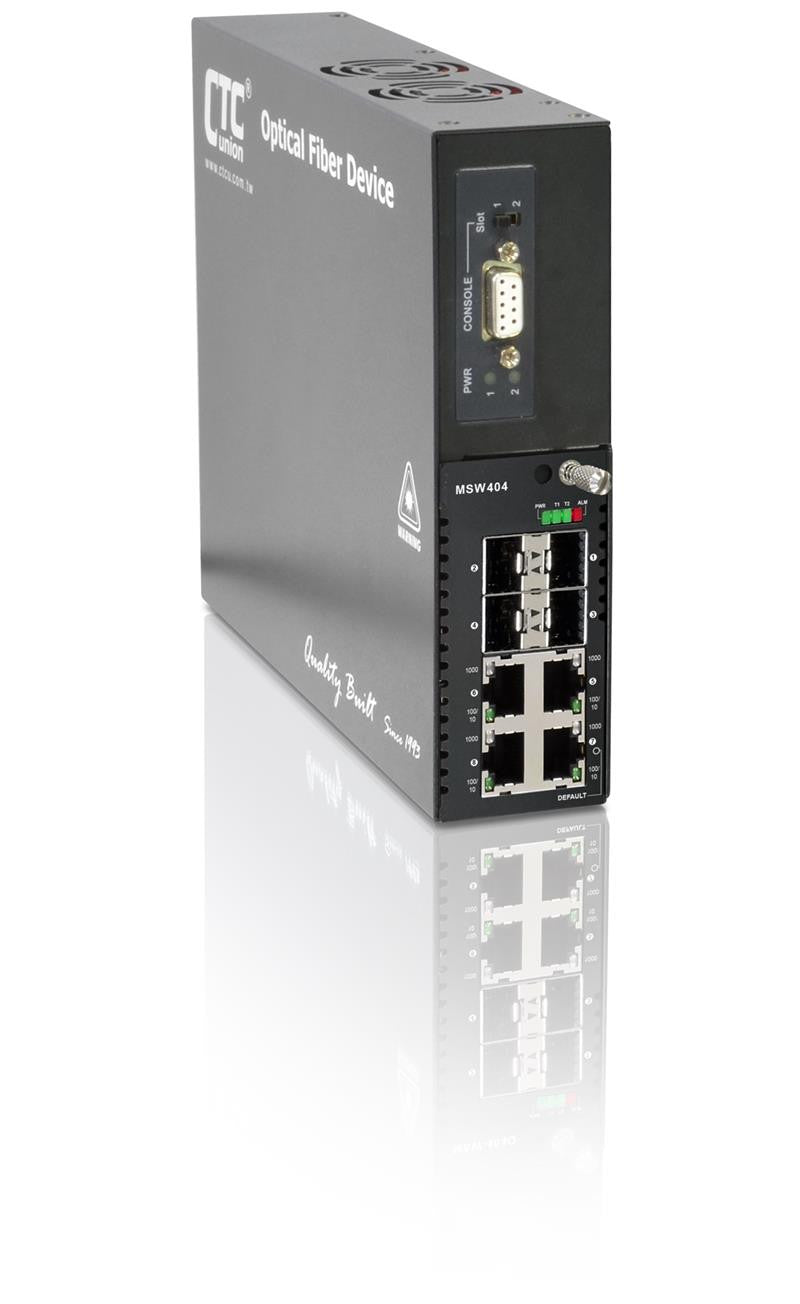

FRM220-MSW404 Gigabit Ethernet EDD switch (Ethernet Demarcation Device) for Metro Ethernet networks w/ full 802.3ah OAM support (NID)
Product description
FRM220-MSW404 is the new generation of carrier grade Ethernet demarcation device for business connectivity and mobile backhaul transportation service delivered by carriers. The FRM220-MSW404 is equipped 4 SFP slots in dual rate 100/1000Base-X and 4 ports 10/100/1000Base-T RJ45 network interfaces. It is designed to enable E-Line, E-LAN, E-Tree services which are CE (Carrier Ethernet) 2.0 compliant for Metro Ethernet network deployments. The FRM220-MSW404 device enables carriers and service providers to delivered SLA-based network service with extensive fault detection and diagnostic capabilities which are compliant with the latest Ethernet OAM standards such as IEEE 802.3ah, IEEE 802.1ag and ITU-T Y.1731. With built-in RFC2544 feature sets, The FRM220-MSW404 also enables the service providers to perform the SLA verification anytime to ensure the quantitative latency, jitter and throughput delivery performance indexes. The CE2.0 compliant functions support EVCs and hierarchical QoS traffic management to enable service providers managing bandwidth and enforce SLA guaranteed.
Technical specifications
FRM220-MSW404 is the new generation of carrier grade Ethernet demarcation device for business connectivity and mobile backhaul transportation service delivered by carriers. The FRM220-MSW404 is equipped 4 SFP slots in dual rate 100/1000Base-X and 4 ports 10/100/1000Base-T RJ45 network interfaces. It is designed to enable E-Line, E-LAN, E-Tree services which are CE (Carrier Ethernet) 2.0 compliant for Metro Ethernet network deployments. The FRM220-MSW404 device enables carriers and service providers to delivered SLA-based network service with extensive fault detection and diagnostic capabilities which are compliant with the latest Ethernet OAM standards such as IEEE 802.3ah, IEEE 802.1ag and ITU-T Y.1731. With built-in RFC2544 feature sets, The FRM220-MSW404 also enables the service providers to perform the SLA verification anytime to ensure the quantitative latency, jitter and throughput delivery performance indexes. The CE2.0 compliant functions support EVCs and hierarchical QoS traffic management to enable service providers managing bandwidth and enforce SLA guaranteed.
Highlights
MEF 9, MEF 14: EPL and EVPL
Support 8K MAC
Spanning Tree 802.1D, 802.1s, 802.1w
Support 802.1q / 256 active VLANs
Double VLAN Tagging (C-tag/S-tag) (IEEE 802.1ad)
support for ISP application
Various QoS capability (MAC/port/802.1p/Diffserv)
Port-based rate limiting
DHCP Snooping
IGMP Snooping
IPv6 support
802.3x and 802.1x support
Jumbo frame for up to 9.6K
Extensive OAM-P support
- 802.3ah OAM
- 802.1ag & Y.1731
SNMP v1/v2c/v3, Telnet, Web GUI
Technical specifications
| Interfaces: | Four RJ45 copper IEEE 802.3 10Base-T, 802.3u 100Base-TX, 802.3ab 1000Base-T and four SFP slots for 802.3z 100/1000Base- SX/LX/ZX standards |
| Connectors: | 4 x RJ-45 copper 10/100/1000 Mbps and 4 x SFP slot 100/1000Mbps, DB9 RS232 serial console for management |
| UTP port: | MDI/MDI-X, auto-negotiation, Full/Half Duplex, max. packet 9.6Kbytes (Jumbo support) |
| Optical slot: | Small Form Pluggable - supports Auto and Forced mode operation and dual rate 100 and 1000 Base-X operation |
| Front LEDs: | FEF, Fiber Link 1, Fiber Link 2, ACT, Link 3, Link 4 |
| Power: | Internal 90-260V AC switching power supply, 3 pin IEC connector C14, AC power cord C13 with US style main plug included in package |
| Temperature: | 0~50°C (Operating); -20~80°C (Storage) |
| Humidity: | 10~90% non condensing (Operating); 0 90% (Storage) |
| Consumption: | less than 20W |
| Dimensions(WxDxH): | 168mm x 220mm x 40mm |
| Weight: | 460g (without power cord) |
| Compliance: | CE, FCC Class A |
| MTBF: | 65,000 hours |
Note: For SFP transceiver modules that can be used together with the FRM220-MSW404 switch
