FS-AP-T566, Wi-Fi 6 802.11ax 1800 Mbps Outdoor Access Point, Seamless Roaming & 2 x 2 MU-MIMO Dual Radios, PicOS®, Manageable via AmpCon-Campus (Without PoE Injector）

FS-AP-T566 is an outdoor Wi-Fi 6 (802.11ax) access point that supports 2.4 GHz (2×2) and 5 GHz (2×2), delivering up to 1.8 Gbps of aggregated data rate. Its housing is designed with IP67 protection for extreme indoor and outdoor environments.

It can withstand harsh weather and environmental conditions, significantly reducing installation and maintenance efforts. Purpose-built for outdoor and industrial settings such as campuses, public spaces, and transportation hubs.

Specifications

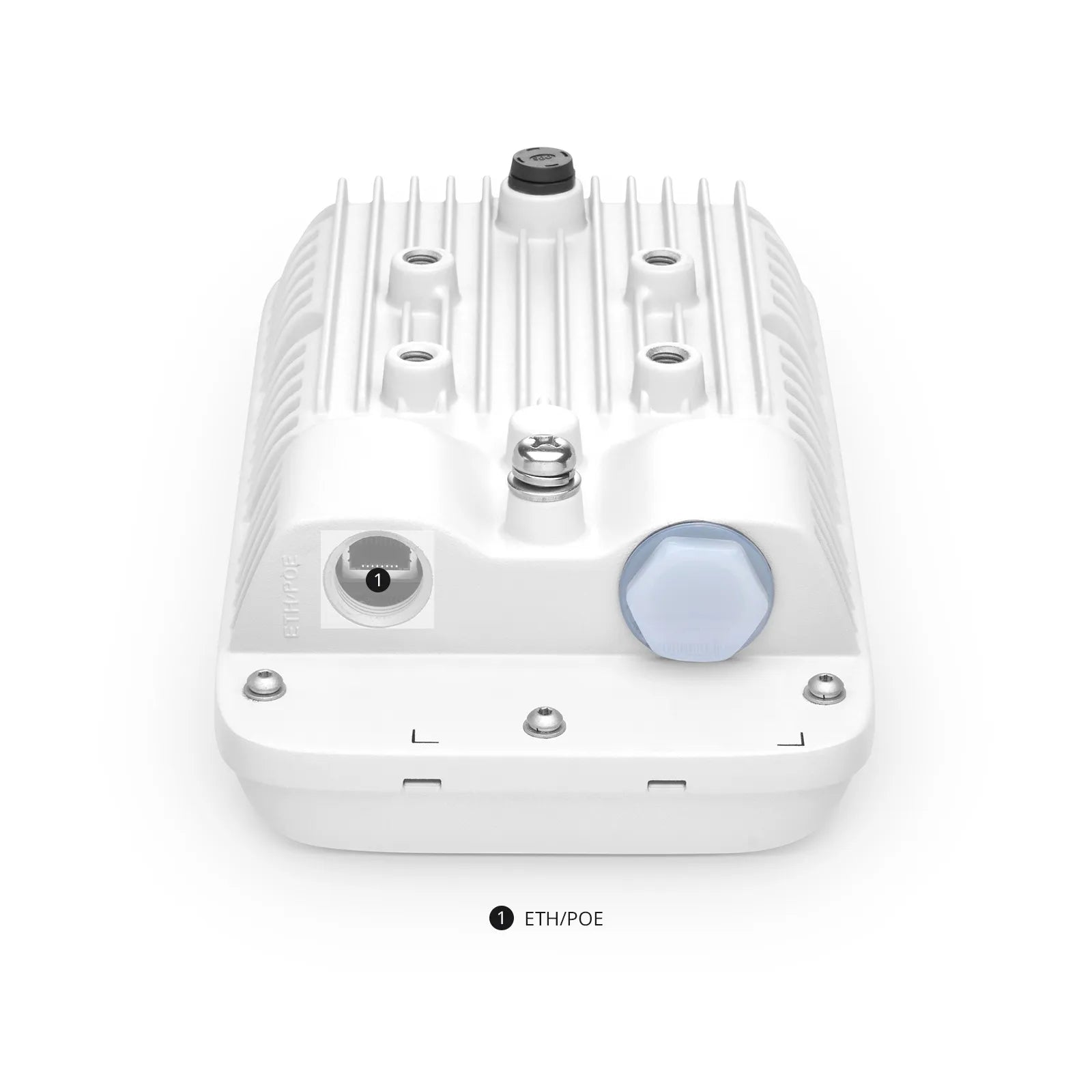

• Wired Interfaces: 1x 10/100/1000/2.5GBase-T Ethernet Port

• Wireless Standards: 802.11a/b/g/n/ac/ax

• Antenna Type: Built-in 120° Directional Antennas

• Frequency Band: 2.4 GHz and 5 GHz

• Antenna Gain: 5 dBi (2.4 GHz) , 7 dBi (5 GHz)

• Transmission Rate: 1800 Mbps

• AP Chip: Qualcomm IPQ6028

• MIMO: 2.4 GHz: 2x2:2, 5 GHz: 2x2:2

• Power Supply: IEEE802.3af/at POE

• Multiple SSIDs: 32

• Power Consumption: ＜15W

• Reference Coverage Radius: 150-200m

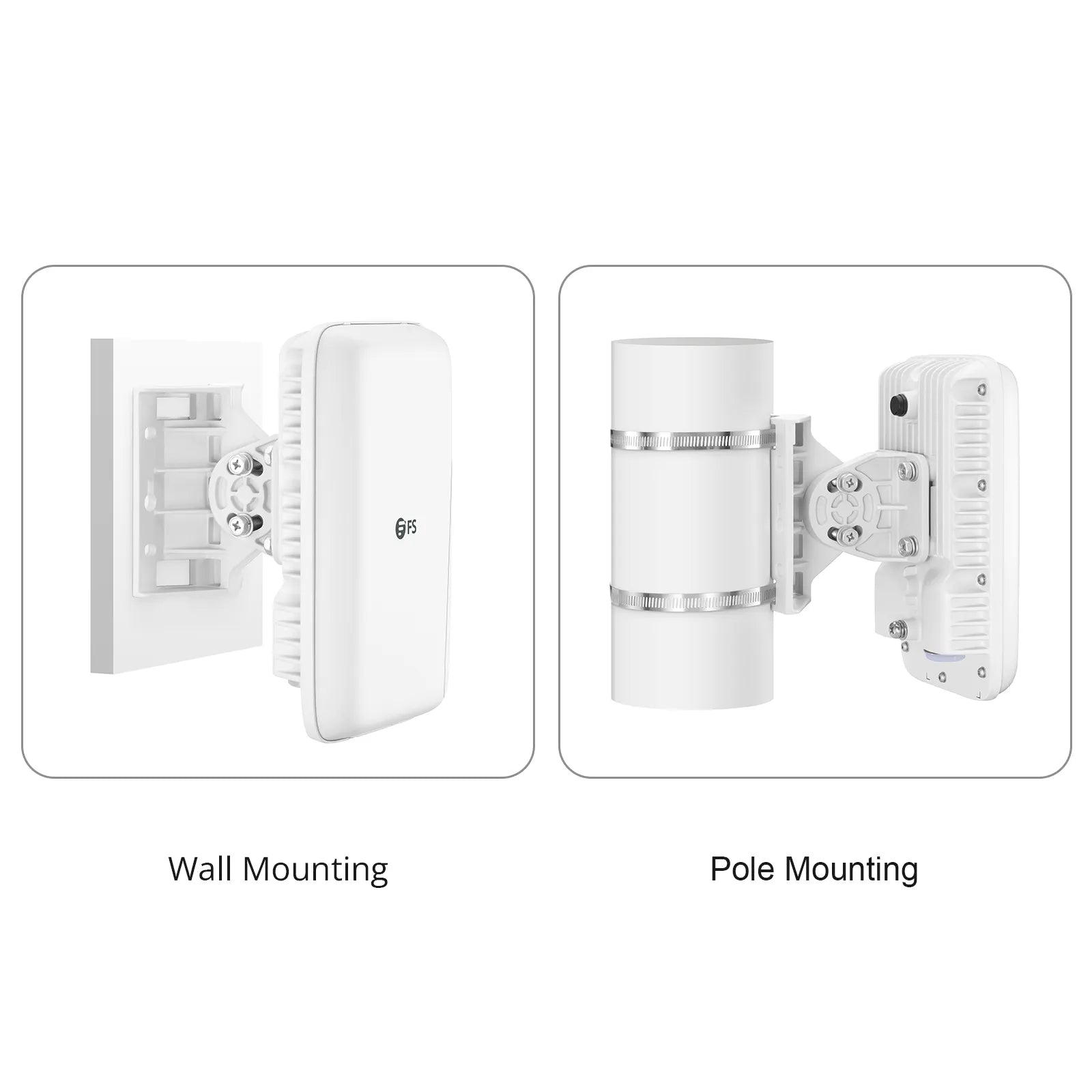

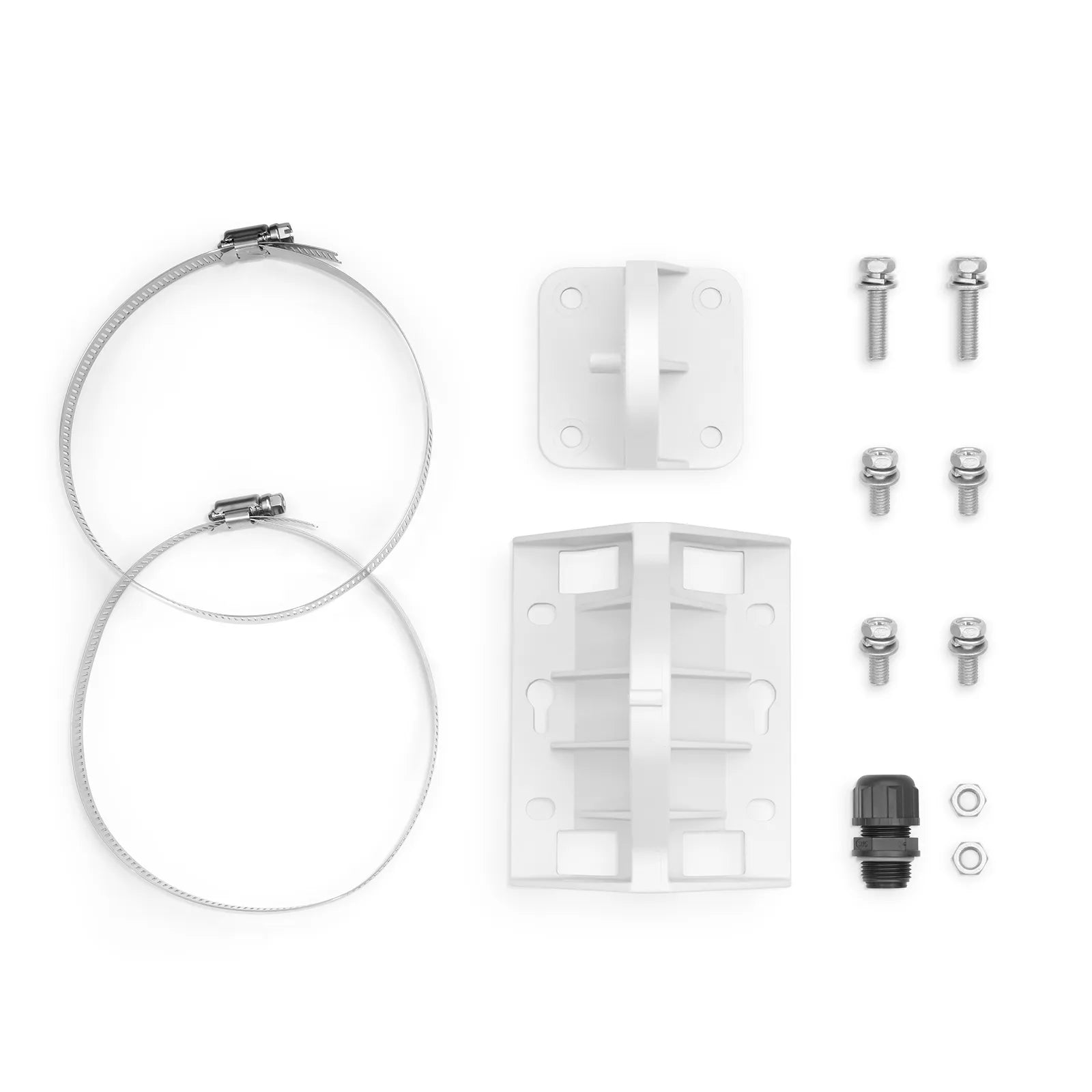

• Mount: Wall/Pole

• Max Number of Users: 256

• Dimensions (HxWxD): 10.24"x5.51"x2.80" (260x140x71mm)

• Recommended Number of Users: 64

• Operating Temperature: -40 to 65°C（-40 to 149°F）

• Dustproof and Waterproof Level: IP67

• Storage Temperature: -40 to 85°C（-40 to 185°F）

• Environment: Outdoor

Product Highlights

• AmpCon-Campus Automates Deployment

• Dual Radios 1800 Mbps: 2.4 GHz (2x2), 5 GHz (2x2)

• IP67 Outdoor Rated for Harsh Environments

• Seamless Roaming for Stable Mobile Connectivity

• Mesh Connects APs Wirelessly for Extended Range

• WPA3 Encryption for Wi-Fi Connection Security

• OFDMA and MU-MIMO for Multi-user Transmission

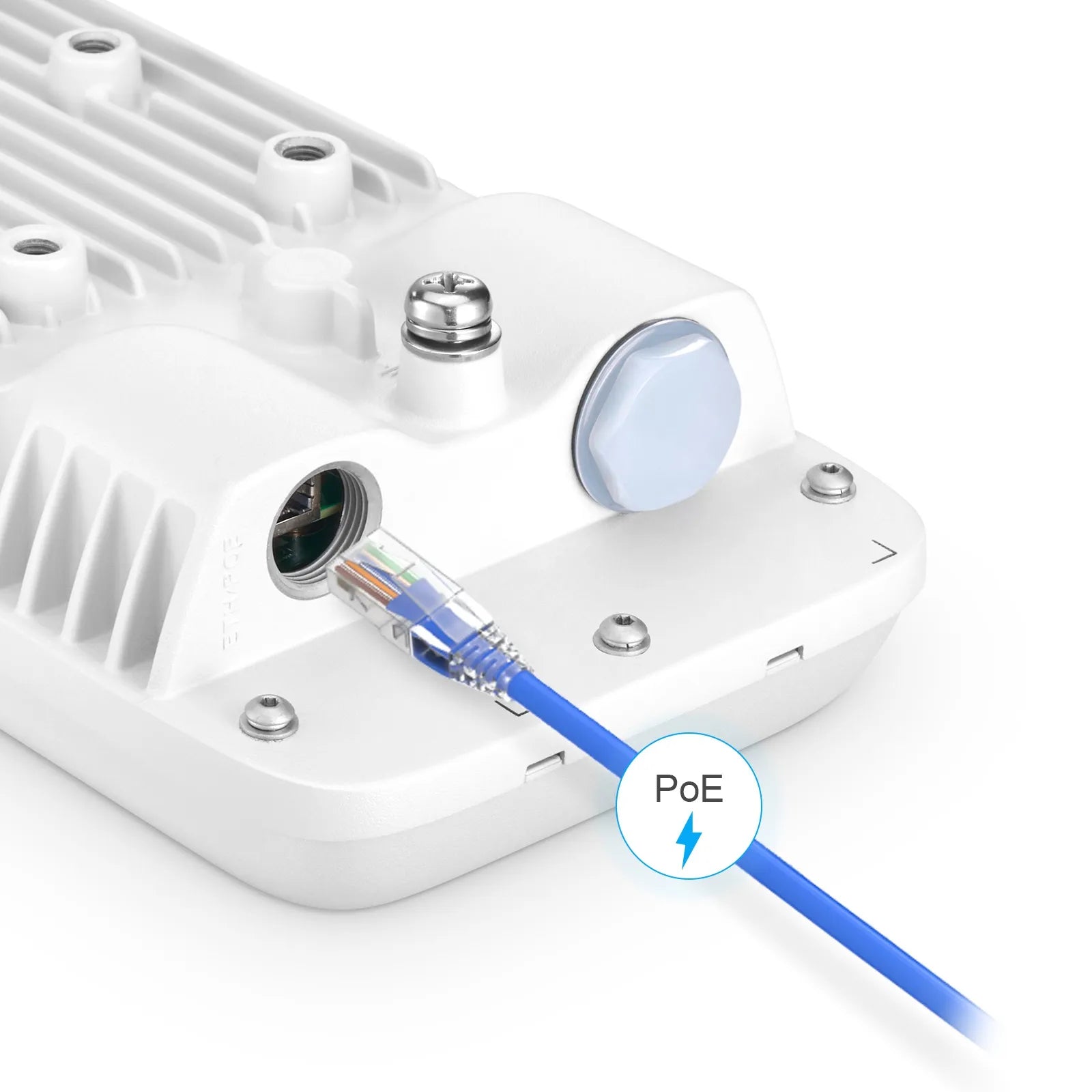

• Powered Using PoE Switch
• SSIDs: 32
• Management: AmpCon-Campus
• IP Rating: IP67
• Recommended For: Campuses, public spaces, and transportation hubs

AmpCon-Campus Unified Management

AmpCon-Campus Management Platform
Fully onboarded (Day 0), provisioned (Day 1), and managed (Day 2+) by Ampcon-Campus. The platform centrally manages APs and switches running the PicOS®, combining rich telemetry data, automated deployment, and topology visualization to enable unified wired and wireless operations, delivering an efficient, intelligent, and visible network solution.

Ultimate Speed and Capacity with Wi-Fi 6
Designed to deliver faster, smoother connections with 256 devices capacity for varied and complex outdoor scenarios.

IP67 Weatherproof Enclosure for Outdoor Environments
IP67 rating for water and dust resistance, wide temperature range and lightning protection, withstanding the most extreme environments.

Focused Coverage and Strong Signal with Built-in Directional Antennas
Equipped with 26dBm high transmit power, provides expansive wireless coverage.

Mesh Networking for Easy Deployment
With Mesh technology, the AP-T566 wirelessly extends your Wi-Fi coverage to hard-to-wire areas, eliminating the need for additional cabling.
