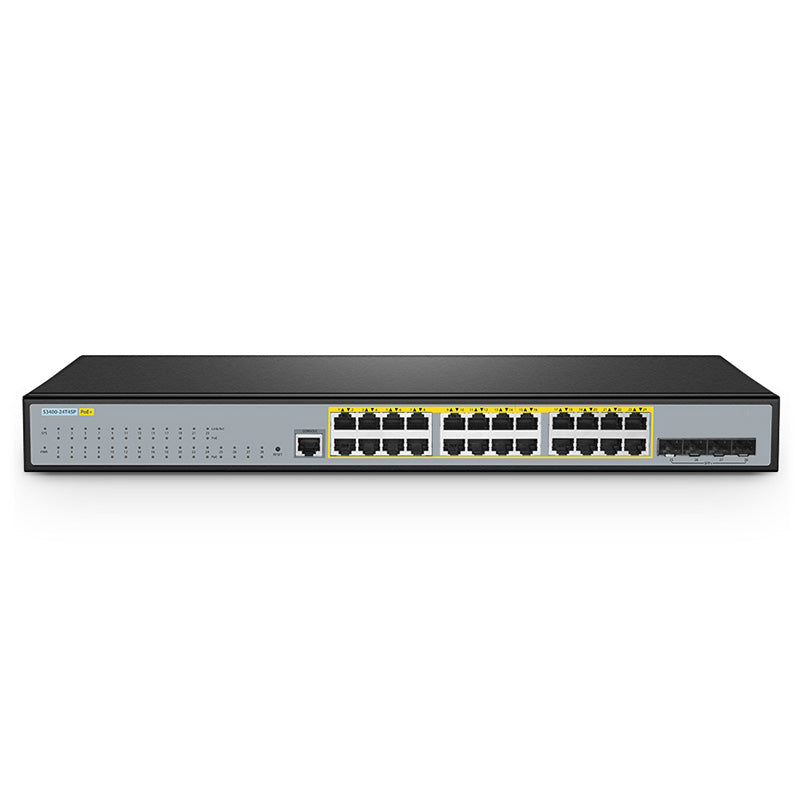

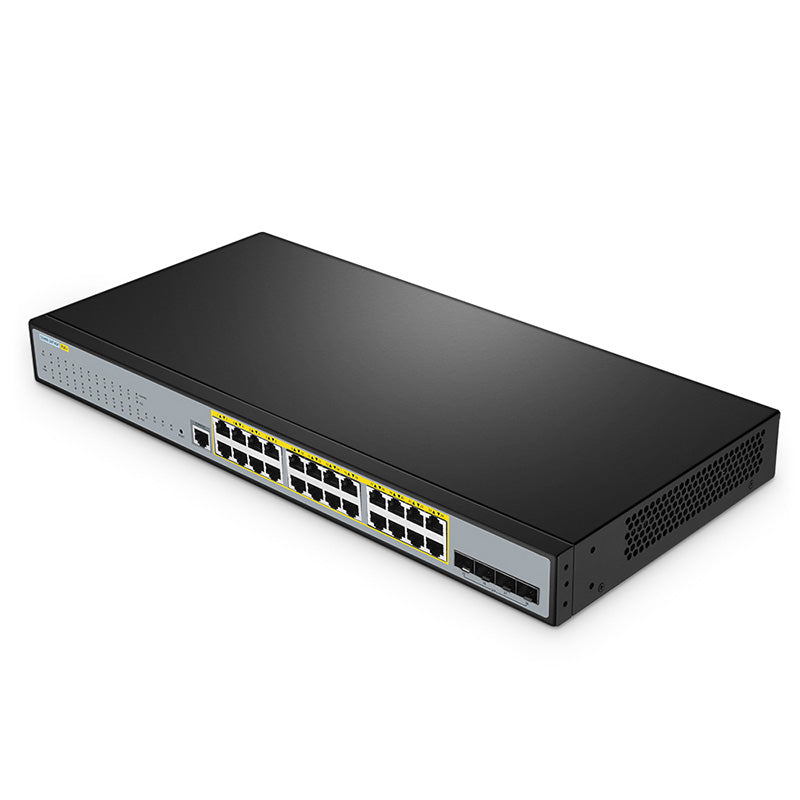

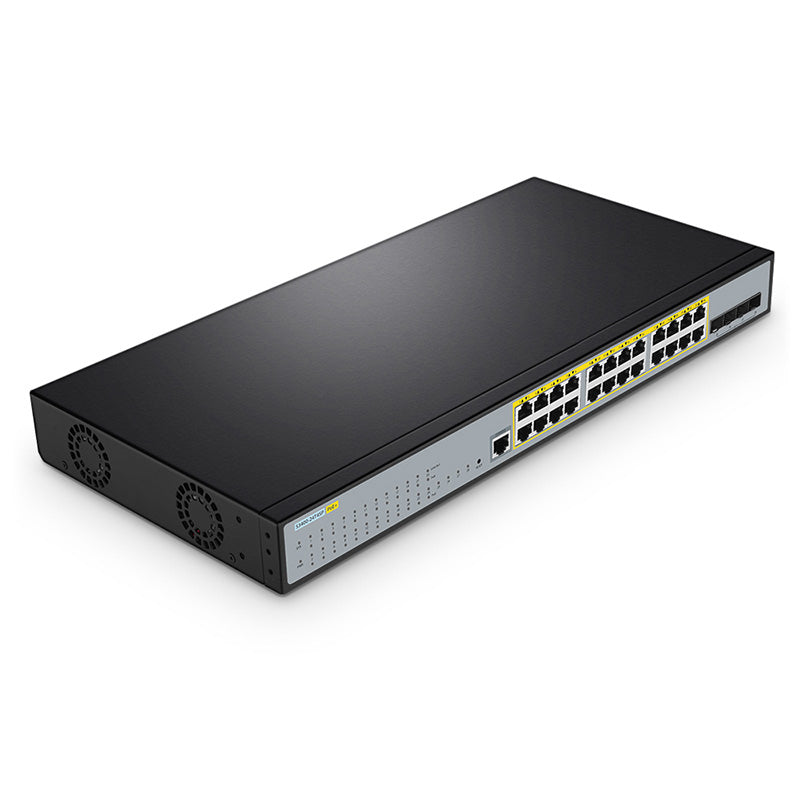

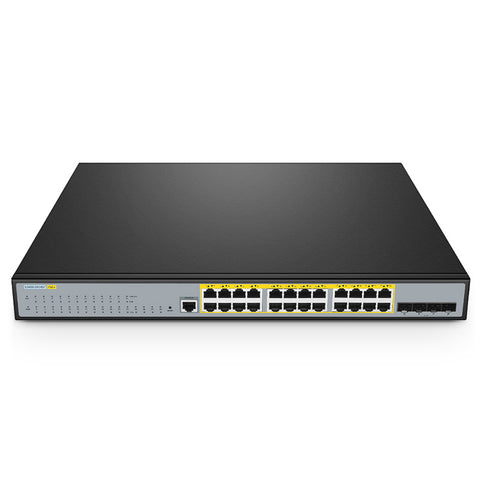

FS-S3400-24T4SP, 24-Port Gigabit Ethernet L2+ PoE+ Switch, 24 x PoE+ Ports @370W, with 4 x 10Gb SFP+ Uplinks, Support Stacking

24-Port PoE Switch is equipped with 24x 10/100/1000BASE-T ports, 4 x 10Gb SFP+, and 24x RJ45 ports that support both IEEE 802.3af PoE and IEEE 802.3at PoE+ (up to 30W per port) for powering attached IP phones, wireless access points, or other standards-compliant PoE and PoE+ end network devices.

It is targeted at the IP MAN (metropolitan area network), government and enterprise networks, Internet café, and diskless working environment.

It supports functions such as powerful ACL, flexible QinQ, 1:1 or N:1 VLAN switching, Ethernet OAM, carrier-level QoS, and industry-level 10GE Ether-ring, ensuring this switch series meets application requirements in all kinds of complicated sites.

It also supports layer-3 routing protocol.

Product Highlights

• Up to 24 PoE+ Ports, Total Budget 370W

• 2 Built-in Fans and Single Power Supply

• Stack Up to 8 Units on 10G Uplinks Ports with Up to 320G Bandwidth

• Support DHCP, Voice VLAN, LACP, OSPFv3, etc.

• Support SSH, ACL, AAA, 802.1X, RADIUS, TACACS+, etc.for Security

• Advanced Network Monitoring Using SFlow

• Support CLI/WEB/SNMP/SSH for Flexible Operation

Specifications

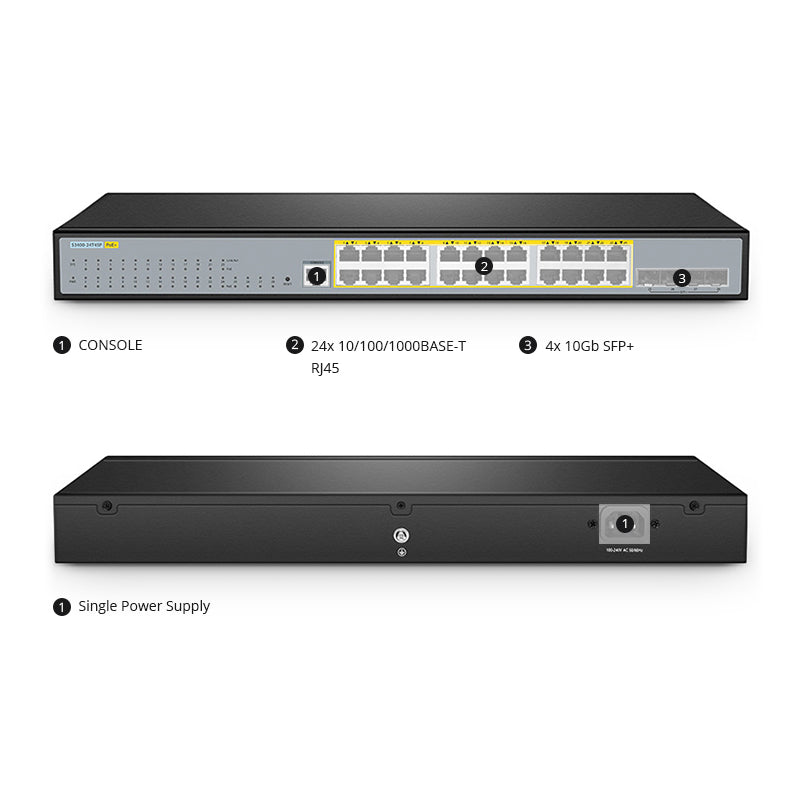

• Ports: 24x 10/100/1000BASE-T RJ45, 4x 10Gb SFP+

• RAM: 256MB

• Switching Capacity: 128 Gbps

• Jumbo Frame: 9,216

• Forwarding Rate: 96 Mpps

• MAC Address: 16K

• Flash Memory: 16MB

• Input Voltage: AC 100V-240V,50-60Hz

• PoE Budget: 370W

• MTBF: ＞50,000

• Packet Buffer: 1.5MB

• Max. Power Consumption: 28W (370W with PoE)

• Dimensions (HxWxD): 1.73''x17.32''x11.02'' (44x440x280mm)

• PoE Standard: IEEE 802.3af/at

• Power Supply: 1 Built-in

• Operating Temperature: 0 to 50ºC (32 to 122°F)

• Fan Number: 1+1 Redundant Fans

• Storage Temperature: -40ºC to 70ºC(-40°F to 158°F)

• Airflow: Left-to-Right

• Mounting Methods: Rackmount
• RJ45 Ports: 24x 100/1000BASE-T
• Fiber Ports: 4x 10G SFP+
• PoE Ports: 24x PoE+
• PoE Budget: 370W
• Management Layer: L2+
• Power Supply: 1 Built-in
• Fan: 2 Built-in Fans
• QoS, IGMP Snooping, Link Aggregation, IPv6, L3 Static Routing, RIP, OSPF: YES

Software Spotlights

High Availability and Multi-Service Support

• Support 4K Active VLAN, voice VLAN and Private VLAN
• Support static/LACP link aggregation
• Support BPDU Guard/filtering/transparent
• Support Root Guard and Loopback detection
• Support FTP, TFTP and SFTP
• Support IGMP Snooping

Error-Free Network Configuration

• Support Web management
• Support SNMP v1, v2c, v3
• Support dual images (SPAN, RSPAN), multiple configuration files
• Support firmware auto upgrade RMONSupport MIB-II, NTP, Ping, Traceroute, and ZTP (Zero Touch Provisioning)
• Support LLDP (802.1ab)
• Support STP/RSTP/MSTP

Secure and Simplified Access for Users and IoT

• Support IEEE 802.1x, Radius and TACACS+ perfect security authentication mechanisms
• Support storm/multicast/unicast limit
• Support perfect ring detection mechanism
• Support IP Source Guard, DoS Protection, Anti-attack from DDoS
• Support L2/L3/L4 ACL flow identification and filtration
• Support IPv4/IPv6/MAC/ARP ACL

Connectivity Solutions

Improve Management with an Integrated Campus Network
Virtual deployment of dual switches, extensible architecture and intelligent O&M offers a simple, flexible, and high-performance network for serving all scenarios on campus.

1G Switch with High-speed 10G Uplink
24× PoE 10/100/1000 Mbps RJ45 ports provide up to 30W per port for downlink to provide flexible network deployment and 4x 10Gb SFP+ ports for uplinks or stacking.

Smart PoE+ Support
Compliant with IEEE 802.3af/at PoE standards, it can automatically detect and provide the required power for your PoE devices, which can deliver up to 30W power per port.

Support 8 Units Stacking to Achieve High Bandwidth and Simplify Management
Virtual stacking up to 8 units for a total of 192 1G ports to increase bandwidth and simplify management while staying cost-efficient.

QoS (Quality of Service) for Better Traffic Control
Provides different priorities to different applications, users, or data flows to reduce packet loss, latency, and jitter on a network.

Private VLAN for Saving Resources and Improving Security
It enables port isolation or traffic segmentation under the same IP segment, saves IP addresses, and isolates broadcast storms and virus attacks to improve switch port security within layer 2 in a shared network environment.

Multiple Management Methods for Easy Network Maintenance
Supporting SNMP, CLI, WEB, SSH, and other methods to deliver a streamlined experience for the device's convenient maintenance and network management without additional cost.
