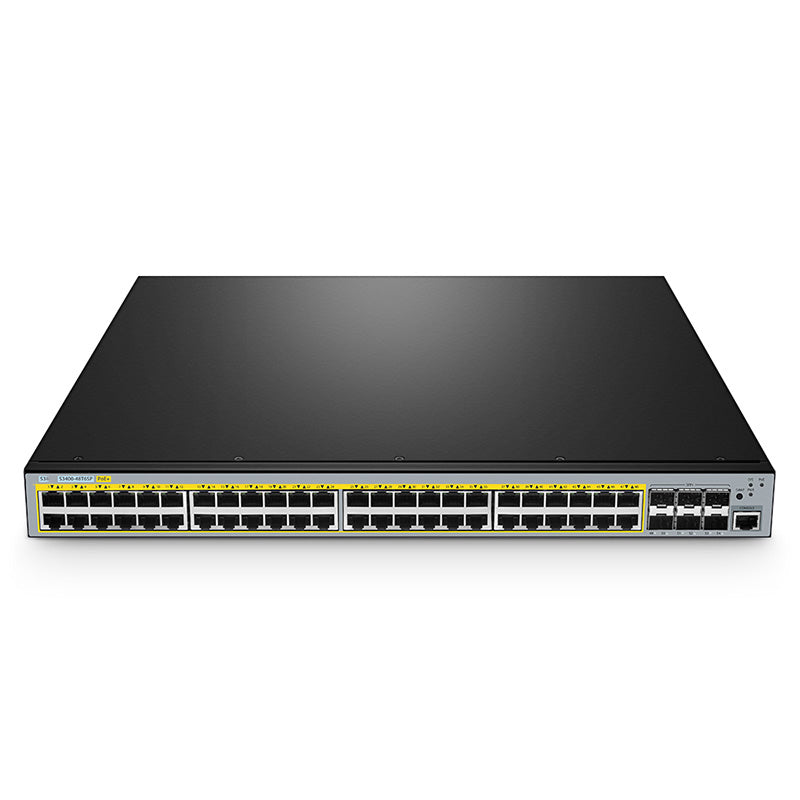

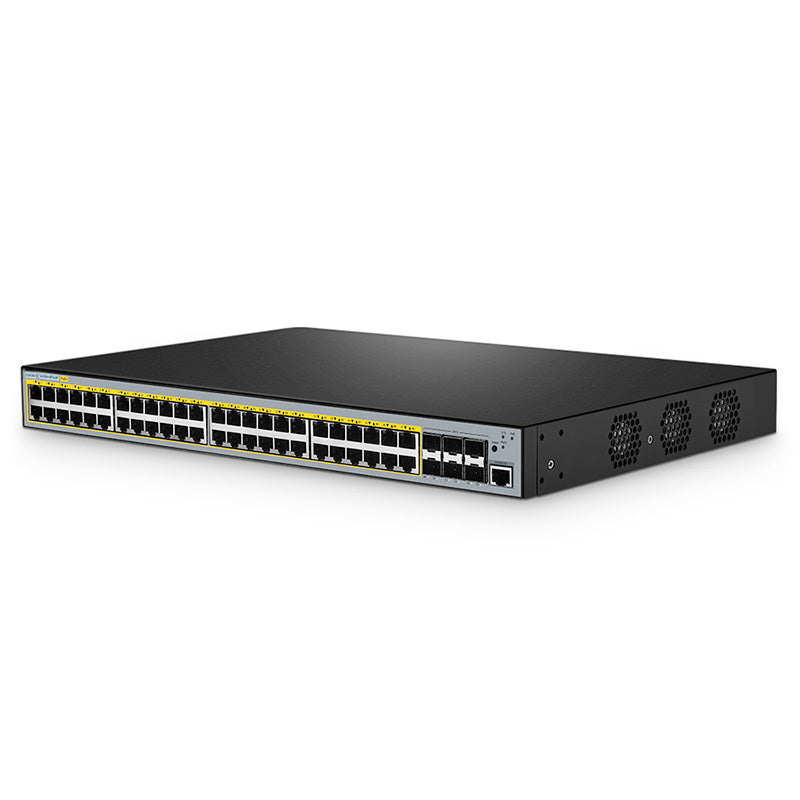

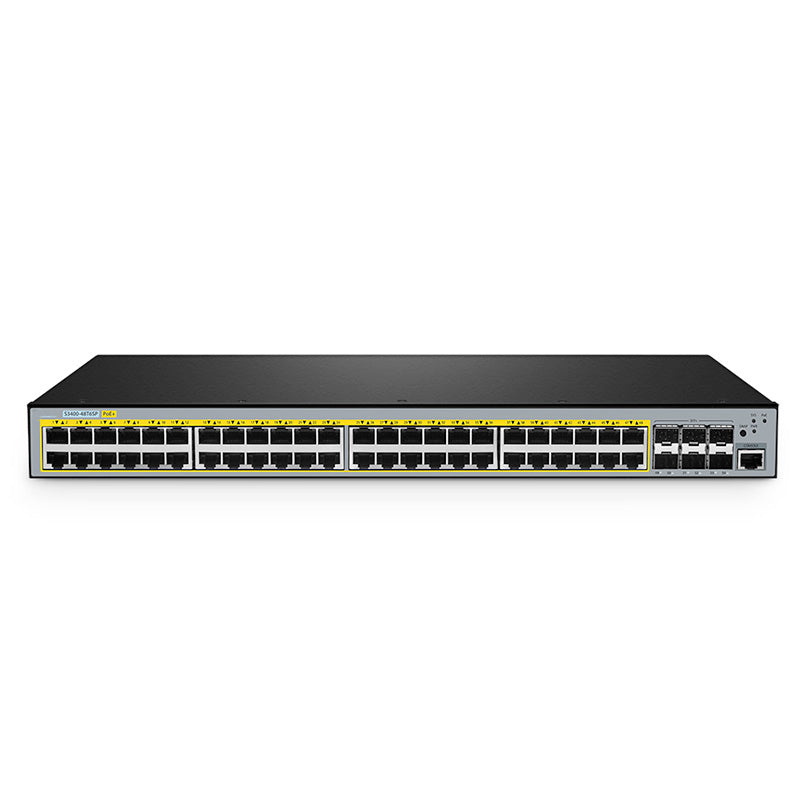

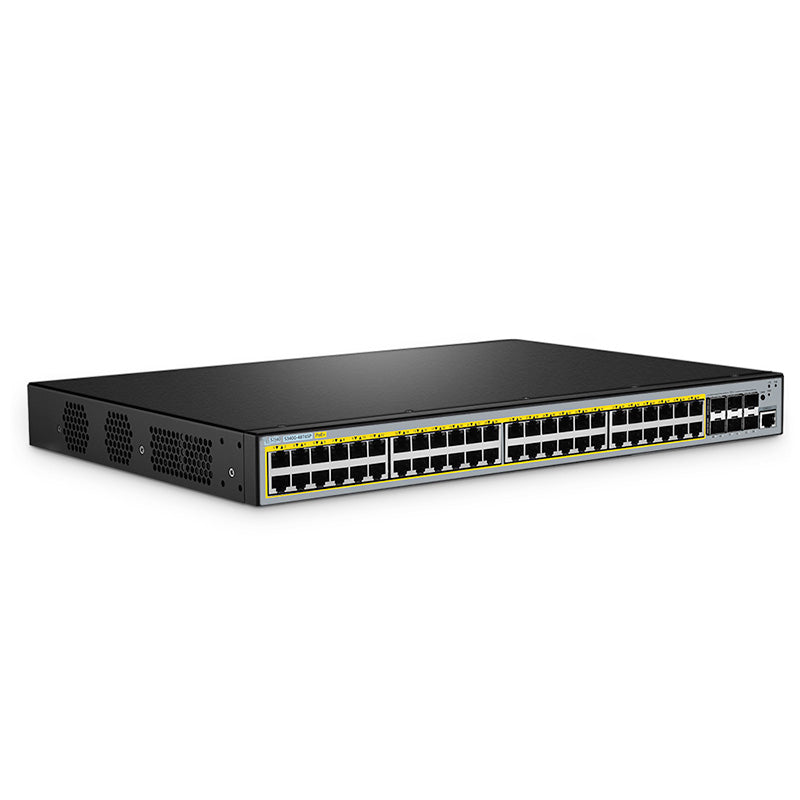

FS-S3400-48T6SP, 48-Port Gigabit Ethernet L2+ PoE+ Switch, 48 x PoE+ Ports @370W, with 6 x 10Gb SFP+ Uplinks, AC+DC Power Supplies

48-Port Managed PoE+ Switch is equipped with 48x 10/100/1000BASE-T ports, 6x 1Gb SFP/10Gb SFP+ uplinks, 48x RJ45 ports support both IEEE 802.3af PoE and IEEE 802.3at PoE+ (up to 30W per port) for powering attached IP phones, wireless access points, or other standards-compliant PoE and PoE+ end network devices. 6x SFP+ uplink ports are provided to support connections to higher layer devices.

This access switch delivers a compact, cost-effective solution for the carrier's IP MAN and enterprise networks.

Based on the high-performance hardware and FSOS platform, it supports functions such as ACL, QinQ, and QoS. Its simple management mode and flexible installation can meet the requirement of any complicated scenario.

Product Highlights

• Up to 48 PoE+ Ports, Total Budget 370W

• 1AC+1DC Power Supplies for Redundancy

• Stack Up to 8 Units on 10G Uplinks Ports with Up to 480G Bandwidth

• Support ERPS, QoS, L2 Multicast Functions, RIP

• Support SSH, ACL, AAA, 802.1X, RADIUS, TACACS+, etc. for Security

• Advanced Network Monitoring Using SFlow

• Support CLI/WEB/SNMP/SSH for Flexible Operation

Specifications

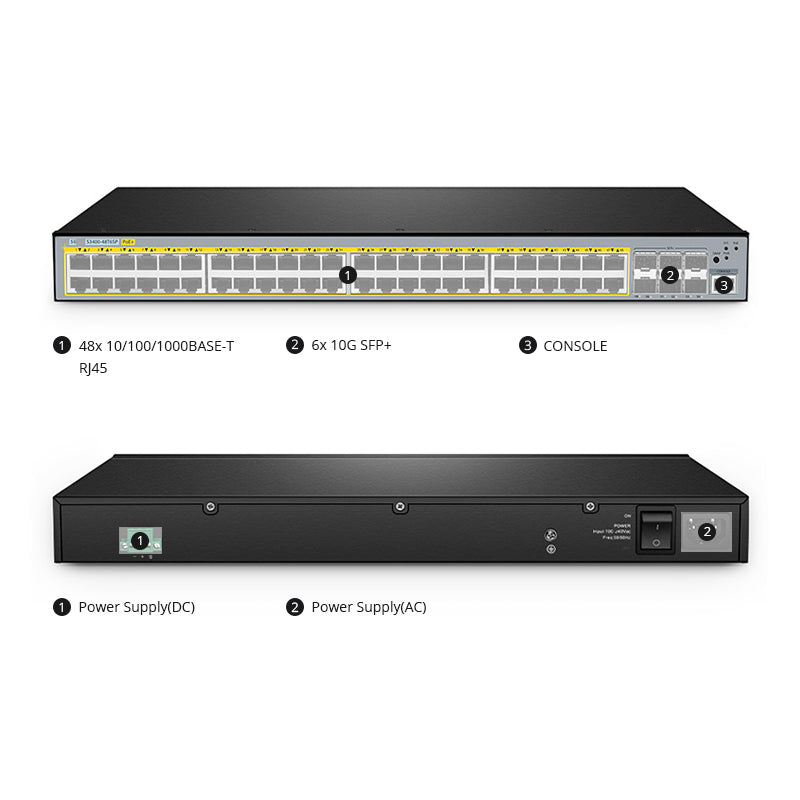

• Ports: 48x 10/100/1000BASE-T RJ45 | 6x 10G SFP+

• Switching Capacity: 216Gbps

• MAC Address: 32764

• Forwarding Rate: 162Mpps

• RAM: 512MB

• Input Voltage: 100-240VAC, 50-60Hz, 6.5A

• Flash Memory: 16MB (NOR)

• Jumbo Frame: 9k

• Packet Buffer: 2MB

• Max. Power Consumption: AC: 61.5W (400W with PoE); DC: 50.5W (400W with
• PoE) PoE Budget: AC: 370W; DC: 370W

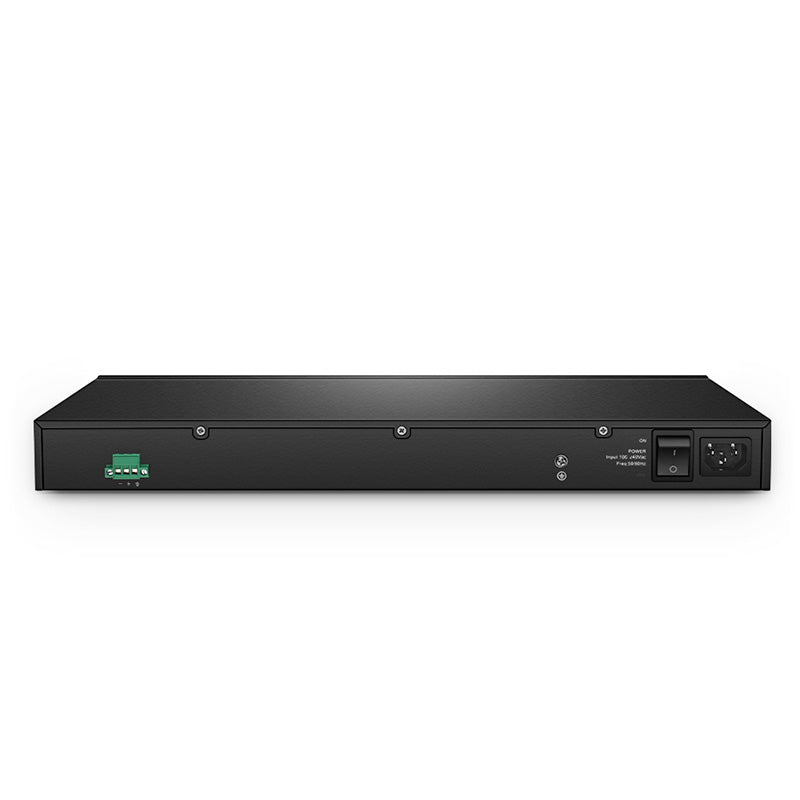

• Power Supply :2 (1AC+1DC)

• Fan Number: 3 Built-in

• PoE Standard: IEEE 802.3af/at

• MTBF:  >50,000 Hours

• Storage Temperature: -40 to 70ºC (-40 to 158°F)

• Dimensions (HxWxD): 1.73''x17.32''x11.81'' (44x440x300mm）

• Operating Temperature: 0 to 45ºC (32 to 113°F )

• Mounting Methods: Rackmount

• Product Material: Metal
• RJ45 Ports: 48x 100/1000BASE-T
• Fiber Ports: 6x 10G SFP+
• PoE Ports: 48x PoE+
• PoE Budget: 370W
• Management Layer: L2+

• Power Supply: 2 Built-in
• FAN: 3 Built-in Fans
• QoS, IGMP Snooping, Link Aggregation, IPv6, L3 Static Routing, RIP, OSPF: YES

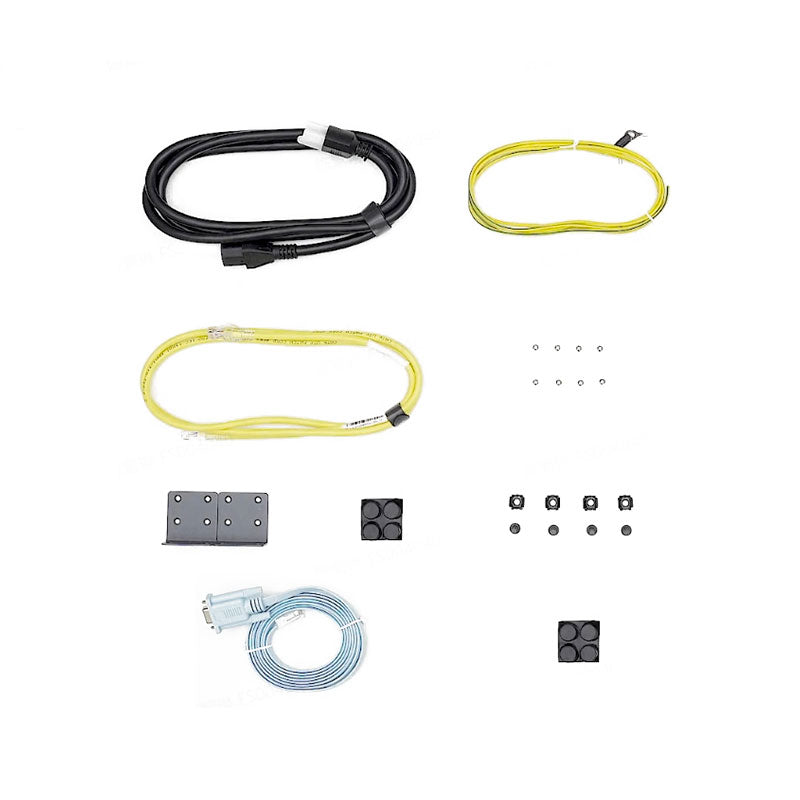

Please Note: Matching the American standard power cord as default. If you need other standard power cords, please note in the order.

Software Spotlights

High Availability and Multi-Service Support

• Support 4K Active VLAN, voice VLAN and Private VLAN
• Support static/LACP link aggregation
• Support BPDU Guard/filtering/transparent
• Support Root Guard and Loopback detection
• Support GVRP
• Support static route, RIP, OSPF

Error-Free Network Configuration

• Support console port, Telnet, SSH, and SNMP
• Support the WEB management mode
• Support TFTP-patterned file upload/download management
• Support STP/RSTP/MSTP
• Support ERPS/EAPS

Secure and Simplified Access for Users and IoT

• Support IEEE 802.1x and AAA
• Support perfect ring detection mechanism
• Support port isolation within the same VLAN
• Support DHCP-Snooping
• Support L2-L7 ACL
• Support QoS

Connectivity Solutions

Improve Management with an Integrated Campus Network
Virtual deployment of dual switches, extensible architecture and intelligent O&M offers a simple, flexible, and high-performance network for serving all scenarios on campus.

1G Switch with High-speed 10G Uplink
48× PoE 10/100/1000 Mbps RJ45 ports provide up to 30W per port for downlink to provide flexible network deployment and 6 x 10Gb SFP+ ports for uplinks or stacking.

Smart PoE+ Support
Compliant with IEEE 802.3af/at PoE standards, it can automatically detect and provide the required power for your PoE devices, which can deliver up to 15.4W and 30W power per port.

Support 8 Units Stacking to Achieve High Bandwidth and Simplify Management
Virtual stacking up to 8 units for a total of 384 1G ports to increase bandwidth and simplify management while staying cost-efficient.

QoS (Quality of Service) for Better Traffic Control
Provides different priorities to different applications, users, or data flows to reduce packet loss, latency, and jitter on a network.

Voice VLAN Gives Priority to Guaranteeing VoIP Quality
Voice VLAN improves voice traffic transmission priority and guarantee voice quality by assigning voice traffic to a dedicated VLAN without competing with other traffic.

SNMP Simplifies Management and Monitors Failures
SNMP provides unified interfaces and protocols to manage devices in different physical spaces to improve management efficiency.

Multiple Management Methods for Easy Network Maintenance
Supporting SNMP, CLI, WEB, SSH, and other methods to deliver a streamlined experience for the device's convenient maintenance and network management without additional cost.
