FS-S3400C-24MG4S, 24-Port Ethernet L2+ Compact Half-Width Switch, 24 x 100M/1000M/2.5GBase-T/Multi-Gigabit, with 4 x 10Gb SFP+ Uplinks

The FS-S3400C-24MG4S is a Layer 2+ managed switch with 24x 100M/1000M/2.5GBase-T ports and 2x 10Gb SFP+ uplink ports in a compact half-width form factor. It supports single or dual-machine assembly and single or double-row stacking without cabinets, and can be flexibly deployed according to actual network needs.

This powerful switch provides 200 Gbps switching capacity and 148.8 Mpps forwarding rate. It adopts an intelligent fan speed control scheme and silent design to create a green energy-saving network.

The switch combines advanced hardware and software and supports features such as OSPF, Voice VLAN, LACP, and QoS, providing cost-effective services with unrivalled ease of use, making it an ideal choice for next-generation SMB, enterprise, Wi-Fi6AX access, and high-speed NAS networks.

Specifications

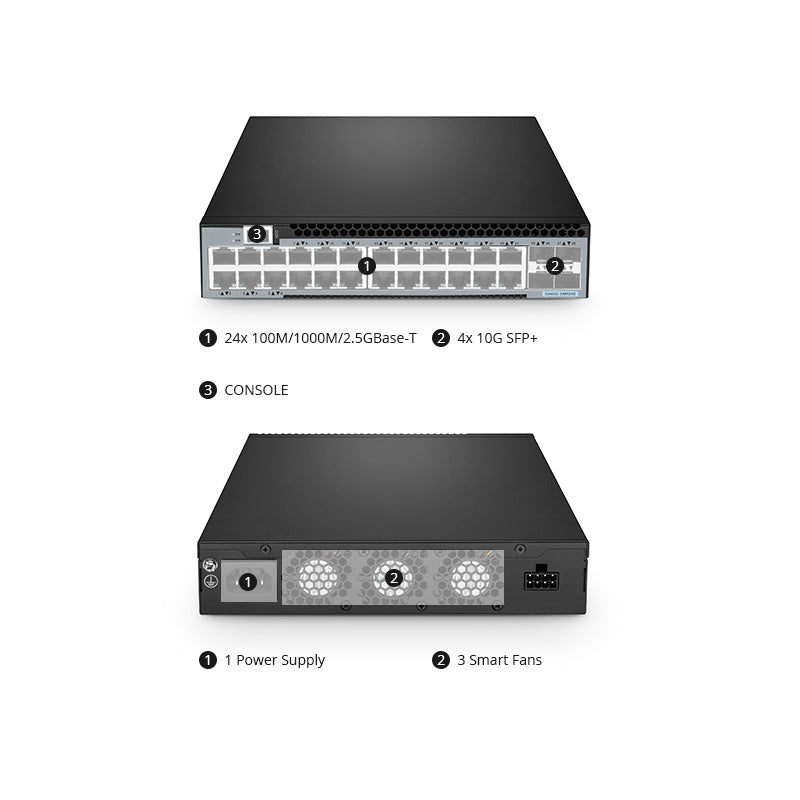

• Ports: 24x 100M/1000M/2.5GBase-T RJ45 | 4x 10Gb SFP+

• SDRAM: 512MB

• Switch Chip: Realtek RLT9313

• Flash Memory: 32MB

• Power Supplies: 1 Built-in, AC

• Switching Capacity: 200 Gbps

• Fans: 3 Built-in, Front-to-Back

• Forwarding Rate: 148.8 Mpps

• Weight: 5.95 lbs (2.7kg )

• Packet Buffer: 16MB

• Form Factor: Half RU

• Jumbo Frame: 10,000

• Dimensions (HxWxD): 1.73''x8.46''x14.02'' (44x215x356mm)

• MTBF: ≥70,000 Hours

• Input Voltage: 100-240V, 50-60Hz

• MAC Address: 32K

• Input Current: 2.5A

• IPv4/IPv6 Routes: 5K/5K

• Max. Power Consumption: 150W

• Number of VLANs: 4,000

• Operating Temperature: -10 to 50°C (14 to 122°F)
• Ports: 24x 100M/1000M/2.5G; 4x 10G SFP+

Product Highlights

• 24x 100M/1000M/2.5GBase-T Multi-Gigabit, 4x 10Gb SFP+ Uplinks

• Combine 2 Half-width Models in a Single Rack Apace for Redundant Top-of-Rack

• Intelligent Fans Configurable in Quiet Mode to Minimize Noise

• Support LACP, OSPF, Voice VLAN, ACL, QoS, STP, etc.

• Security Features: 802.1X, ACL, RADIUS, TACACS+ & DHCP Snooping

• Support CLI/WEB/SNMP/SSH/sFlow/RMON for Flexible Operation
• Switching Capacity: 200 Gbps
• Forwarding Rate: 148.8 Mpps
• Power Supplies: 1 Built-in, AC
• Fans: 3 Built-in, Front-to-Back
• Max. Power Consumption: 150W
• LACP: YES
• 802.1X: YES

Connectivity Solutions

Multi-Gigabit Ports with Non-blocking Line-Rate for Versatile Networking
24 Multi-Gigabit (1/2.5G) ports enable high-speed network upgrades over existing cabling, and 4 10G ports provide robust connectivity for future expansion.

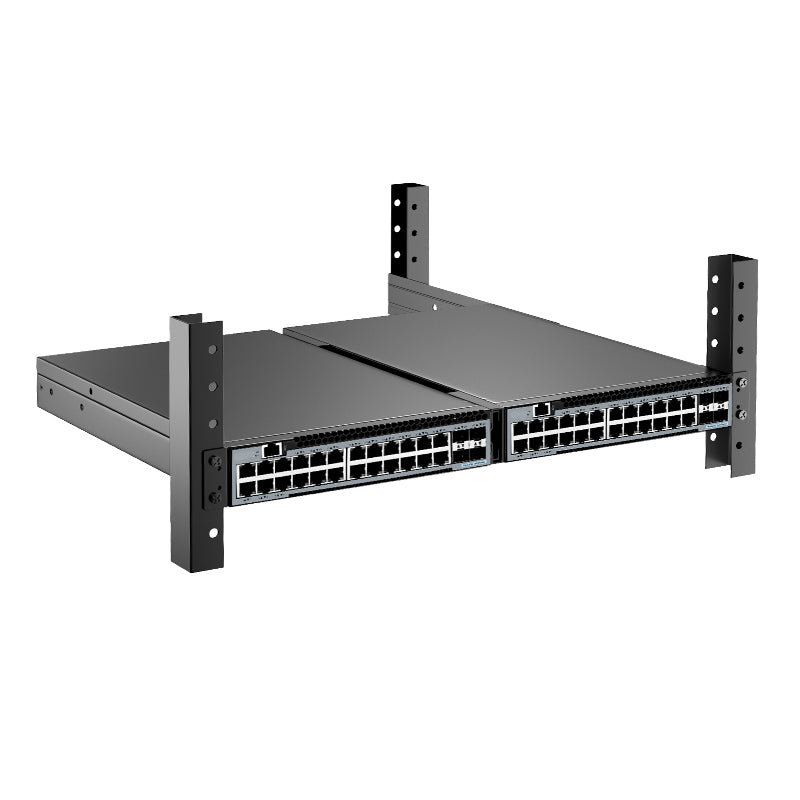

Half-Width Design Enables Flexible Deployment Options
It supports 1U space single-machine,dual-machine assembly and single or dual-row stacking without cabinets, which can easily meet your diverse deployment needs.

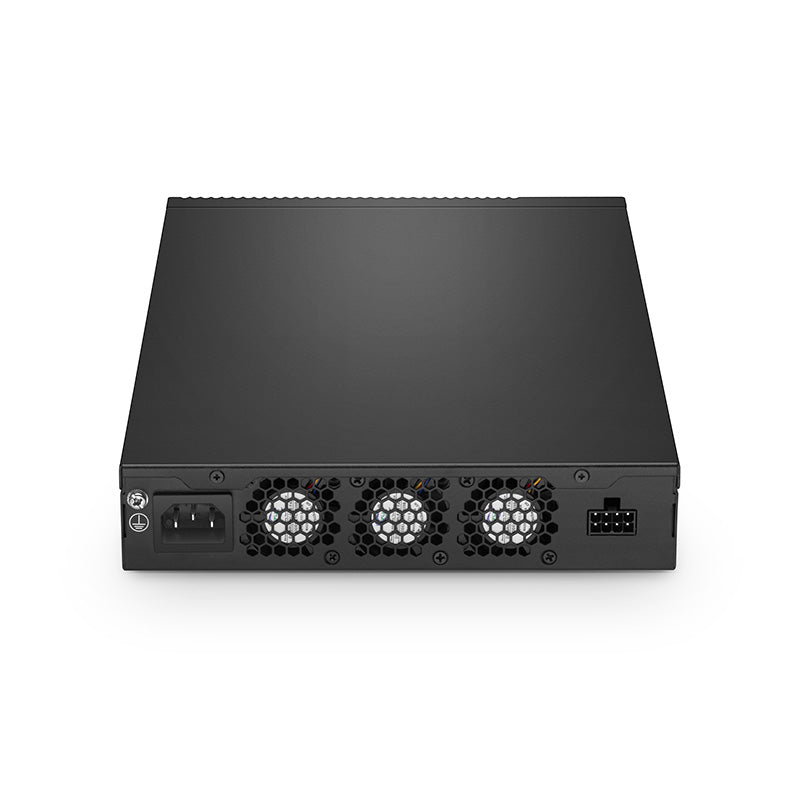

Built-in Smart Fans and Silent Design for Energy Saving
The switch incorporates a silent design and intelligent fan speed regulation, effectively minimizing fan noise and enhancing overall system stability.

Upgraded to 2.5G for a Super-fast and Future-proof Network
24 ports of 2.5GBASE-T RJ-45 provide higher gigabit speeds and can meet devices access of different rates, especially the scenario of WIFI6 and next-generation multi-rate LAN wired network.
