FS-S5870-48T6BC-U, 48-Port Ethernet L3 PoE++ Switch, 48 x PoE++ Ports @1560W, with 4 x 25Gb SFP28 and 2 x 100Gb QSFP28 Uplinks, PicOS®, Support EVPN-VXLAN&MLAG, Broadcom Chip
FS-S5870-48T6BC-U, 48-Port Ethernet L3 PoE++ Switch, 48 x PoE++ Ports @1560W, with 4 x 25Gb SFP28 and 2 x 100Gb QSFP28 Uplinks, PicOS®, Support EVPN-VXLAN&MLAG, Broadcom Chip

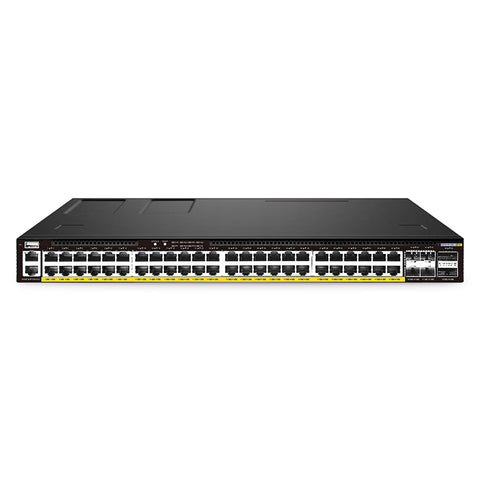

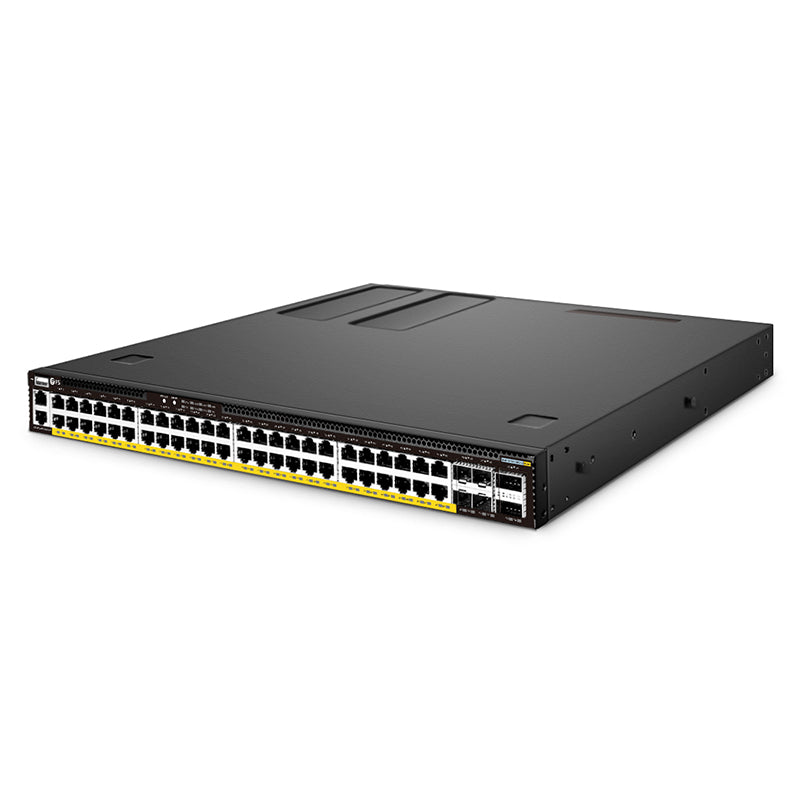

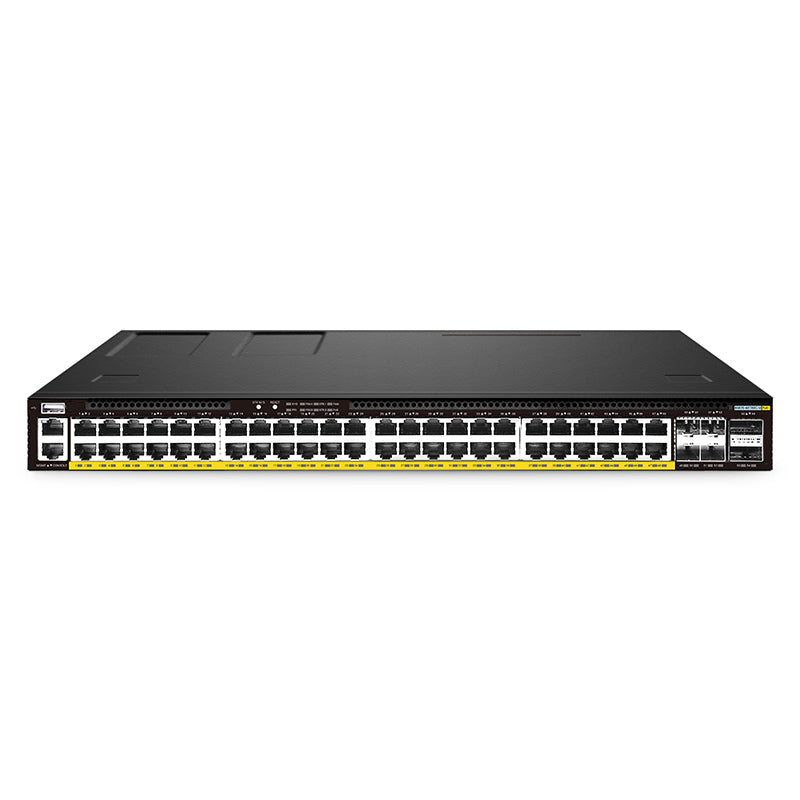

FS-S5870-48T6BC-U, a next-gen L3 switch with 48x 10/100/1000BASE-T ports, 4x 10G/25G SFP28 uplinks and 2x 100G QSFP28 ports. It supports IEEE 802.3at and 802.3bt. Running on PicOS® with a perpetual license, it supports OpenFlow, MLAG, BGP, and OSPF, EVPN-VXLAN without requiring additional licenses, and includes five years of hardware and software support.
The switch is managed by the AmpCon-Campus Management Platform, which offers automated Zero Touch Provisioning (ZTP), real-time telemetry monitoring, topology auto-discovery, and automated lifecycle management with 1, 3, or 5 years of service. AmpCon-Campus automates routine workflows, minimizing downtime and manual interventions to enable efficient orchestration and management of highly-available networks at scale.
Therefore, FS-S5870-48T6BC-U is well-suited for enterprise campus, hospitality, and retail applications, facilitating seamless interconnection of Wi-Fi 6 access points, VoIP phones, IP cameras, security systems, and sensors.
Specifications

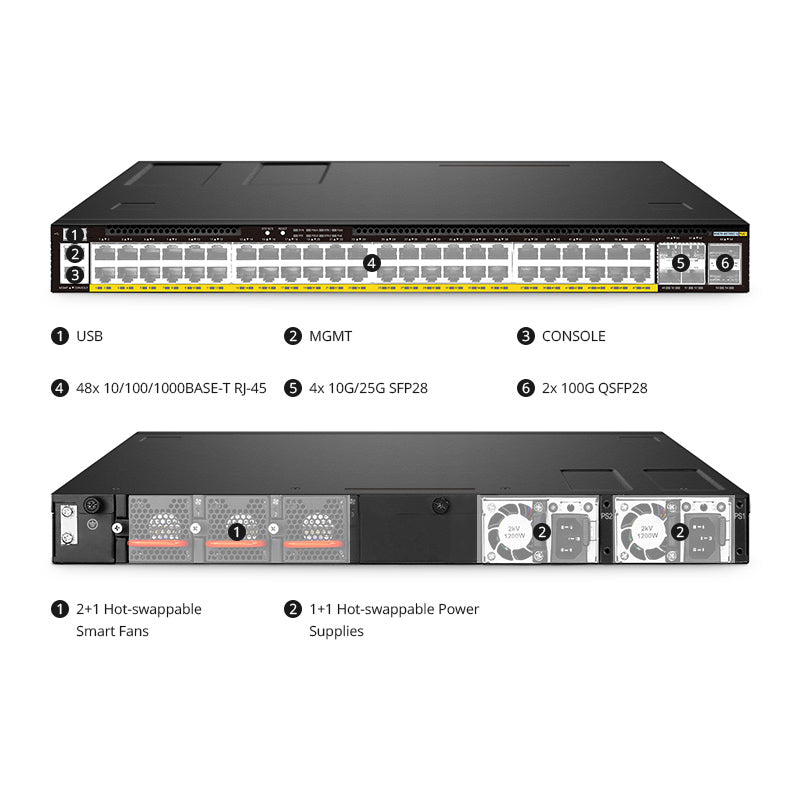

- Ports: 48x 10/100/1000BASE-T RJ45 | 4x 10G/25G SFP28 | 2x 100G FS-QSFP28
- Operating System: PicOS®
- Switch Chip: BCM56371
- CPU: Intel Atom/Denverton C3558 4-cores 2.2 GHz
- Power Supply: 2 (1+1 Redundancy) Hot-swappable
- Switching Capacity: 348 Gbps (unidirectional)/696 Gbps (bidirectional)
- Fan Number: 3 (2+1 Redundancy) Built-in
- Forwarding Rate: 744 Mpps
- Dimensions (HxWxD): 1.72"x17.24"x17.40"(43.7x438x442mm)
- Packet Buffer: 8MB
- Form Factor: 1 RU
- Jumbo Frame: 12,288
- Weight: 7.67 kg (16.91 lb)
- Power Budget: 1560W
- PoE Standard: IEEE 802.3af/at/bt
- MAC Address: 16K
- Input Voltage: 100-240VAC, 50-60Hz
- Number of VLANs: 4K
- Input Current: 12A Max
- Storage: m.2 SSD: 32 GB MLC
- Max. Power Consumption: 1800W
- Memory: DDR4: 8 GB x 2 SO-DIMM
- Temperature: Operating: 0 to 45°C (32 to 113°F)
- Ports: 48x 10/100/1000BASE-T RJ45; 4x 10G/25G SFP28; 2x 100G QSFP28
- PoE Ports: PoE++/PoE+/PoE
- Switching Capacity: 348 Gbps (unidirectional)/696 Gbps (bidirectional)
- Forwarding Rate: 744 Mpps
- Power Supplies: 2 (1+1 Redundancy) Hot-swappable, AC
- Fans: 3 (2+1 Redundancy) Built-in, Front-to-Back
- Max. Power consumption: 1800W
- Power Budget: 1560W
- MLAG: YES
- EVPN-VXLAN: YES
- 802.1X: YES
Product Highlights
- Broadcom Trident3-X3 Chip, Intel Atom® Processor C3558
- 348 Gbps (unidirectional)/696 Gbps (bidirectional) Switching Capacity
- PicOS® Supports EVPN-VXLAN, MLAG, BGP, etc.
- AmpCon-Campus Management Platform Automates Deployment & Lifecycle Management
- Security Features: 802.1X, ACL, Dynamic ARP Inspection, IP Source Guard, Radius/TACACS+
- IEEE 802.3af/at/bt, Total Budget 1560W
- 1+1 Hot-swappable Power Supplies, 2+1 Hot-swappable Smart Fans
Software Spotlights
Resiliency and High Availability
- Multi-Chassis Link Aggregation (MLAG)
- IEEE 802.3ad Link Aggregation (LACP)
- Support BFD for Fast Link Failure Detection
- Virtual Router Redundancy Protocol (VRRP)
- Ethernet Ring Protection Switching (ERPS)
- Graceful Restart (OSPFv2/OSPFv3)
- Unidirectional Link Detection (UDLD)
- EFM OAM, Uplink Failure Detection (UFD)
Security
- NAC: 802.1X, MAC Authentication, CWA Authentication
- RADIUS, TACACS+, Local Authentication
- Port Security
- Dynamic ARP Inspection (DAI)
- IP Source Guard (IPSG)
- IPv4/IPv6 DHCP Relay/Snooping
- IPv6 DHCP Guard
- IPv4/IPv6 Source Guard
- Control Plane Policing (CoPP)
Management
- AmpCon-Campus Management Platform for Day 0, Day 1, and Day 2+ Configuration Deployment
- Telemetry for Real-time Network Monitoring
- Programmability: NETCONF, RESTCONF, Ansible, OpenFlow
- SNMP v1/v2/v3, RMON
- Syslog Management
- Traffic Monitoring: sFlow
- Configuration Rollback and Recovery
- Network Time Protocol (NTP)
- Link Layer Discovery Protocol (LLDP)
PicOS® and AmpCon-Campus for Multi-Branch Network
PicOS® switches and AmpCon-Campus Management Platform create a multi-branch campus network with remote deployment and automated management, ensuring high performance, security, and ease of management while reducing operating expenses.

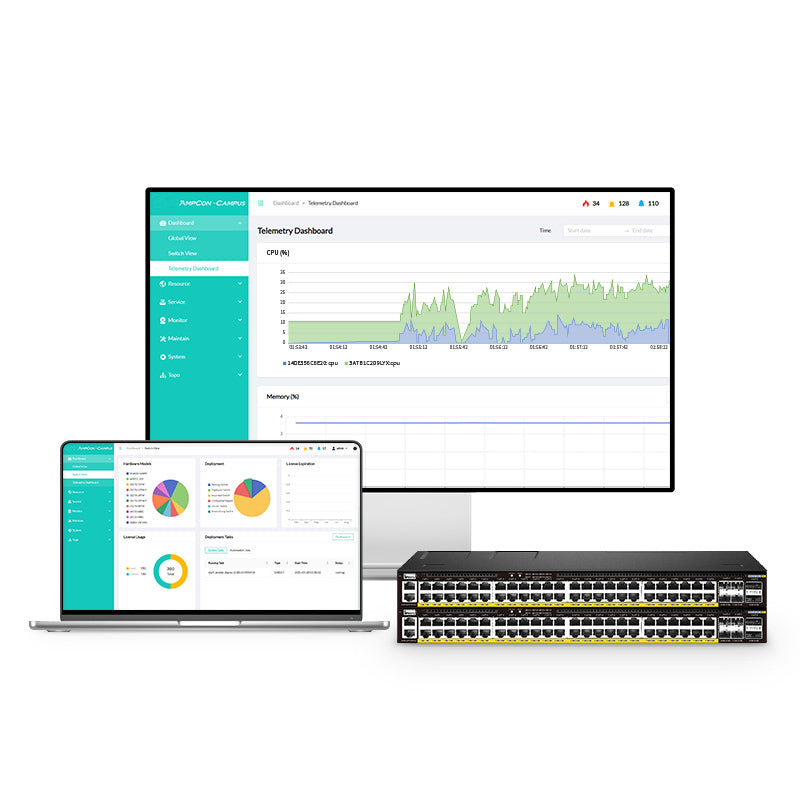

AmpCon-Campus Management Platform
Fully onboarded (Day 0), provisioned (Day 1), and managed (Day 2+) by Ampcon-Campus. Rich telemetry data provides insights into switch health, automated deployment and topology visualization deliver an intelligent and unified management experience.
PicOS® Ensures Stable and Secure Network Operations
PicOS® features a modular design for independent component operation, a dual-partition rollback for quick restoration, comprehensive L2/L3 features, and various security authentication methods to enhance network reliability and availability.
End-to-end Campus Fabric with EVPN-VXLAN
Easily scale, build resiliency, and simplify resource management with EVPN-VXLAN-based campus fabrics. With a single physical network (Underlay) creating virtual networks (Overlay), these fabrics enable tenant isolation and native traffic segmentation, ensuring critical services remain uninterrupted while enhancing security and flexibility.
Flexible Ports with 1G/10G/25G/100G for Versatile Networking
Provide 1G ports for access switches or servers, and can be connected to uplink devices through high-performance 25G/100G ports, fully meeting users' requirements for high-performance aggregation.
PoE++ Power Ports Simplify Network Infrastructure
Offer a PoE power budget of up to 1560W and support up to 90W per port based on the IEEE 802.3bt PoE standard, which can easily meet the power demand of different devices, provide high-power power for PDs, and simplify your network infrastructure and cabling.

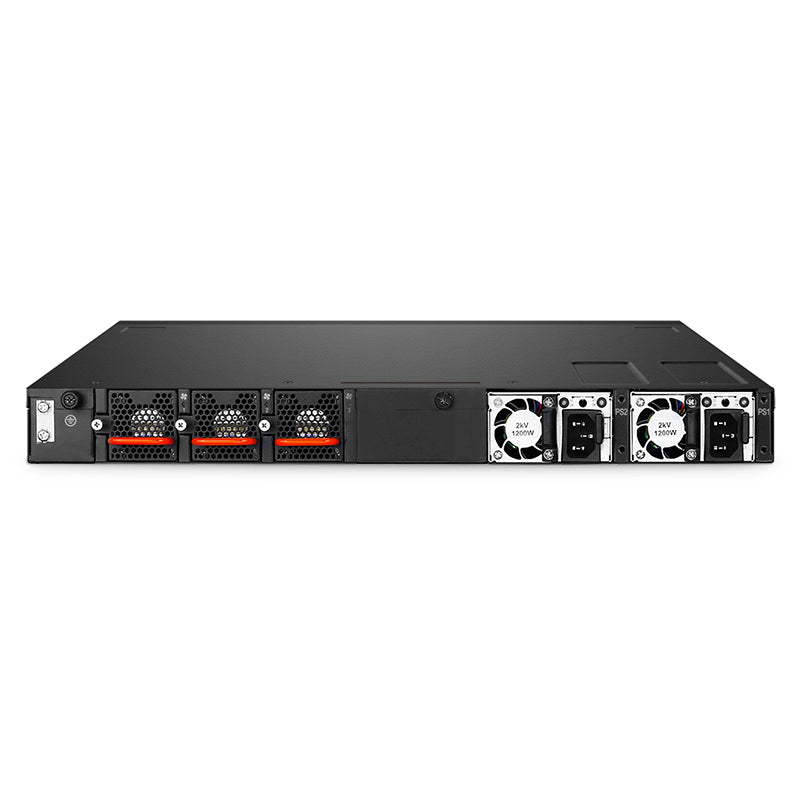

Dual Redundant Power Supplies and Smart Fans
Support hot-swappable redundant power supplies and smart fans to maintain uninterrupted operations, enhancing system stability and extending device lifespan.
