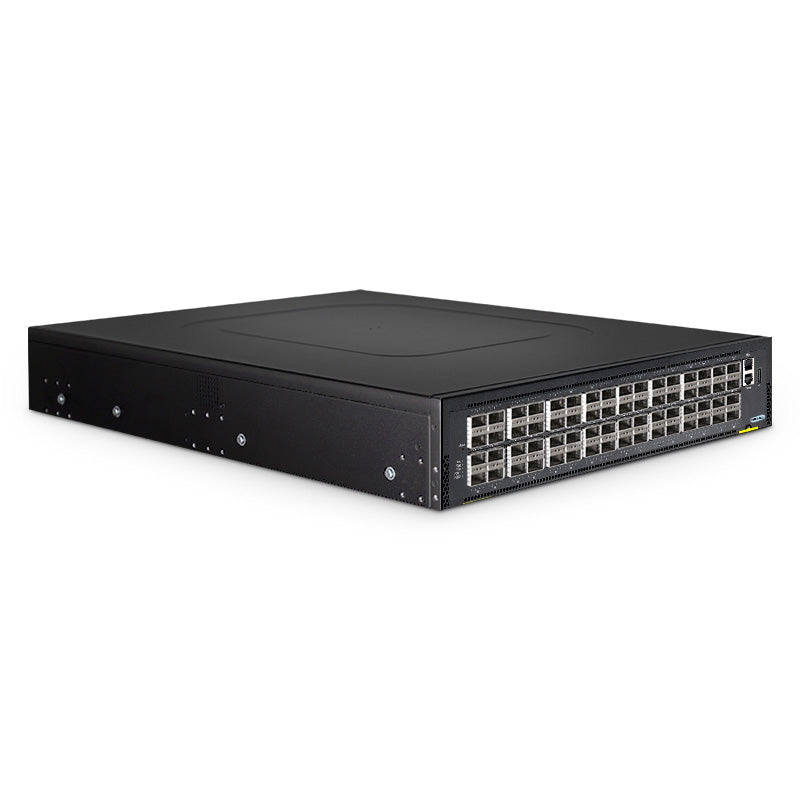

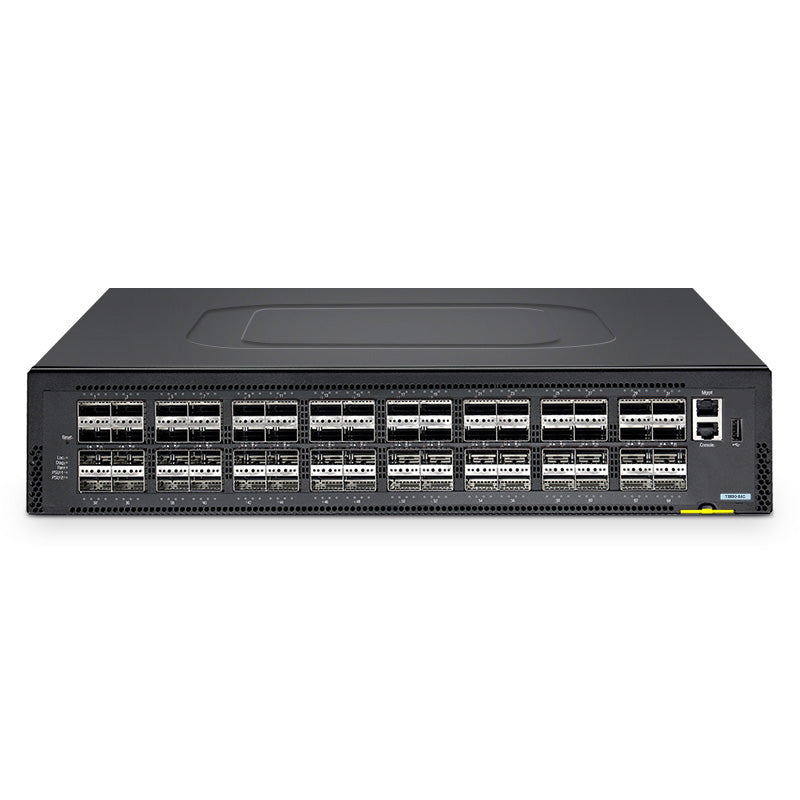

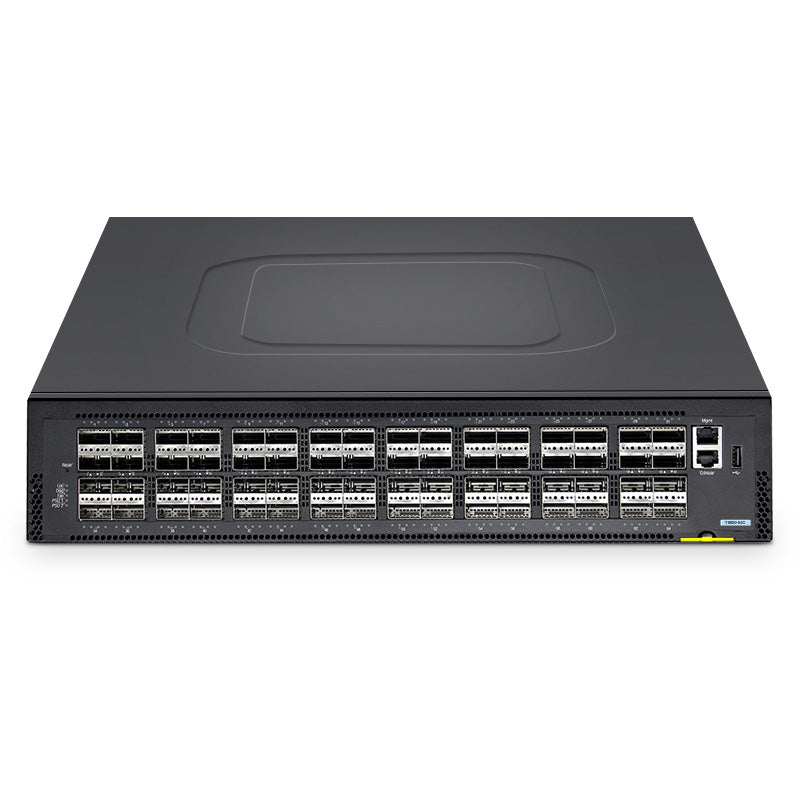

FS-T5630-64C, 64 x 100Gb QSFP28 Ports, Network Packet Broker (NPB), PicOS®, Network Visibility and Monitoring

The FS-T5630-64C Network Packet Broker (NPB) is equipped with 64 QSFP28 ports (100Gbps), and comes with a perpetual license and 5-year service included.

It is designed for high-bandwidth monitoring and analysis environments, supporting advanced features such as traffic aggregation, replication, filtering, and load balancing. Additionally, GRE and VXLAN tunneling are included without per-port license fees, thereby enhancing the performance of network analysis and security tools.

Specifications

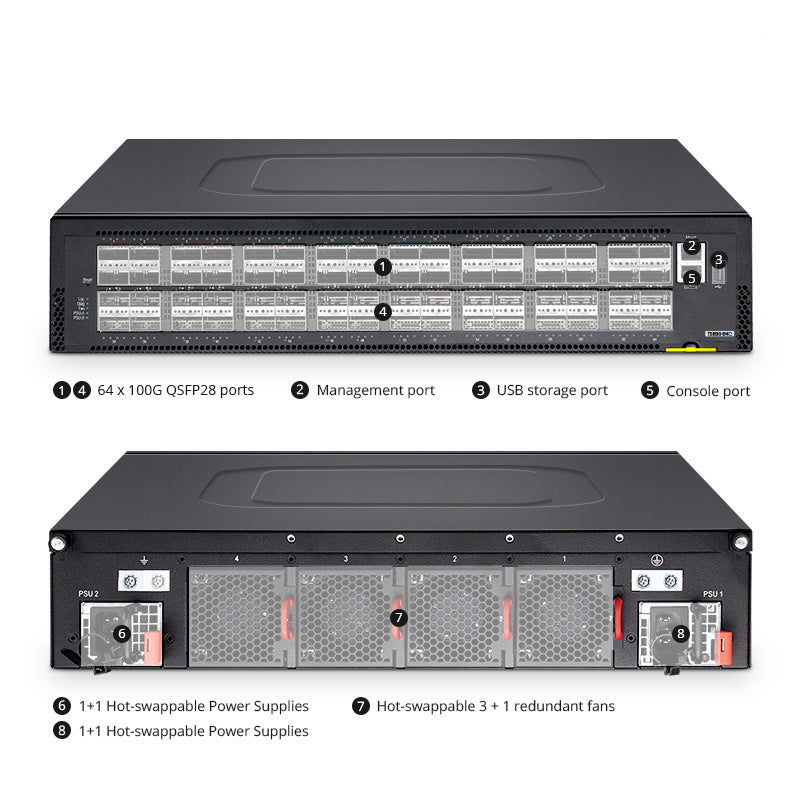

• Ports: 64x 100G QSFP28

• 100/1000 Mgmt Port: 1

• Latency: <1 µs

• Switching Capacity: 6.4 Tbps

• System Memory: 8GB

• CPU: Intel® Xeon® D-1518 4-Core 2.2 GHz

• Packet Buffer: 42MB

• Flash: 32GB

• Airflow: Front-Rear

• Input Voltage: 100-240 VAC, 50-60Hz

• MAC Address: 264k

• Max. Power Consumption: 850W

• IPv4 / IPv6 Routes: 128k/64k

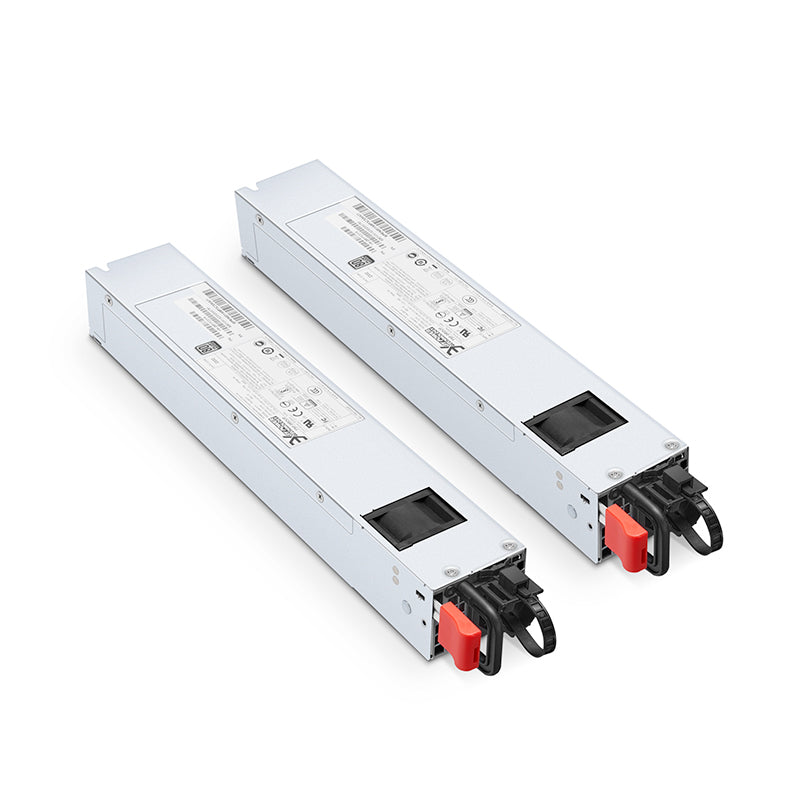

• Power Supplies: 2 (1+1 Redundancy) Hot-swappable, AC

• VLAN ID: 4k

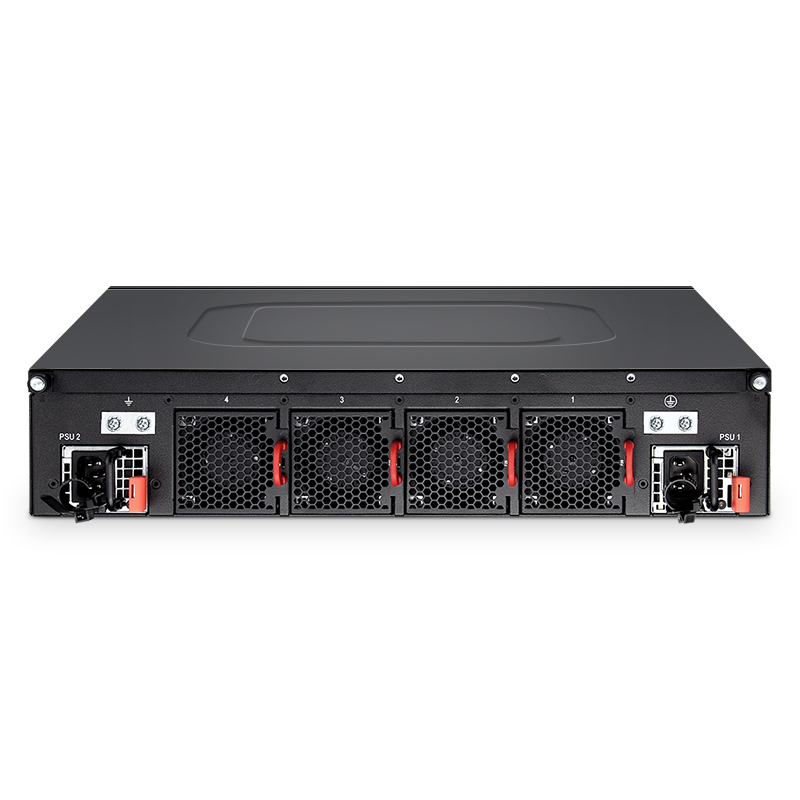

• Fans: 4 pluggable fans (3+1 redundant)

• Forwarding Rate: 4.2 bpps

• Dimensions(HxWxD): 3.45"x 17.26"x 22.83" (87.7x 438.4x 580mm)

Product Highlights

• Supports 10G/25G/40G/100G Networks in 2U 19" RU

• Support L2~L4 Traffic Aggregation, Filtering, Replication, Load Balancing

• Support OpenFlow/SDN

• Support Tunnel Encapsulation & Decapsulation (GRE, L2GRE, VXLAN)

• Real-time Network Visibility Delivers Insight to Ensure Security

• Support GUI, SSH, Syslog and SNMPv2c

• Support Flow Replication and Port Mirroring

Software Spotlights

Pervasive Visibility

• Aggregate network traffic to a single or multiple tools (1:1, 1:N, N:1, N:N)
• Support traffic replication and port distribution
• Ingress and egress filter support IPv4, IPv6
• Drop filter support IPv4, IPv6
• 1k filters
• Session/flow aware load balancing
• Configurable hash-based load balancing

Advanced Functionality

• Tunnel Encapsulate GRE, l2GRE and VxLAN
• Tunnel Decapsulate GRE, l2GRE and VxLAN
• Supports jumbo frames
• Support UDF L2, L3 and L4

Management

• Remote management GUI and SSH
• Remote monitoring Syslog and SNMPv2c

Connectivity Solutions

Network Visualization Solutions
The NPB optimizes network monitoring by collecting and filtering traffic, improving performance, management, and security, while reducing downtime and costs.

Network Packet Brokers (NPB) Facilitate Visibility for All IT Operations
Optimize the performance of network monitoring, analysis and security tools and offer visual solutions for SMEs and service providers.
