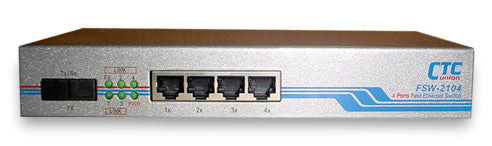

Fast Ethernet 4 10/100Base-TX copper + one 100Base-FX fiber port, single-mode, SC 15Km
The FSW-2104 is a perfect low cost way to expand Fast Ethernet networks and share a single fiber optic uplink connection. 100BaseFX optical uplink port can be ordered either multimode, for in-building networking, but also singlemode and even WDM single strand for connections of longer distance, up to 20Km.
The FSW2104-SSC015 model is having embedded AC switching power supply and a single-mode, 9/125um optical module for 100Base-FX fiber connections, up to 15Km distance. The optical connector is dual SC. Special versions for long-haul single-mode and single strand fiber are also available.
Typical applications for FSW-2104 are in-building Ethernet networks with normal data traffic load. The FSW-2104 is a good replacement for single port fiber optic media converters, eliminating need of installing an extra switch to connect more than one host to the fiber network.
FSW-2104 does offer auto MDI/MDIX detection on copper ports and supports Broadcast Storm Protection and both full duplex and half duplex operations. It has a 64K MAC address entry table and a 1Mb buffer size, which makes it very suitable in heavy data traffic LAN's.
