Overview
This fiber transition housing (FTH) is designed to provide a secure optical demarcation and interconnection point for fiber-to-the-premises (FTTP) applications. Engineered for both indoor and outdoor environments, the enclosure offers robust physical protection for the transition between provider and customer networks, while facilitating efficient system testing.

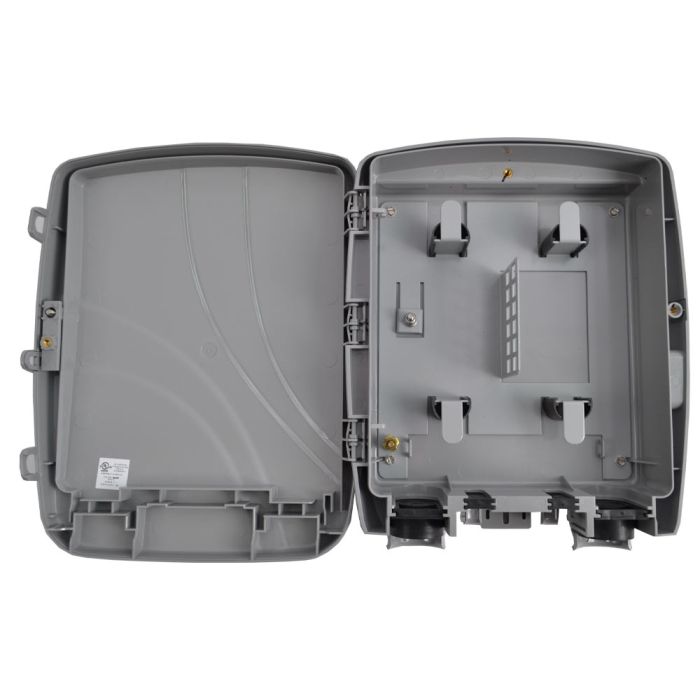

Constructed from an engineering-grade thermoplastic, the housing is built to withstand harsh outdoor conditions. It features an internal backplate equipped with slack routing and management guides for neat cable organization, along with integrated mounting clips for fusion or mechanical splices. The enclosure is designed for wall mounting or secure attachment to vertical conduits.
Key Features
-
High Capacity
Holds up to 12 SC or duplex LC adapters to support dense connectivity requirements. -
Integrated Splice Management
Includes dedicated mounting clips for mechanical or fusion splices for organized fiber management. -
Cable Slack Storage
Backplate design includes integrated guides to maintain proper bend radius and tidy cable management. -
Security Hardware
Equipped with a hex security screw latch to prevent unauthorized access. -
Locking Provision
Features an integrated locking hasp that accommodates a lock for enhanced physical security. -
Environmental Durability
Molded from engineering-grade thermoplastic designed to withstand harsh outdoor weather conditions. -
Mounting Versatility
Suitable for both indoor and outdoor wall mount installations or attachment to vertical conduit.
Applications
- Fiber-to-the-Premises (FTTP)
- Optical network demarcation
- Outdoor fiber interconnect points
- Customer premise network testing
Technical Specifications
| Specification | Value |
|---|---|
| Adapter Capacity | 12 SC or Duplex LC |
| Dimensions | 11.91" x 8.31" x 3.35" |
| Grounding | Includes Ground Post |
| Security | Hex Security Screw |
| Material | Engineering Grade Thermoplastic |
| Mounting | Wall or Conduit |
Frequently Asked Questions
Are fiber optic adapters included?
No, the enclosure is provided empty, without any adapters installed.
Is this suitable for outdoor use?
Yes, it is molded from engineering-grade thermoplastic specifically selected to withstand harsh outdoor environments.
Can I lock this enclosure?
Yes, it features a security screw for basic deterrence and an integrated locking hasp for adding a physical lock.
Does it include space for splicing?
Yes, the internal backplate includes mounting clips for either fusion or mechanical splices.
How is the fiber cable secured?
Fiber entering and exiting the unit is secured using internal lances with provided tie wraps.
