Overview

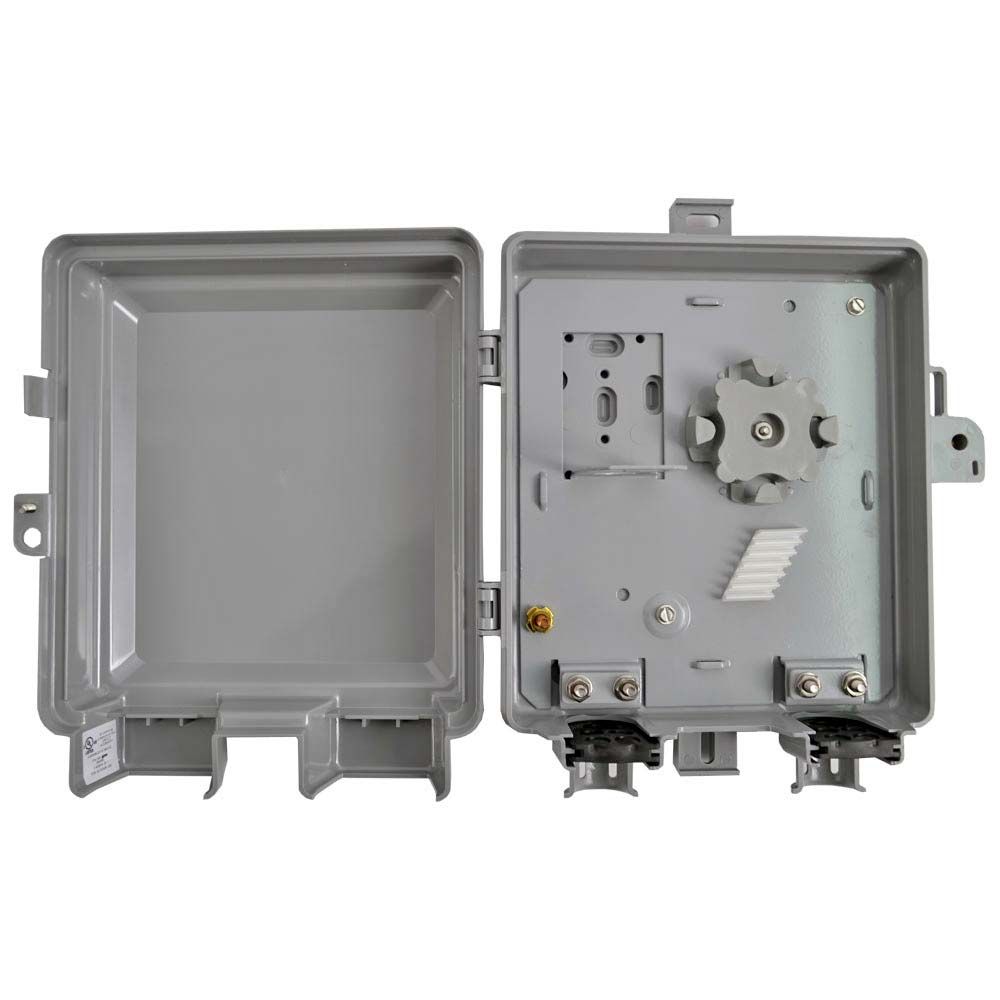

This fiber transition housing provides a secure optical demarcation and interconnection point for fiber-to-the-premises (FTTP) installations. Designed for versatility, this enclosure is suitable for both indoor and outdoor environments, offering robust physical protection for the transition between provider and customer networks while facilitating efficient system testing.
The unit features internal lances for cable management with tie wraps, ensuring organized fiber routing. The backplate includes integrated slack storage guides and mounting clips compatible with both fusion and mechanical splices. Constructed from an engineering-grade thermoplastic, the enclosure is built to withstand harsh outdoor conditions. It supports wall-mount or vertical conduit installations and includes a security screw latch to deter unauthorized access, with an optional locking hasp for enhanced security.
Key Features
-
Versatile Mounting
Designed for installation on walls or vertical conduit, providing flexible deployment options. -
Integrated Slack Management
Backplate features dedicated routing guides for neat and secure storage of excess fiber. -
Splice Protection
Includes clips for mounting fusion or mechanical splices to ensure long-term signal integrity. -
Weather-Resistant Construction
Molded from engineering-grade thermoplastic for durability in demanding outdoor environments. -
Security Features
Equipped with a hex security screw latch and an integrated locking hasp to prevent unauthorized access. -
Cable Anchorage
Internal lances allow for secure fiber cable anchoring using standard tie wraps.
Applications
- Fiber-to-the-Premises (FTTP) demarcations
- Indoor and outdoor network transition points
- MDU and residential fiber installations
Technical Specifications
| Specification | Value |
|---|---|
| Dimensions | 10" x 8.42" x 2.96" |
| Capacity (Adapters) | 2 (SC Adapters) |
| Capacity (Splices) | 12 Fusion Splices |
| External Interface | 1 OptiTap Port |
| Housing Material | Engineering-grade thermoplastic |
| Security | Hex security screw, optional locking hasp |
| Includes | Ground Post |
Frequently Asked Questions
Is the enclosure suitable for outdoor use?
Yes, it is molded from engineering-grade thermoplastic designed to withstand harsh outdoor environments.
Are adapters included?
No, the unit does not come with pre-installed adapters.
How is the enclosure secured?
It includes a hex security screw latch and an integrated hasp for adding a padlock.
What is the maximum splice capacity?
The unit supports up to 12 fusion splices on the internal backplate.
Does this support OptiTap?
Yes, the design accommodates 1 OptiTap interface.
