Overview

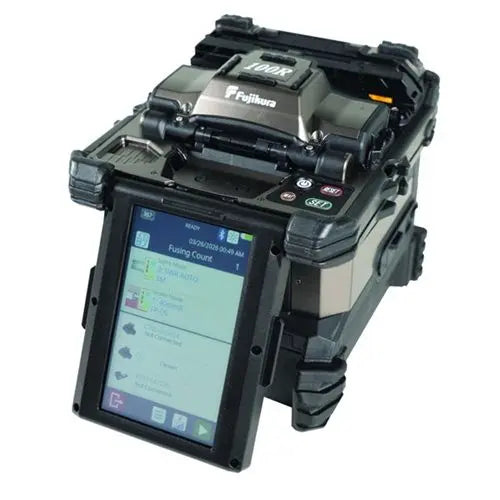

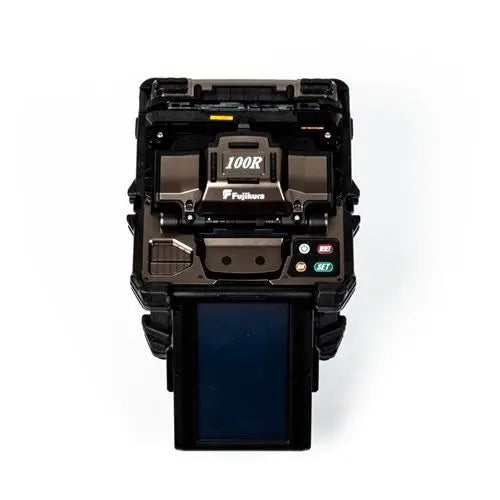

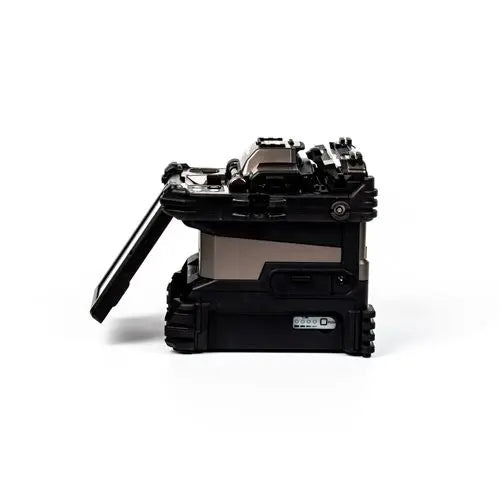

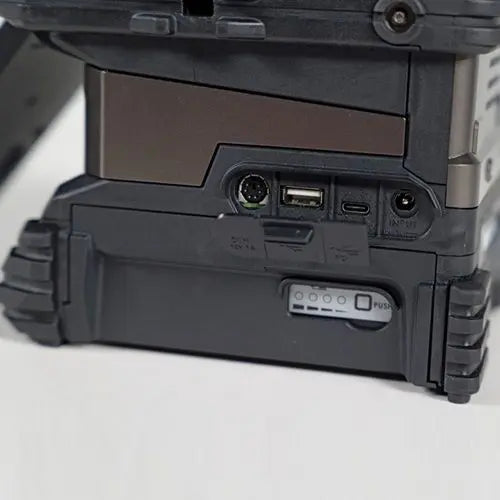

The Fujikura 100R is a mass fusion splicer designed for splicing single fibers and ribbon fibers up to 16 fibers. It is engineered for high-precision operations in data center, metro, campus, and long-haul network installations and repairs.
The unit features Intelligent Alignment Control for automated fiber positioning and gap alignment. It includes field-replaceable V-grooves and utilizes self-cladding alignment with surface melting tension to ensure consistent splice quality. The system is designed for ease of use in field environments, featuring an automated wind protector and tube heater.
Key Features
-
Intelligent Alignment Controls
Automates fiber alignment to reduce operator error and improve splice consistency. -
Auto Placement Correction
Automatically corrects fiber seating for accurate alignment before the fusion process. -
Gap Alignment Correction
Ensures uniform endface gaps between fibers for reliable mass fusion results. -

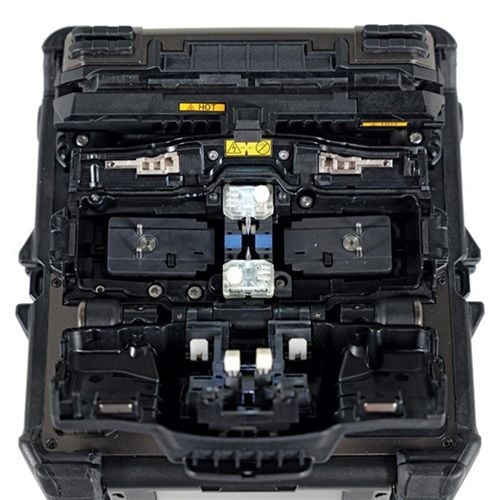

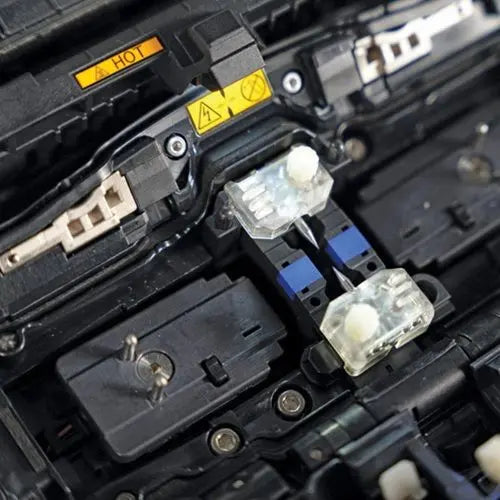

Field-Replaceable V-Grooves
Allows technicians to replace V-grooves in the field, minimizing downtime for maintenance. -
5.0" Touchscreen Interface
Provides a high-visibility, intuitive graphical user interface for simplified operation. -
Automated Operation
Features automatic wind protector, tube heater, and splice start to increase field productivity. -
Bluetooth Connectivity
Enables wireless communication for cleaver tracking and maintenance management.
Applications
- Data center network installation
- Metro and campus fiber network construction
- Long-haul fiber optic network repairs
- Mass ribbon fiber splicing

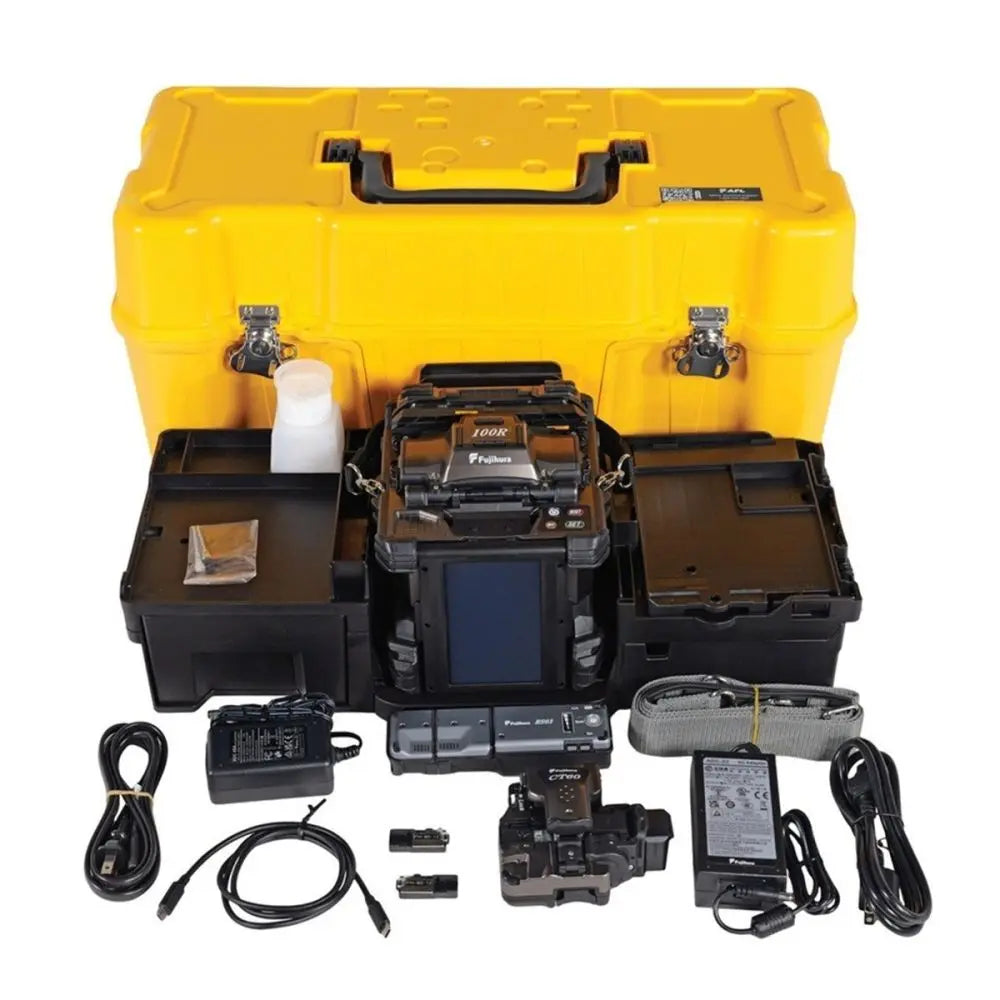

Package Contents
- 100R Fusion Splicer
- CT60 Cleaver
- RS03 Thermal Stripper
- ADC-22 AC Adapter
- ACC-19 AC Cord
- ADC-09A AC Adapter with ACC-09 Cord
- BTR-19 Li-ion Battery
- ELCT2-16C Spare Electrodes
- Spare 12-fiber V-grooves
- FH-80-12 Fiber Holders
- USB Cable
- Alcohol Dispenser
- Quick Reference Guide
- Splicer and Cleaver Tripod Screws

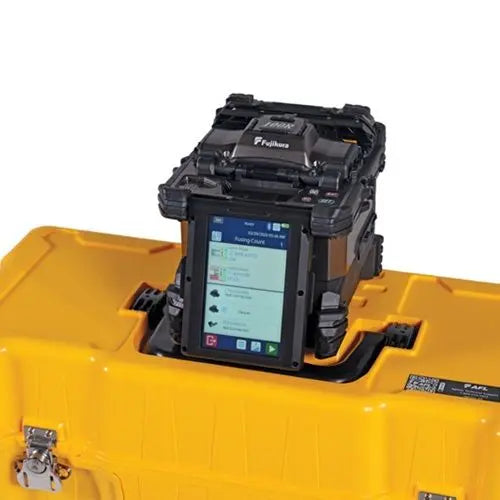

- Transit Case with integrated workstation
- Fusion Splicer Strap
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Fujikura |
| Model | 100R |
| Part Number | S018665 |
| Display | 5" LCD Touch Screen |
| Magnification | 30x (12-ribbon) to 90x (single fiber) |
| Splice Modes | 100 |
| Heat Modes | 30 |
| Memory | 20,000 splices / 100 images |
| Electrode Life | 1,500 splices |
| Warranty | 2 Years |
Frequently Asked Questions
What is the maximum fiber count this unit can splice?
The 100R is capable of splicing single fiber and up to 16-fiber ribbon.
Does this unit include a cleaver?
Yes, the kit includes the CT60 cleaver.
Is the thermal stripper included?
Yes, the RS03 thermal stripper is included in the package.
What is the expected electrode life?
The electrodes are rated for approximately 1,500 splices.
How many splices can the internal memory store?
The internal memory can store up to 20,000 splice records and 100 images.
