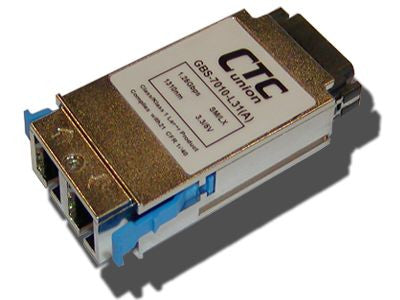

1000Base-SX, multi-mode eXtended Range, 2Km, 1310nm GBIC transceiver
Move your mouse over image or click to enlarge

1000Base-SX, multi-mode eXtended Range, 2Km, 1310nm GBIC transceiver

CTC Union Part No.: GBM-7000-L31

  • $ 88.00 or

Product description
GBIC optical modules are equipped with the industry standard SC optical connector. The capacity ofGBM-7000-L31module is1.25Gbps(Gigabit rate). The transceiver extended range allows operation on either50/125um or 62.5/125um multi-modefiber for up to2Kmdistance. The fiber standard for GBM-7000-L31 is1000Base-SX.
GBIC modules are extremely versatile, working with any active equipment that support the GBIC interface type: Ethernet switches, routers and any other networking equipment. Our GBICs have been tested and found 100% compatible with various Ethernet switches from major manufacturers like: Cisco, Nortel, Extreme, ZyXEL, D-Link or Netgear.
Fiber power budget according to available models
(highlighted model is one available for purchase on this page)

Model Distance Lambda Min. Output (dBm) Sensitivity (dBm) Power Budget (dB)
GBM-7000-S85 550m 850nm -9.5 -18 8.5
GBM-7000-L31 2Km 1310nm -9 -19 10
GBS-7010-L31 10Km 1310nm -9.5 -20 10.5
GBS-7040-L31 40Km 1310nm -4 -24 20
GBS-7050-X55 50Km 1550nm -4 -24 20
GBS-7080-Z55 80Km 1550nm 0 -24 24
GBS-7120-Z55 120Km 1550nm 0 -30 30
GBS-7010-WA 10Km Tx:1310nm Rx:1550nm -9 -21 12
GBS-7010-WB 10Km Tx:1550nm Rx:1310nm -9 -21 12
GBS-7020-WA 20Km Tx:1310nm Rx:1550nm -8 -23 15
GBS-7020-WB 20Km Tx:1550nm Rx:1310nm -8 -23 15
GBS-7040-WA 40Km Tx:1310nm Rx:1550nm -3 -23 20
GBS-7040-WB 40Km Tx:1550nm Rx:1310nm -3 -23 20
GBS-7060-WA 60Km Tx:1310nm Rx:1550nm 0 -24 24
GBS-7060-WB 60Km Tx:1550nm Rx:1310nm -2 -25 23

Product Sheet:
