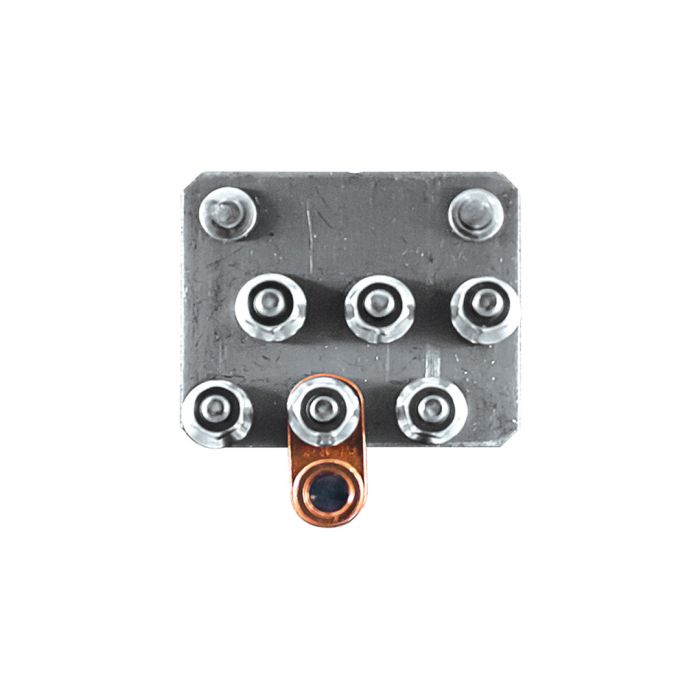

Grounded Locate Plate - (Sold Separately)

Overview

The Grounded Locate Plate is an essential component designed for use in telecommunications infrastructure, specifically engineered to work with terminal boards. It provides a reliable grounding solution for outside plant test stations, ensuring proper electrical continuity and site safety.

This component comes fully shunted with a dedicated copper ground, a design feature that eliminates installation confusion and simplifies the setup process for technicians. It is built for seamless compatibility with all standard test station configurations.

Key Features

• Copper Shunt Integration
  Features a factory-installed copper shunt to streamline grounding requirements during deployment.
• Broad Compatibility
  Designed to integrate effectively with all available test station options.
• Simplified Installation
  Pre-configured design reduces the steps required for site installation and minimizes potential errors.
• Infrastructure Standard
  Maintains compliance with RUS listing requirements for utility and outside plant applications.
• Robust Terminal Mounting
  Specifically engineered for secure, direct mounting to terminal boards in the field.

Applications

• Telecommunications outside plant installations
• Utility test station grounding
• Fiber and copper network site management
• Terminal board assembly upgrades

Technical Specifications

Frequently Asked Questions

What is the purpose of the copper shunt on this plate?
The copper shunt is included to provide a pre-wired ground, which eliminates the need for manual shunting during installation and reduces the risk of incorrect field wiring.

Is this plate compatible with standard test stations?
Yes, it is designed for compatibility with all test station options.

What does the RUS listing signify?
The RUS listing confirms that the product meets the specific standards required for use in projects supported by the Rural Utilities Service, ensuring suitability for utility-grade telecommunications environments.

How does it mount to the system?
The plate is designed to mount directly onto the terminal board.
