The new generation L2+ managed Ethernet switch, GSW-4208CM, is designed for SMB and FTTH networks. The 10G uplink ports relieve the insufficiency of Gigabit links for new high bandwidth consumption applications such as 4K UHD video streaming, WiFi-6 network and cloud service access in the enterprise and SOHO environment.

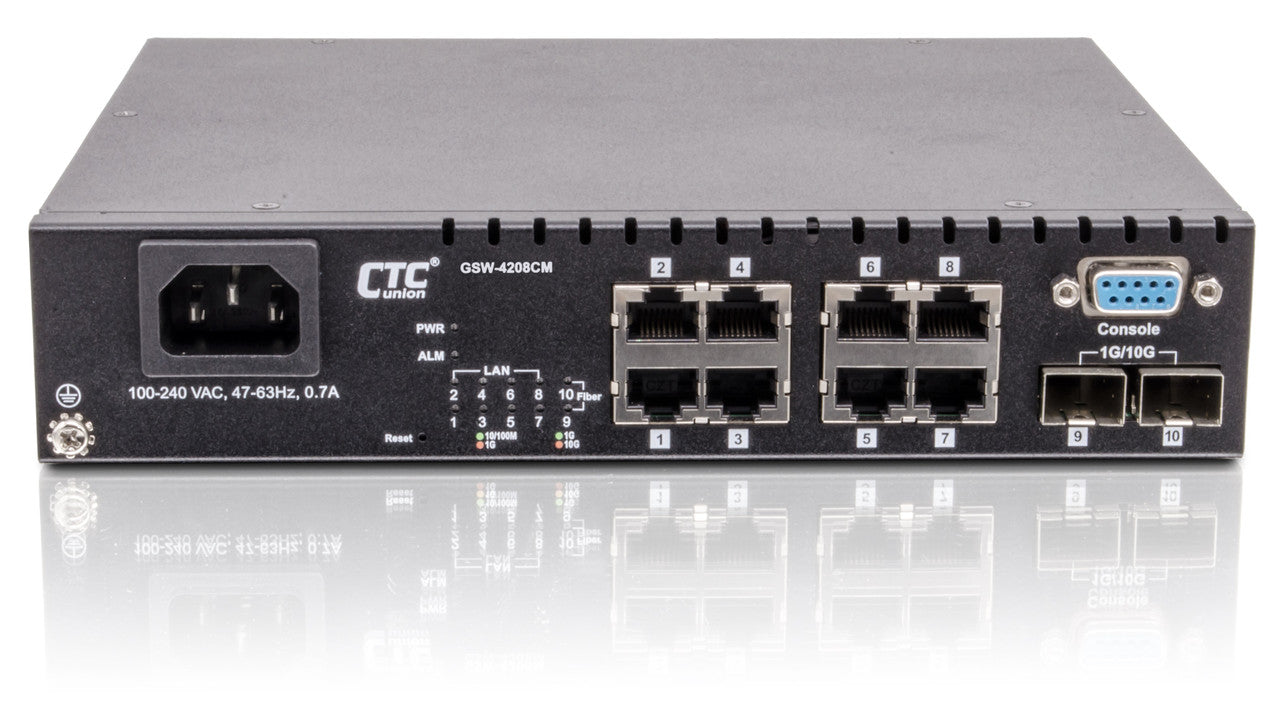

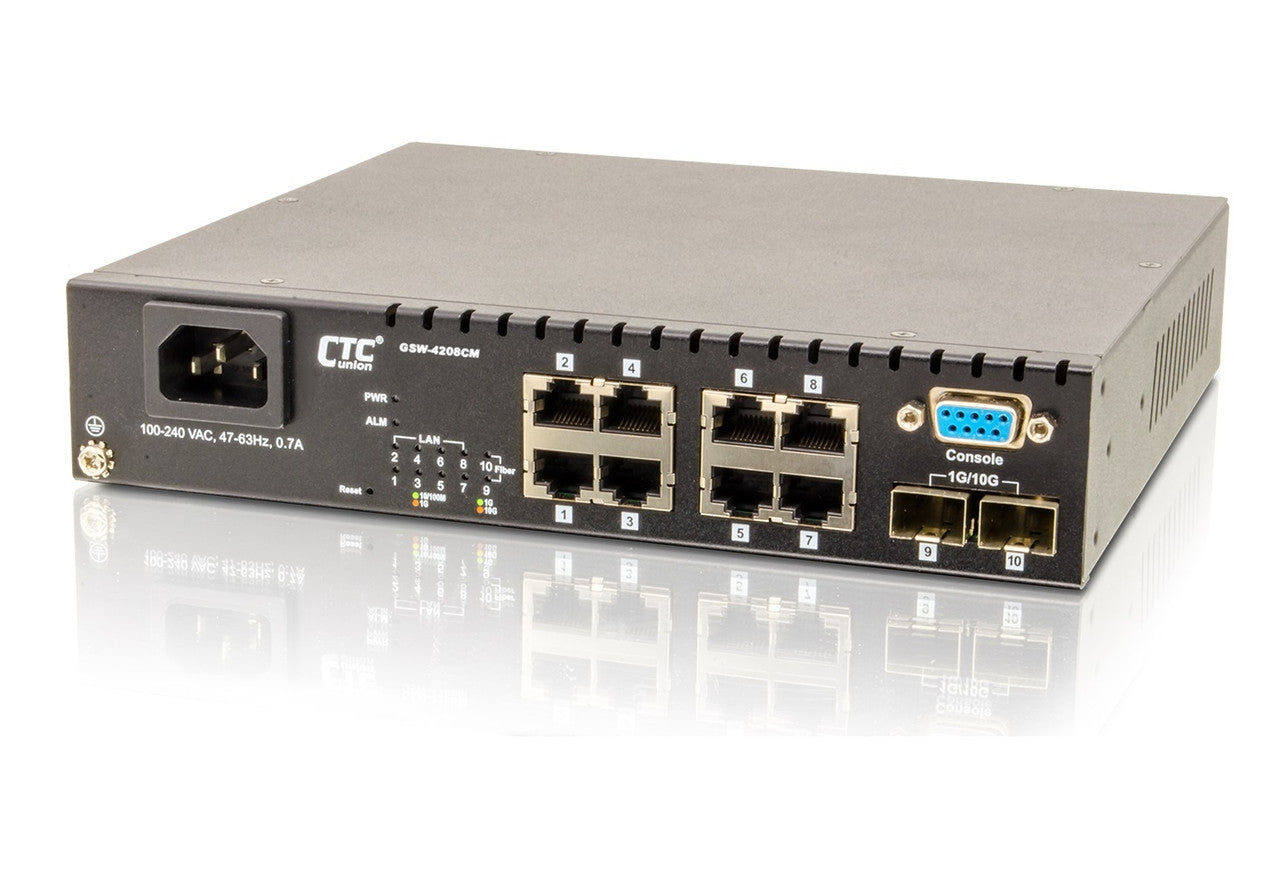

The GSW-4208CM is equipped with 8 Gigabit RJ45 ports and 2x 1G/10G SFP+ based fiber optic ports. It is also a full feature L2+ switch, with high network availability guarantees, robust network access and security, as well as comprehensive QoS in the edge network. Switch delivers benefits of optimal traffic transportation performance and lower ownership cost while maintaining a simple network deployment.

Technical specifications

Interface fiber ports:

• 1G/10Gbps SFP+ × 2

Copper ports:

• 10M/100M/1G RJ45 × 8

Switching Fabric Capacity:

• 68Gbps

Packet forwarding rate:

• 14880pps @10Mbps
• 148800pps @100Mbps
• 1488000pps @1000Mbps
• 3720000pps @2500Mbps

Transmission Method:

• Store and Forward Switching

Packet buffer:

• 8M bits

MAC table size:

• 16K

Jumbo frame size:

• 10240 Bytes

VLAN features:

• IEEE 802.1Q tagged VLAN (4K VLAN groups)
• IEEE 802.1ad QinQ VLAN
• Voice VLAN; MAC based VLAN; Protocol based VLAN
• IP subnet based VLAN
• Private VLAN for port isolation; VLAN translation
• GVRP (GARP VLAN registration protocol)

Link aggregation:

• Static trunk (SA, DA, IP, TCP/UDP port)
• IEEE 802.3ad LACP, 5 LACP trunk groups Max,
• 8 port Max. per LACP trunk

L2 switching protection:

• IEEE 802.1D STP/IEEE 802.1w RSTP/IEEE 802.1s MSTP Loop Protection

QoS features:

• Hard wired IEEE 802.1p 8 priority queues per port
• Traffic scheduling based on strict/WRR priority
• CoS based traffic classification on switch port, VLAN ID, DSCP, TCP/UDP port
• IEEE 802.1p priority tag remarking; DSCP remarking
• Per Port/Queue based ingress/egress rate limit in steps of 100kbps
• IEEE 802.3x flow control
• Multicast/Broadcast/Unicast storm control with flooding control

Security:

• Static port security (MAC based)
• Per port limited MAC learning
• Port based/MAC base/single/multiple IEEE 802.1x access control
• 256 ACL rules based on L2~L4 information
• RADIUS/TACACS+ authentication
• HTTPs & SSH v2
• IP/MAC binding
• IP source guard & ARP inspection

IP Multicasting:

• IGMP snooping v1/v2/v3, IGMP proxy reporting
• MLD snooping v1/v2
• IGMP fast leave
• IGMP query
• IGMP filtering/throttling
• MVR (Multicast VLAN Registration)

Management:

• WebGUI/Telnet CLI interface
• SNMP v1/v2c/v3
• RMON I (1,2,3,9 groups) & RFC1213 MIB II
• Dying gasp in trap message
• DHCP client/relay/snooping/relay option 82
• TFTP/HTTP based firmware and configuration upgrade
• Port mirroring
• Event syslog server
• DNS client/proxy
• DHCP auto provisioning (option 55/60/66/67/254)
• NTP client
• UPnP
• IPv4/IPv6 management
• SFF-8472 DDMI
• IEEE 802.1ab LLDP

Power Input:

• AC power input (100~240V) ; -36 ~ -60 DC power input

Operating Temperature:

• 0~50 degree C

Storage Temperature:

• -25~70 degree C

Humidity:

• 5%~95% (non-condensing)

Dimensions:

• 215 × 190 × 44 mm (W×D×H)

Certifications:

• CE, FCC class A
