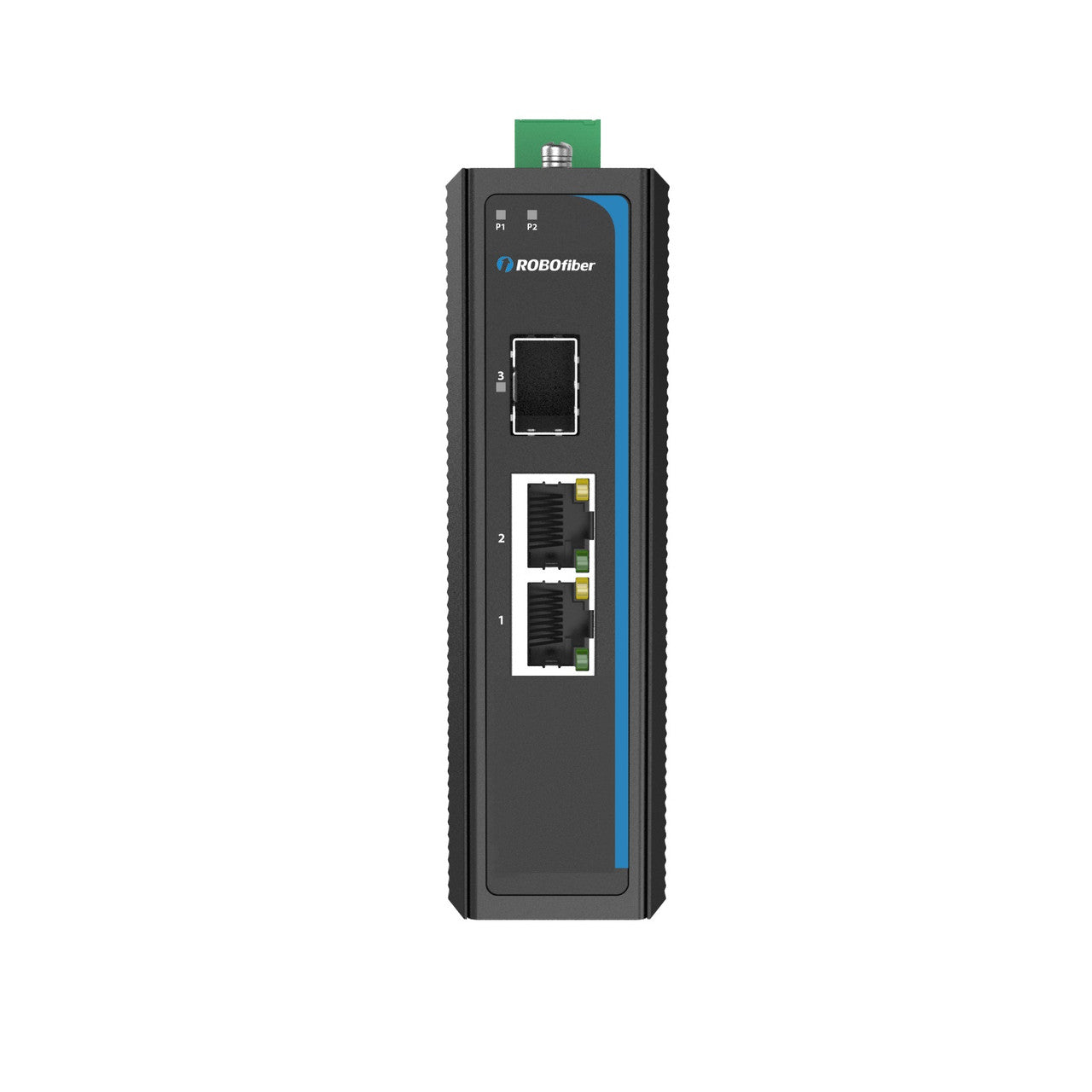

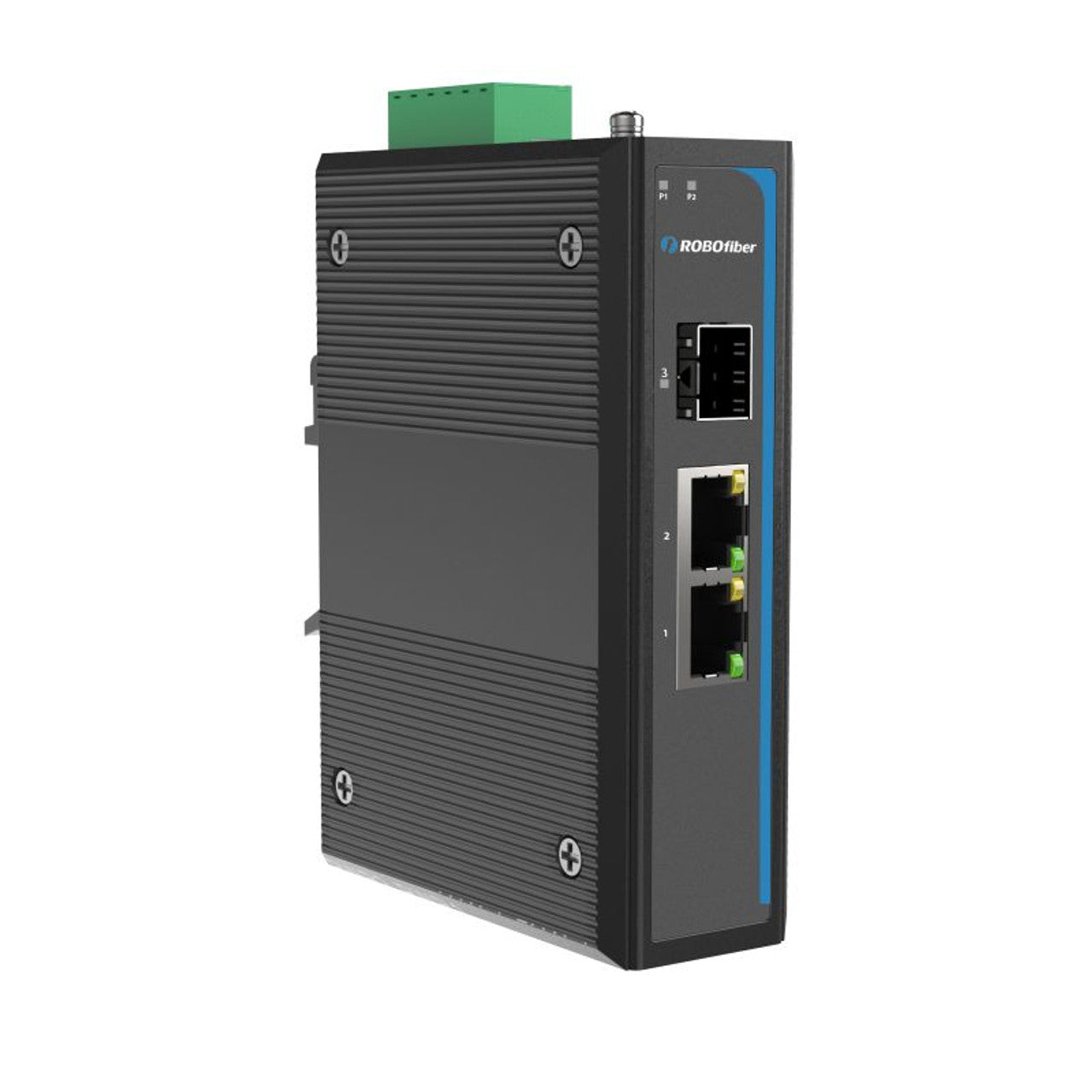

HC-1002-SFP-PSE-BT - 2x RJ45 +1x SFP ports Gigabit Ethernet Industrial fiber switch with 180W of PoE 802.3bt, DIN rail mount, -40 to +75 Celsius
HC-1002-SFP-PSE-BT - 2x RJ45 +1x SFP ports Gigabit Ethernet Industrial fiber switch with 180W of PoE 802.3bt, DIN rail mount, -40 to +75 Celsius
|
UPC:
|
811704017702
|
|
INTERFACE TYPE:
|
Fast Ethernet
Gigabit Ethernet
|
|
MANAGEMENT:
|
un-managed
|
|
POWER TYPE:
|
redundant
DC48V input embedded PSU
|
|
CONNECTORS:
|
SFP
RJ45 (Ethernet)
|
|
CABLE TYPE:
|
9/125um single-mode
50/125um multi-mode
62.5/125um multi-mode
|
|
TYPE:
|
Layer 2
Industrial(hardened)
|
|
FEATURES:
|
DIN rail mountable
|
|
POE OUTPUT:
|
90W per port
|
Product description
The HC-1002-SFP-PSE-BT is a 3-port Gigabit Ethernet switch with 2-port 10/100/1000Base-T(X) and 1-port 100/1000Base-X SFP slot for optical fiber providing stable and reliable transmission for Industrial Ethernet connections. HC-1002-SFP-PSE-BT is hardened for extreme operating temperatures: -40 to +75 Celsius and also provides IEEE 802.3bt compatible (90W) per UTP port PoE power for PoE enabled clients. The total PoE power budget is 180W. Industrial Switches are housed in IP40 rated rugged metal housings designed to operate in difficult conditions, including mechanically and electrically extreme environments. All Industrial switches have strong surge protection (4kV~8kV) per port, depending on models and strict compliance with IEC and EN standards for industrial grade equipment.

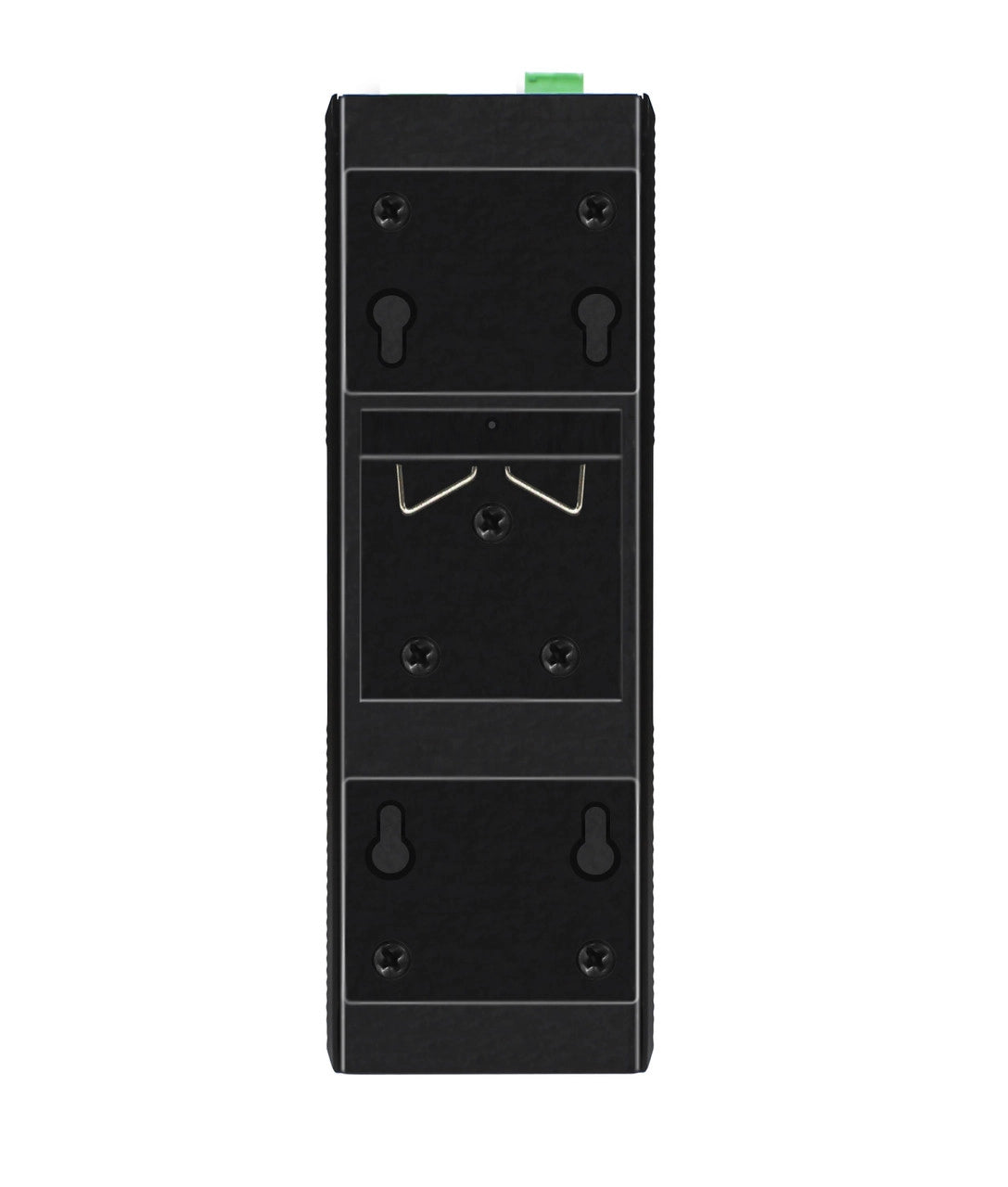

All Industrial Ethernet switches include a DIN rail mounting kit and wall mounting kit.
Features

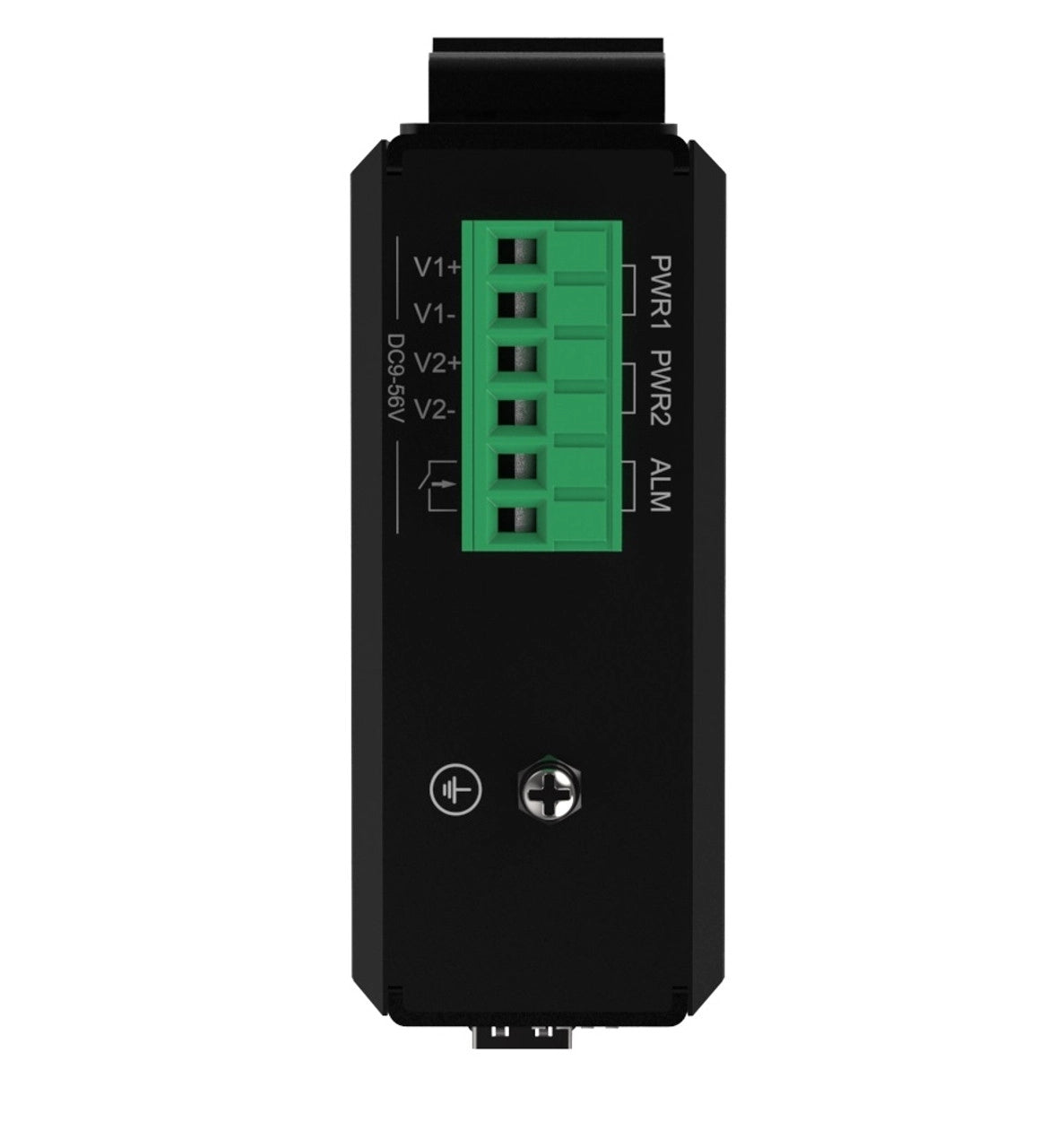

- Redundant dual DC input Power 48VDC (48~56V)
- IP40 rugged metal housing
- Wide operating temperature -40~75°C
- UL508, CE, FCC
- Industrial Grade EMS, EMI, EN61000-6-2, EN61000-6-4 Certified
- 2-Port 10/100/1000Base-T(X) copper ports and 1x 100/1000Base-X SFP slot
- 180W total PoE power budget: up to 90W IEEE 802.3af/at/bt per port
